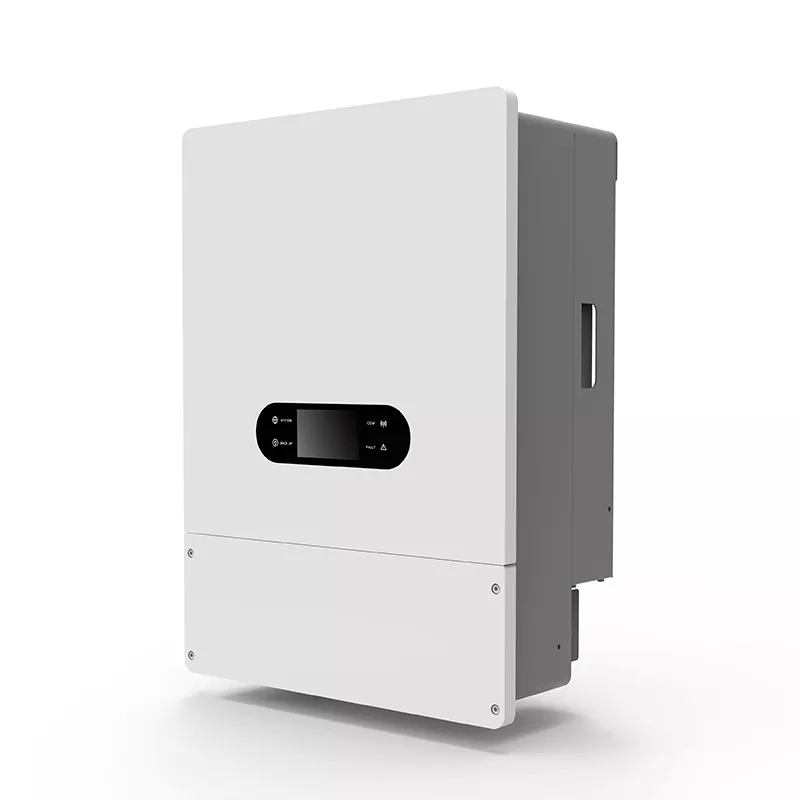

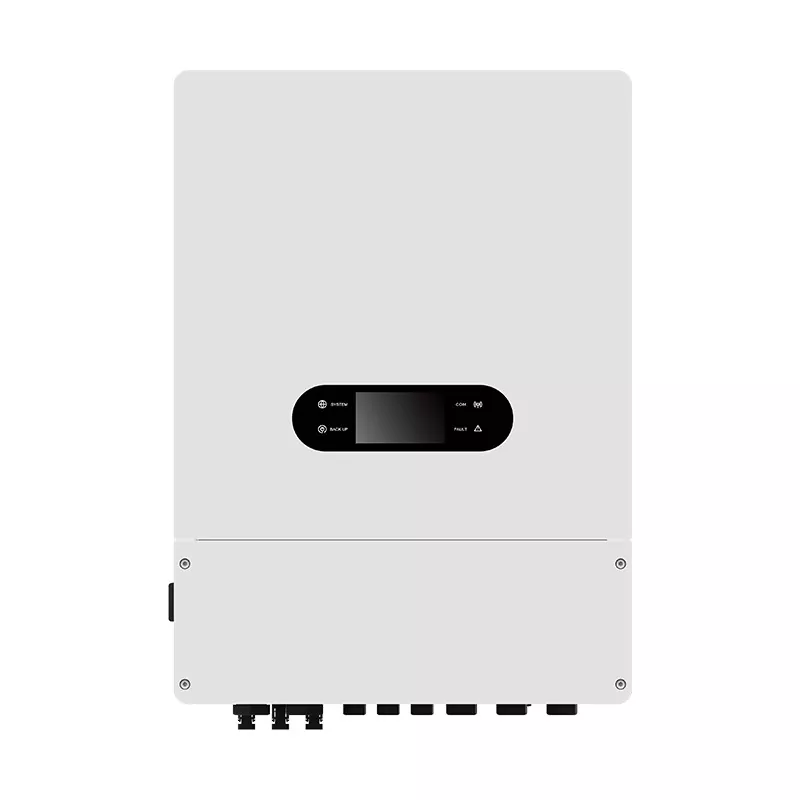

The 3 phase 12KW hybrid Solar Inverter (SUN-12KS48P3) is designed for European and international markets, integrating PV charging, battery storage, grid feed-in, and off-grid backup capabilities into a single unit.
Its unique design allows for a 200% PV oversizing ratio, enabling the connection of more PV modules to ensure battery charging and meet off-grid load demands even in low-light conditions.
It features a built-in intelligent BMS communication interface for seamless integration with mainstream lithium battery systems (such as Pylontech and BYD). The product complies with multiple international grid-connection standards, including NB/T32004, IEC62109, and EN50549-1, making it suitable for factories, farms, office buildings, and remote areas requiring three-phase power.
With a maximum charge/discharge current of 250A and off-grid peak power supporting 200% overload (for 15 seconds), it can handle surge loads from motors and compressors. It boasts a peak efficiency of 98%, supports generator input and remote monitoring, and provides stable, reliable energy conversion for three-phase loads.
| Model | SUN-12KS48P3 |
|
Parameter |
Value |
|
Battery input data |
|
|
Battery Type |
Lithium or lead acid battery |
|
Rated battery voltage |
48V |
|
Maximum charging voltage |
<60 (Configurable) |
|
Maximum charge/discharge current |
250A |
|
PV input data |
|
|
Maximum DC input power |
24000W |
|
Maximum DC input voltage |
1000V |
|
MPPT Operating voltage range |
200~800V |
|
Starting voltage |
150V |
|
Maximum input current |
36/18A |
|
MPPT number |
2 |
|
AC output parameters (On-Grid) |
|
|
Maximum output apparent power |
13200W |
|
Rated output voltage |
380/400V |
|
Rated output frequency |
50/60Hz |
|
Max output current |
20A |
|
Output power factor |
1 (-0.8 leading~+0.8 lagging) |
|
AC output parameters(Off-Grid) |
|
|
Rated output apparent power |
12000W |
|
Maximum output apparent power |
>200%,15sec |
|
Rated output voltage |
380/400V |
|
Rated output frequency |
50/60Hz |
|
Max output current |
20A |
|
Efficiency |
|
|
Max efficiency |
98% |
|
Max efficiency |
94.5% |
|
Europe efficiency |
97.5% |
|
Protection |
|
|
Peak efficiency |
98% |
|
Max. MPPT efficiency |
99.9% |
|
Protection |
|
|
PV input reverse polarityprotection |
Yes |
|
PV insulation resistance detection |
Yes |
|
Residual current detection |
Yes |
|
Output over current protection |
Yes |
|
Output over current protection |
Yes |
|
Output over voltage protection |
Yes |
|
Basic data |
|
|
Operation temperature |
-25°C~60°C (frequency-decreasing above 45°C) |
|
Storage temperature |
-30~65°C |
|
Relative humidity |
0~95% |
|
Working altitude |
≤4000m (frequency-decreasing above 2000m) |
|
Cooling |
Intelligent forced air cooling |
|
Noise |
<55db |
|
Weight |
38kg |
|
Dimensions (W*H*D) |
475*683*256mm |
|
Protection class |
IP66 |
|
Topology |
HF isolation(Battery side) |
|
Standard |
|
|
Safety standard/EMC standard |
NB/T32004-2018, IEC62109, IEC61000, IS16169 & IS16221(BIS) |
|
Grid-connected standard |
IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtinie R25, UNE217001/2, Ordinace No.140 |
|
Other standard |
IEC61683, IEC62116, EN50530, IEC60068 |

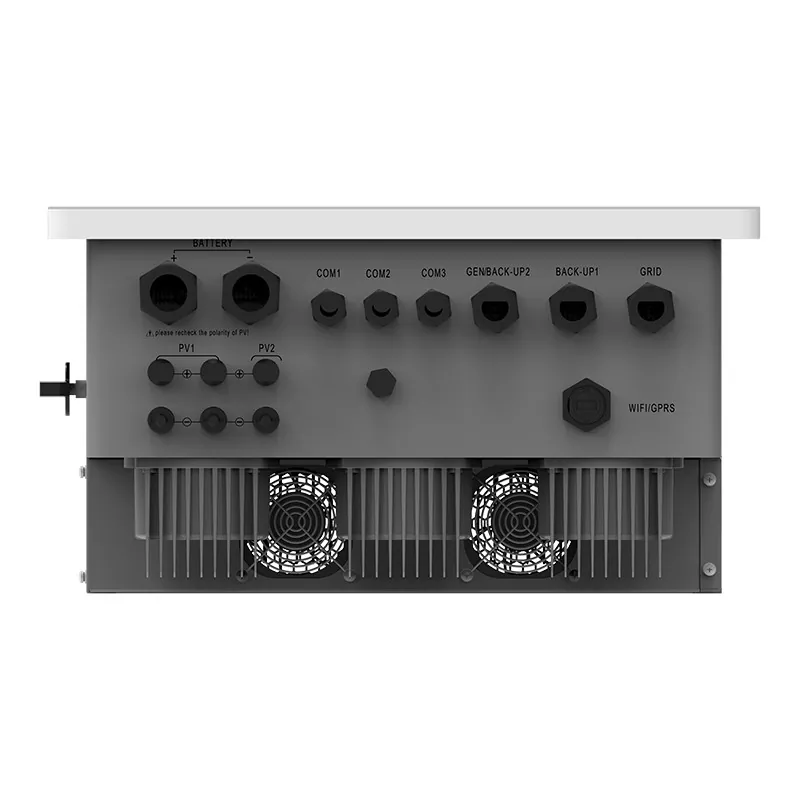

Dual MPPT channels (max. input current 36A/18A) with a wide operating voltage range and low start-up voltage; perfectly compatible with high-power 18A PV modules to enhance power generation efficiency in low-light conditions.
Maximum charge/discharge current of up to 250A, supporting rapid charging and discharging to meet high energy throughput requirements. Rated battery voltage of 48V; compatible with both lithium and lead-acid batteries. 3. 200% Off-Grid Overload Capacity
In off-grid mode, peak power can reach 200% of the rated power for 15 seconds, easily starting inductive loads such as three-phase motors, air conditioners, and water pumps.
The 3 phase 12KW hybrid Solar Inverter supports grid-tied feed-in and independent off-grid operation, with configurable modes (self-consumption, peak-valley arbitrage, backup power priority).
Supports generator integration; features built-in anti-backflow and anti-islanding protection. Communicates with the BMS via RS485, CAN, and other interfaces for real-time battery status monitoring.
Includes PV reverse polarity protection, insulation impedance detection, leakage current detection, and output over-voltage/over-current/short-circuit protection, ensuring a high level of safety.
Suitable for small factories, commercial complexes, and office buildings; utilizes peak-valley electricity price differences to reduce costs while serving as backup power to ensure operational continuity.
Provides stable three-phase power for farms, mining sites, and islands without grid coverage by integrating with PV arrays and battery packs.
Ideal for homes or estates with three-phase PV systems; prioritizes the use of solar power, with excess energy stored in batteries or fed into the grid.
Automatically starts a generator to supplement power during prolonged periods of overcast or rainy weather, ensuring uninterrupted, round-the-clock power supply for off-grid systems.
KTAC offers OEM/ODM services for the GA Series inverter, including:
1. Custom enclosure color and logo printing
2. BMS protocol tuning for third-party batteries
3. Parameter presets (e.g., charge voltages, output frequency)
4. Packaging design and multilingual user manuals
Contact our technical team for a tailored solution.
Our products are manufactured under a strict quality control system and have been tested by third-party authoritative institutions to ensure their safety, reliability, and compliance with global market entry requirements.
GB/T 19001-2016 idt ISO9001:2015 – Certified manufacturing plant
CE – European market (LVD and EMC directives)
LVD – Compliance with the Low Voltage Directive
EMC – Compliance with Electromagnetic Compatibility
IEC62109 – Safety standard for photovoltaic system power converters
IEC61000 – Electromagnetic Compatibility standard
UN38.3 – Lithium battery transportation safety (air transport/sea transport/land transport)
NB/T32004-2018 – China's photovoltaic grid connection standard
EN50549-1 – European grid interconnection requirements
VDE-4105 – German grid connection standard
NRS-097-2-1 – South African grid specification
IS16169 & IS16221 (BIS) – Indian photovoltaic inverter standard
Over 20 valid patents, covering inverter topology, MPPT algorithms, BMS communication and thermal management technologies
All certifications and test reports can be provided upon request. For compliance requirements in specific markets, please contact our technical team.
Yes, this series supports parallel connection of up to 6 units; please consult our technical support team for details.
Yes. The SUN-12KS48P3 is a three-phase inverter with a rated output voltage of 230/400V (50/60Hz), complying with low-voltage grid standards in Europe and most other countries.
20A at 230V corresponds to approximately 4.6kW, yet the table lists an off-grid rated power of 1200W (likely a typo for 12kW). In reality, the off-grid rated power of the 12KS48P3 is 12kW, corresponding to a current of approximately 30A (per phase). Please refer to the nameplate or the latest manual for accurate specifications.
3 phase 12KW hybrid Solar Inverter features built-in RS485 and CAN interfaces and supports mainstream lithium battery protocols (such as Pylontech, BYD, LG, AlphaESS, etc.), with compatibility achieved through BMS parameter configuration.
