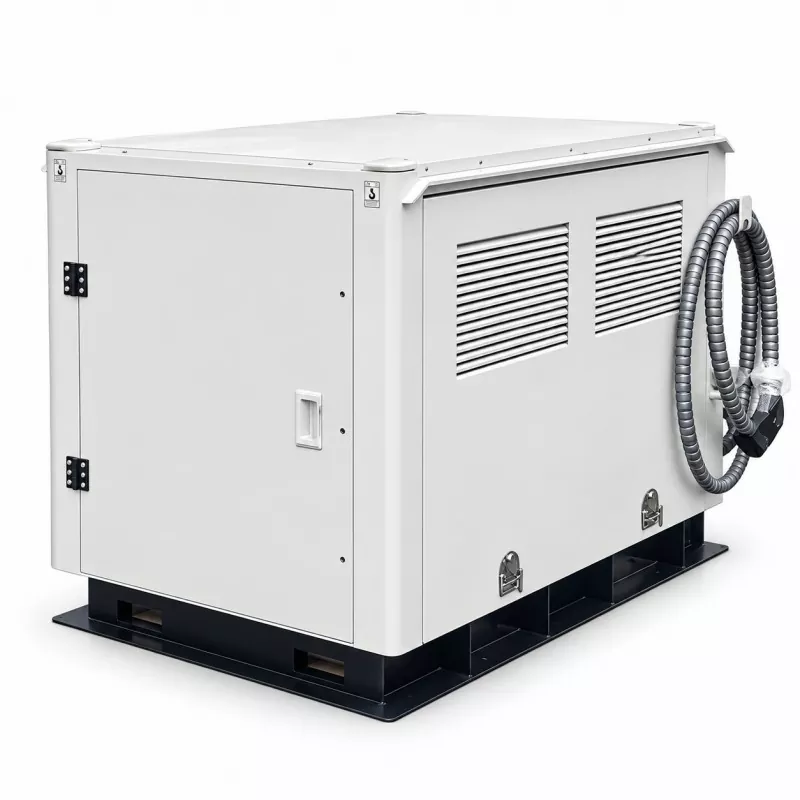

·Integrated Mobile Energy Storage & Charging: The X200120 combines a 200kWh LiFePO4 battery, EV fast charging, multi-source recharging, and AC power supply in a single transportable platform. Unlike fixed charging stations, it can be deployed wherever charging or temporary power is required without permanent infrastructure.
·Safe LiFePO4 Technology with Liquid Cooling: The system utilizes highly stable Lithium Iron Phosphate (LiFePO4) chemistry, eliminating thermal runaway risks. The energy storage liquid cooling system ensures effective thermal management during charging and discharging across the operating temperature range (charge: 0°C to 60°C; discharge: -10°C to 60°C). The battery achieves at least 6,000 cycles at 80% DOD.
·Three Flexible Recharge Methods: The battery can be replenished from 400Vac grid input (3P+N+PE), a GB/T DC fast charging station, or photovoltaic input up to 40kW. This multi-source capability allows operators to adapt to different site conditions and reduce dependence on a single charging source.
·Dual GB/T EV Charging Output: The X200120 provides two GB/T charging guns for flexible EV charging. The specification defines a DC output range of 200–1000VDC, up to 250A DC output current, and 7-meter charging cables. Each gun delivers up to 60kW, with a single gun maximum output power of 120kW.
·60kW AC Power Supply Capability: In addition to EV charging, the integrated inverter provides up to 60kW total AC output, including one 16A single-phase output and three-phase 32A and 63A outputs. This enables the unit to support temporary electrical loads and backup-power applications.
·Intelligent Operation & Connectivity: A 10-inch English touch screen provides local operation with touch start. Optional OCPP 1.6J support enables integration with compatible charging management platforms. The modular battery architecture simplifies installation and servicing.
·Comprehensive Safety Protection: The IP54 cabinet includes insulation detection, overcurrent, overvoltage, SOC, short-circuit, over-temperature, emergency-stop, and fire-extinguishing protections, ensuring safe operation in diverse environments
· Emergency EV Charging Rescue (X200120): Deploy the unit to roadside, fleet, or site locations to provide mobile charging when an EV cannot reach a fixed charging station. The 200kWh capacity and dual GB/T guns enable rapid deployment for emergency situations.
·Door-to-Door Charging Service (X200120): Suitable for mobile charging operators serving residential, commercial, or fleet customers at the point of demand. The transportable design and 7-meter cables allow flexible service delivery.
·Temporary Charging Capacity (X200120): The system can supplement charging capacity during peak periods, events, temporary works, or locations where permanent charging infrastructure is not yet available. With 200kWh storage, it provides extended charging sessions.
·Temporary and Backup AC Power (X200120): The integrated 60kW AC inverter output supports temporary electrical loads or backup-power needs where a mobile energy source is preferable to a permanently installed system. Single-phase and three-phase outputs accommodate various equipment.
· Solar-Assisted Mobile Energy Supply (X200120): With PV input up to 40kW, the X200120 can use available solar generation as one of its recharge sources, reducing dependence on the grid or DC fast charging.
·Transportable Platform: The X200120 measures 2310 × 1350 × 1385mm (without trailer) and weighs approximately 2470kg (without trailer). It can be positioned wherever charging or temporary power is needed, without permanent installation.
·odular Battery Architecture: The modular battery design simplifies installation and servicing, allowing for easier maintenance and potential capacity adjustments.
·Multi-Source Recharging Flexibility: With three recharge methods—AC grid, GB/T DC fast charging station, and PV input—the system adapts to available infrastructure, making it suitable for various sites and operating conditions.
·Emergency EV Charging Rescue: Provide mobile charging for EVs stranded on roadsides or in fleet operations where fixed charging is unavailable.
·Door-to-Door Charging Service: Serve residential, commercial, and fleet customers at their location, offering convenient mobile charging.
·Temporary Charging Capacity: Supplement charging capacity during peak periods, events, or temporary works, and support locations awaiting permanent infrastructure.
·Temporary and Backup AC Power: Supply 60kW AC output for temporary electrical loads, construction sites, outdoor events, or backup power needs.
·Solar-Assisted Mobile Energy Supply: Utilize up to 40kW PV input to recharge the battery, reducing reliance on grid or DC fast charging and supporting green energy initiatives.
With over 20 years of continuous power supply manufacturing experience (since 2004), KTAC has built a reputation for quality, reliability, and innovation. Our manufacturing foundation includes:
·3 factories with over 8,000 m² of production floor
·100+ professional staff including dedicated QA and after-sales engineers
·Export to 30+ countries across Asia, Africa, Europe, and the Americas
·Trusted clients including Tier-1 distributors and reputable companies worldwide
We support OEM/ODM services including custom enclosure color, logo printing, BMS protocol tuning for third-party batteries, parameter presets, and packaging design. Every energy storage battery we manufacture is built to deliver years of dependable service.
A: It uses a 200kWh LiFePO4 battery system with liquid cooling. The specification lists a cycle life of at least 6,000 cycles at 80% DOD.
A: The system supports three recharge methods: 400Vac grid input (3P+N+PE), a GB/T DC fast charging station, and PV input up to 40kW.
A: Yes. The specification lists double-gun GB/T charging output. Each gun is 60kW under the DC charging-standard entry.
A: The specified DC output voltage range is 200–1000VDC, with DC output current from 0 to 250A.
A: Yes. The specification lists 60kW total AC inverter output, including one 16A single-phase output and three-phase 32A and 63A outputs.
A: OCPP 1.6J is listed as an optional function. The standard operating interface is a 10-inch English touch screen with touch start.
A: The cabinet is rated IP54.
A: Without the trailer, the unit measures 2310 × 1350 × 1385mm and weighs approximately 2470kg.
A: The specification lists insulation detection, overcurrent, overvoltage, SOC, short-circuit, over-temperature, emergency-stop, and fire-extinguishing protection.
