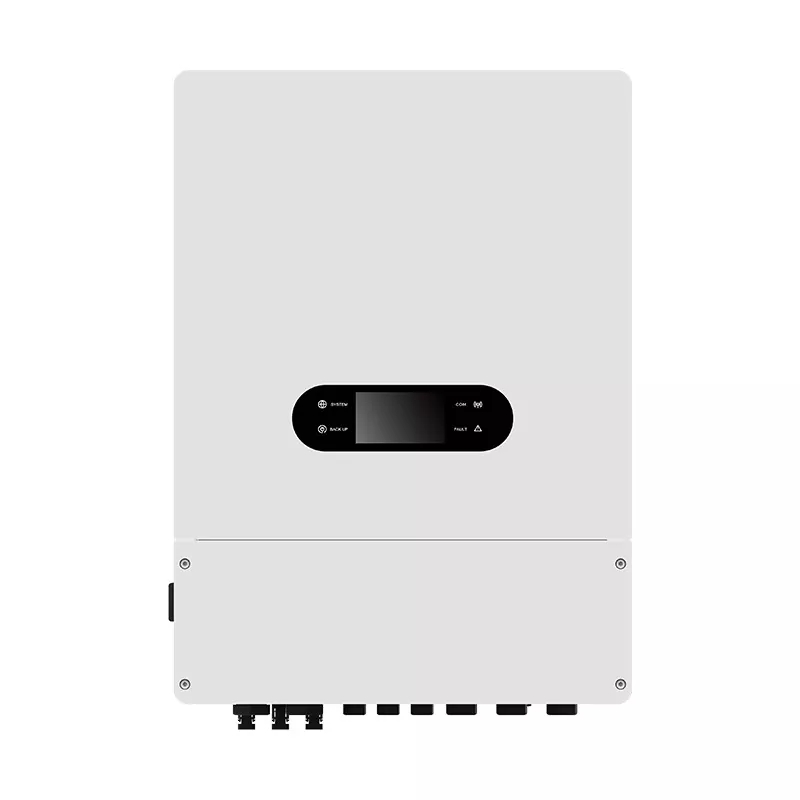

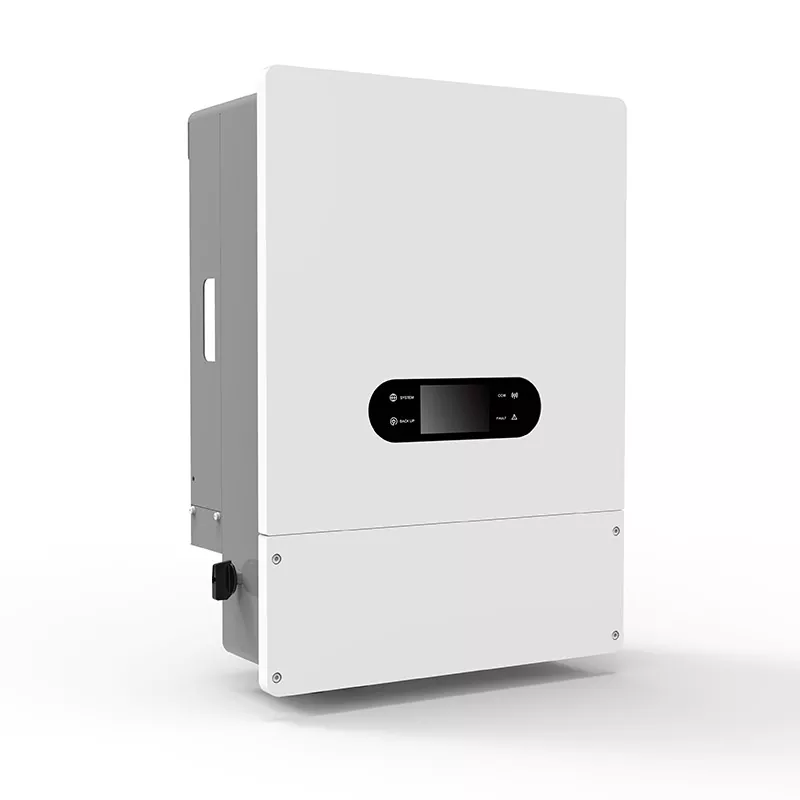

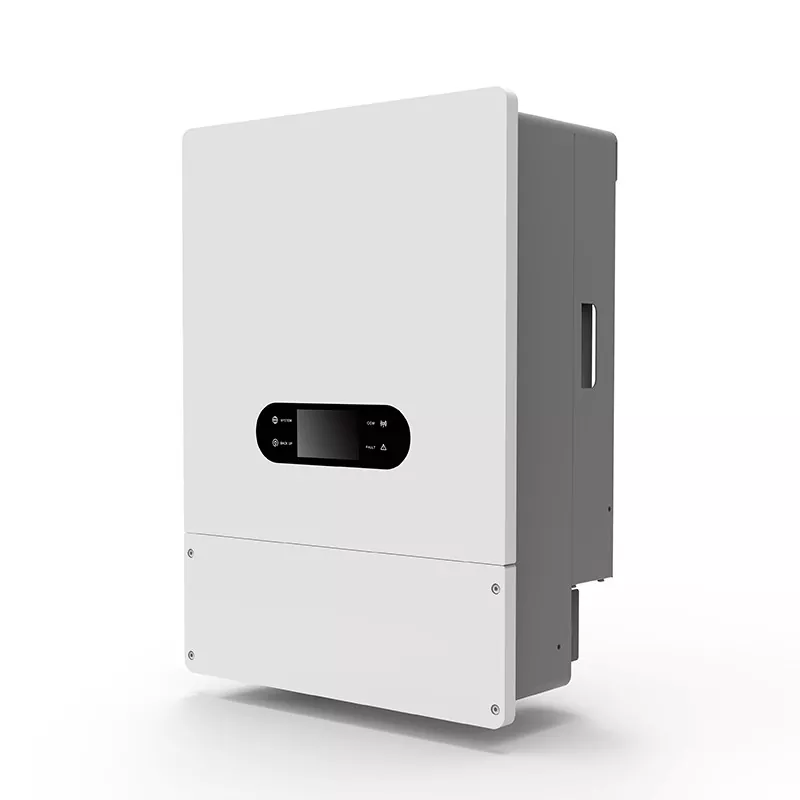

3 Phase 10kW Hybrid Solar Inverter

The SUN-10KS48P3 three-phase hybrid inverter delivers a rated on-grid output of 11,000W and an off-grid rated output of 10,000W, with a surge capacity exceeding 200% for up to 15 seconds. Featuring an IP66-rated, fully sealed enclosure weighing 43kg and measuring 475×750×256mm.

Built with a high-frequency isolation topology and a safe 48V low-voltage battery architecture, the SUN-10KS48P3 delivers the power of a commercial-grade system with the safety of a low-voltage design. The 3 Phase 10KW Hybrid Solar Inverter supports seamless on-grid and off-grid switching, ensuring uninterrupted power for critical loads during grid outages.

It is ideally suited for whole-home energy independence, small to medium commercial facilities, telecommunications infrastructure, agricultural operations, and large-scale off-grid systems.

Core Advantages

1. Power Density

At 43kg for 10,000W off‑grid output, the SUN-10KS48P3 delivers 232W per kilogram. This means lower shipping costs, simpler wall‑mounting without reinforced structures, and more units per shipping container directly reducing your project logistics and installation budget.

2. 250A Charge/Discharge

With 250A maximum charge/discharge current, the system supports battery banks of 300Ah and above. A 400Ah 48V battery bank charges from 20% to 80% in under 1.5 hours enabling full daily cycling even in regions with limited sunlight hours.

3. Up to 36A MPPT Input

Each MPPT channel supports up to 36A input current (2‑MPPT configuration), matching large‑format 210mm/182mm PV modules without current clipping. This reduces string count and cable losses by approximately 15‑20% compared to 18A MPPT designs.

4. 200% Overload for 15 Seconds

Off‑grid peak overload capacity reaches 200% of rated power for 15 seconds. This starts 7.5kW inductive loads compressors, pumps, elevators with startup currents 3‑5× higher than running current, eliminating nuisance tripping during motor startup.

5. 98% Peak Efficiency

At 98% peak efficiency and 97.5% European efficiency, the inverter loses only 2% of input energy. For a 10kW system operating 1,500 full‑load hours annually, this efficiency level saves approximately 300‑500 kWh per year compared to 95% efficient inverters translating into quantifiable ROI improvement.

6. IP66 All‑Weather Enclosure

Rated IP66, the unit is fully dust‑tight and protected against powerful water jets. External wall, carport, or rooftop installation preserves indoor floor space  eliminating the need for dedicated equipment rooms. Operating temperature range spans ‑25°C to +60°C, covering 95% of the world's inhabited regions without climate‑controlled enclosures.

7. Three-Phase Unbalanced Output

The 3 Phase 10KW Hybrid Solar Inverter supports unbalanced three‑phase output, allowing each phase to independently supply its connected single‑phase loads without derating the entire system. In real‑world residential and commercial installations where phase loading is rarely perfectly balanced, this feature delivers 15‑30% more usable capacity compared to inverters that require balanced loads.

Safety and Intelligent Features

1. Full Suite of Protection Functions

The SUN-10KS48P3 incorporates comprehensive protection features, including PV reverse polarity protection, insulation resistance detection, residual current monitoring, over-current protection, short-circuit protection, over-voltage protection, anti-islanding protection, surge protection, and an integrated DC switch. These multiple layers of protection ensure safe operation under all conditions, safeguarding both the inverter and connected equipment.

2. 48V Low-Voltage Safety Architecture

Operating at a 48V nominal battery voltage (configurable up to 60V), the system employs a safe low-voltage architecture that significantly reduces the risk of electrical hazards. The battery-side high-frequency isolation provides galvanic isolation between the battery and the AC side, further enhancing system safety. This low-voltage design is particularly important for installations where maintenance personnel may not have specialised high-voltage training.

3. Intelligent Battery Management Integration

With CAN and RS485 communication interfaces, the SUN-10KS48P3 integrates seamlessly with lithium battery BMS systems, enabling real-time battery monitoring, adaptive charging algorithms, and cell balancing. This intelligent integration extends battery life, optimises system performance, and provides users with comprehensive visibility into battery health and status.

4. Remote Monitoring & Smart Energy Management

The inverter supports remote monitoring via Wi-Fi or 4G connectivity, allowing users to track system performance, adjust operating parameters, and receive alerts from anywhere in the world. The system’s smart energy management capabilities—including time-of-use scheduling, peak shaving, and load management—enable users to optimise energy consumption and maximise savings.

5. Quiet Operation

With a noise level below 55dB, the SUN-10KS48P3 operates quietly despite its high power output, making it suitable for noise-sensitive environments such as residential areas, offices, and retail spaces.

Product Parameter

Key Application Scenarios

1. Whole-Home Energy Independence

For larger homes with significant energy consumption—including electric vehicle charging, air conditioning, electric heating, and multiple appliances—the SUN-10KS48P3 provides the power capacity needed to achieve true energy independence. The 10kW output and 250A battery charging capability support whole-home backup and daily self-consumption, enabling homeowners to disconnect from the grid during peak tariff periods or even achieve full grid independence with adequate solar and battery sizing.

2. Commercial & Industrial Facilities

Small to medium commercial facilities—including retail stores, restaurants, office buildings, and light industrial operations—benefit from the SUN-10KS48P3’s high power output and robust construction. The inverter supports three-phase loads common in commercial settings, including HVAC systems, commercial refrigeration, elevators, and manufacturing equipment. The IP66 rating allows installation on rooftops or exterior walls, preserving valuable indoor space.

3. Telecommunications Infrastructure

Telecommunication towers and base stations require reliable, uninterrupted power to maintain network connectivity. The 3 Phase 10KW Hybrid Solar Inverter provides UPS-grade backup power with seamless grid transition, ensuring that critical communication equipment remains operational during grid outages. The high charge/discharge current capability supports rapid battery charging during brief grid availability windows, maximising backup readiness.

4. Agricultural & Irrigation Applications

Farms and agricultural operations often face unreliable grid power, especially in rural areas. The SUN-10KS48P3 can power irrigation pumps, grain dryers, ventilation systems, and other farm equipment, reducing dependence on expensive diesel generators. The IP66 all-weather enclosure makes it suitable for installation in barns, sheds, and other semi-exposed agricultural environments.

5. Large-Scale Off-Grid Systems

For remote communities, eco-resorts, mining camps, and other off-grid installations, the SUN-10KS48P3 provides the power capacity and ruggedness required for dependable off-grid operation. The 200% PV over-provisioning capability allows for oversized solar arrays that can meet year-round energy needs even during winter months or periods of inclement weather. Multiple units can be paralleled to scale capacity to megawatt-scale installations.

6. Microgrid & Energy Community Projects

The SUN-10KS48P3 is well-suited for microgrid and energy community projects where multiple homes or businesses share a common solar and storage infrastructure. The three-phase output and grid-forming capability enable the creation of self-sustaining energy communities that can operate independently of the main utility grid.

Authoritative Certifications

The 3 Phase 10KW Hybrid Solar Inverter has undergone rigorous testing and holds multiple internationally recognised certifications, ensuring worry-free customs clearance, system integration, and installation worldwide.

FAQ

1. Can the 3 Phase 10KW Hybrid Solar Inverter be used outdoors?

Yes. With an IP66 protection rating, the inverter is fully dust-tight and protected against powerful water jets, making it suitable for both indoor and outdoor installation.

2. How many MPPT trackers does it have?

The SUN-10KS48P3 supports either two or three MPPT trackers (configurable), with a maximum input current of up to 36A.

3. What is the maximum PV input power?

The maximum DC input power is 20,000W, with a maximum DC input voltage of 1,000V.

4. What battery types are compatible?

The inverter supports both lithium and lead-acid batteries with a nominal voltage of 48V and a maximum charging voltage configurable up to 60V.

5. What is the maximum charge/discharge current?

The maximum charge/discharge current is 250A, enabling rapid battery charging and high-power load support.

6. Can multiple units be paralleled?

Yes, the SUN-10KS48P3 supports parallel connection of up to 6 units, enabling system capacity scaling to 60kW or more.

7. What is the overload capacity?

The inverter provides 200% overload capacity for 15 seconds in off-grid mode, enabling reliable startup of heavy motor-driven loads.

8. What is the noise level?

The inverter operates below 55dB, suitable for most commercial and industrial environments.
