Offline UPS Made in China for Dependable Power Protection

How to Choose the Right Offline UPS for Your Application?

Selecting the optimal Offline UPS requires careful evaluation of several critical factors:

1. Power Capacity – Calculate your total load in both VA (volt-amperes) and watts. The AK series spans from 500VA/240W to 3000VA/1800W, covering everything from a single desktop PC to multiple servers and network switches. As a rule of thumb, your UPS should be rated at least 120% of your total load to accommodate startup surges.

2. Backup Runtime – Consider how long you need your equipment to run during an outage. The AK-500VA (12V/4Ah battery) provides approximately 5-10 minutes for a standard PC——enough to save work and shut down safely. The AK-650VA (12V/7Ah) extends this to 10-12 minutes at 50% load. For extended runtime, the AK-1000VA (12V/7Ah ×2) offers 15-20 minutes at half load, while the AK-2000VA (12V/7Ah ×4) and AK-3000VA (12V/9Ah ×4) can sustain power for 25-30 minutes at half load.

3. Number of Devices – The AK series offers increasing output capacity to match your device count. The 500VA model suits a single PC and monitor. The 650VA model handles two standard PCs plus peripherals. The 1000VA model powers three to four desktop computers, networking equipment, and external storage. The 1500VA model supports high-end workstations, small servers, and medical equipment. The 2000VA and 3000VA models are designed for multiple servers, network switches, industrial controllers, and even small air-conditioning units.

4. Voltage Regulation Requirements – All AK series models feature built-in AVR with wide input voltage ranges (81-145V or 145-275V), making them ideal for regions with unstable grid power. This AVR capability is what distinguishes Offline UPS from basic offline models, it stabilises voltage without consuming battery power, extending overall battery life.

5. Communication and Management – For IT and server applications, optional RS232, USB, or RJ45 communication ports enable integration with UPS management software, allowing automatic shutdown of connected devices during extended outages preventing data loss and system corruption.

What Makes KTAC AK Series Stand Out?

1. Comprehensive AVR Protection for Voltage Fluctuations

All AK series UPS units feature built-in automatic voltage regulation (AVR) that corrects brownouts and overvoltage conditions without switching to battery. This intelligent boost/buck technology stabilises input voltage across a wide range (81-145VAC or 145-275VAC), ensuring your equipment receives clean, stable power even during severe grid fluctuations. By preserving battery power for true emergencies, AVR significantly extends the service life of both the UPS and its batteries.

2. CPU-Controlled Intelligence for Reliable Performance

Every AK series UPS is powered by an advanced CPU-controlled integrated power board that continuously monitors input quality, manages battery charging, and orchestrates seamless transitions. This intelligent control ensures maximum efficiency, precise voltage regulation, and reliable fault detection. The smart charger optimises recharge time——reaching 90% capacity in just 8 hours——and prevents overcharging, extending the service life of the sealed lead-acid batteries.

3. Scalable Battery Configurations for Varied Runtime Needs

The AK series offers progressively larger battery banks to match your runtime requirements:

Single Battery (500VA/650VA): 12V/4Ah or 12V/7Ah for entry-level and small office protection

Dual Batteries (1000VA/1500VA): 12V/7Ah ×2 or 12V/9Ah ×2 for extended runtime and higher power

Quad Batteries (2000VA/3000VA): 12V/7Ah ×4 or 12V/9Ah ×4 for maximum backup energy and longest runtime

This modular approach allows you to select the exact runtime you need without overspending on unnecessary capacity.

4. High-Efficiency Laminated Transformers for Reliable Power Delivery

Higher-capacity AK models feature premium EI-type laminated transformers constructed from high-grade silicon steel and copper windings. This design minimises energy losses, delivers stable power even under heavy loads, and ensures low heat generation for extended operational life. The robust transformer construction is a hallmark of KTAC's commitment to quality and reliability.

5. Comprehensive Protection Suite

Every AK series UPS incorporates full protection features including automatic fault detection, short-circuit protection, overload protection, and low-battery voltage protection. Three LED indicators (Green for line mode, Yellow for charge mode, Red for battery mode) and audible alarms keep you informed of every operating mode——battery mode (beep every 4 seconds), overload (double beep), and fault conditions (continuous beep). This comprehensive protection ensures both your equipment and the UPS itself remain safe under all conditions.

6. Ultra-Quiet Operation for Office and Home Environments

All AK series UPS units operate at ≤40dB——quieter than a typical conversation. This makes them ideal for noise-sensitive environments such as home offices, open-plan workspaces, retail counters, and medical facilities where silence is valued.

7. Compact and Lightweight Design

The AK series features progressively larger but still space-efficient enclosures. The 500VA and 650VA models share a compact 307×90×137mm footprint weighing just 4-5kg. The 1000VA and 1500VA models measure 365×138×165mm at 9-12kg. Even the flagship 3000VA model maintains a manageable 360×190×325mm footprint at 24kg. This thoughtful design allows installation under desks, beside monitors, or on crowded shelves without consuming valuable workspace.

Selection Suggestions

AK-500VA (500VA/240W): The most compact and affordable entry-level UPS, ideal for personal computers, home routers, and small peripherals. Features a 12V/4Ah battery with simulated sine wave output and 6-10ms transfer time.

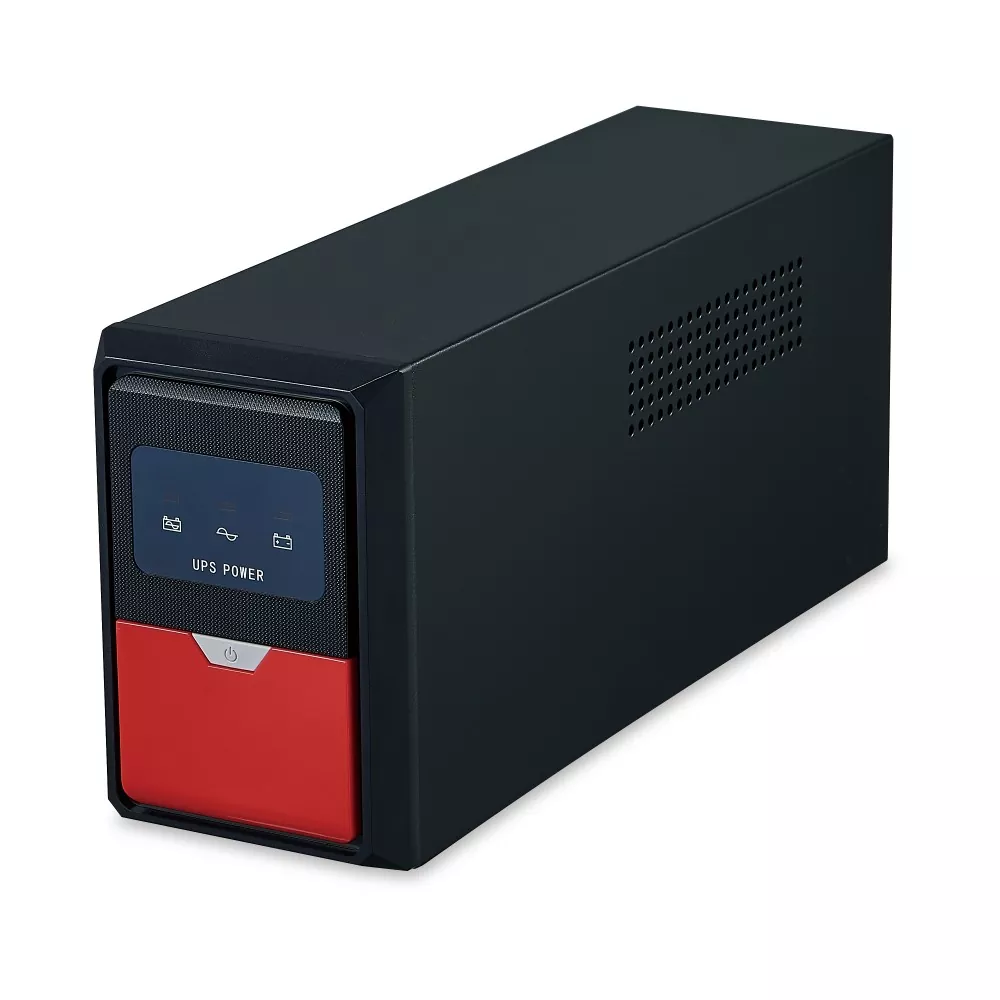

AK-650VA (650VA/390W): A step-up solution with a larger 12V/7Ah battery offering 30-40% longer runtime than the 500VA model. Perfect for small office peripherals——multiple computers, network switches, printers, and security cameras.

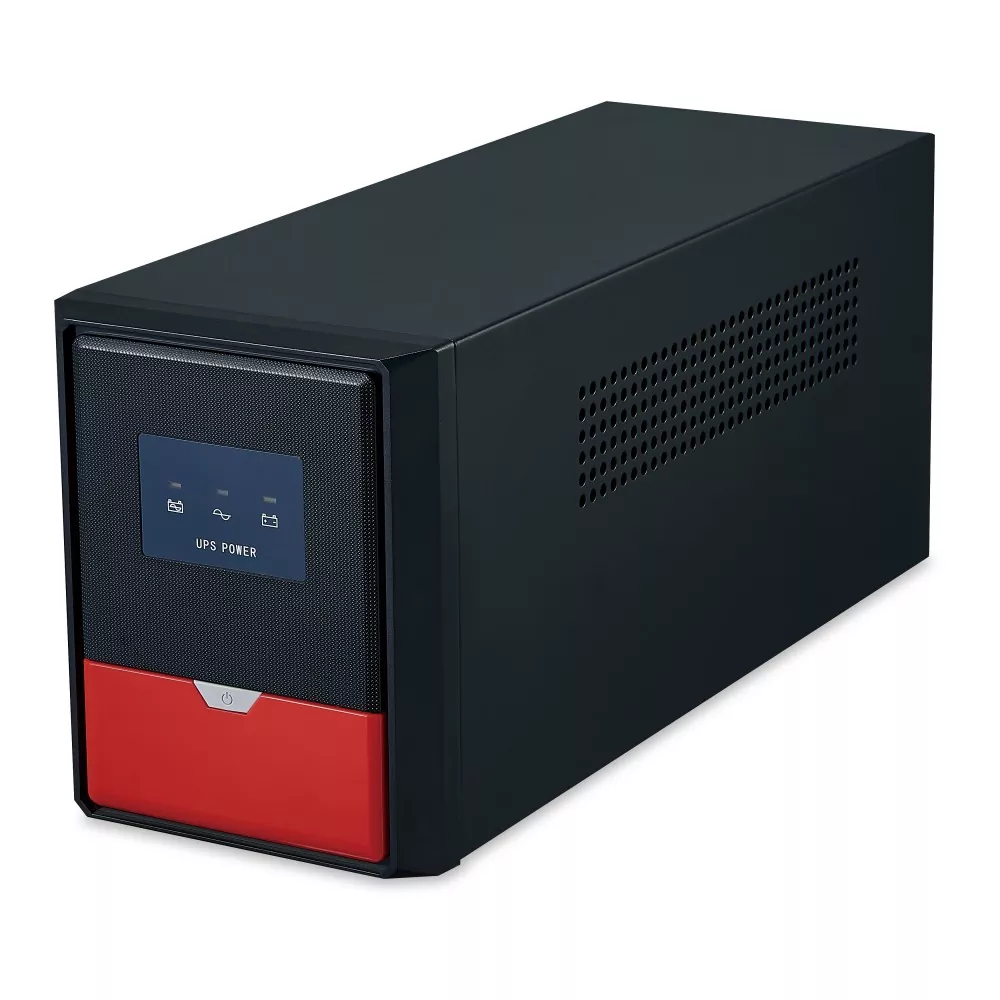

AK-1000VA (1000VA/600W): The first model in the series to feature dual batteries (12V/7Ah ×2), providing nearly double the backup energy. Suitable for three to four desktop computers, networking equipment, and external storage devices.

AK-1500VA (1500VA/900W): A high-power solution with dual 12V/9Ah batteries, designed for high-end workstations, small servers, and critical medical or laboratory equipment. Offers 20 minutes of runtime at 50% load.

AK-2000VA (2000VA/1200W): A powerhouse unit with four 12V/7Ah batteries (or optional 9Ah), delivering the highest backup energy in the standard series. Suitable for small data centres, telecommunications equipment, industrial controllers, and emergency lighting systems.

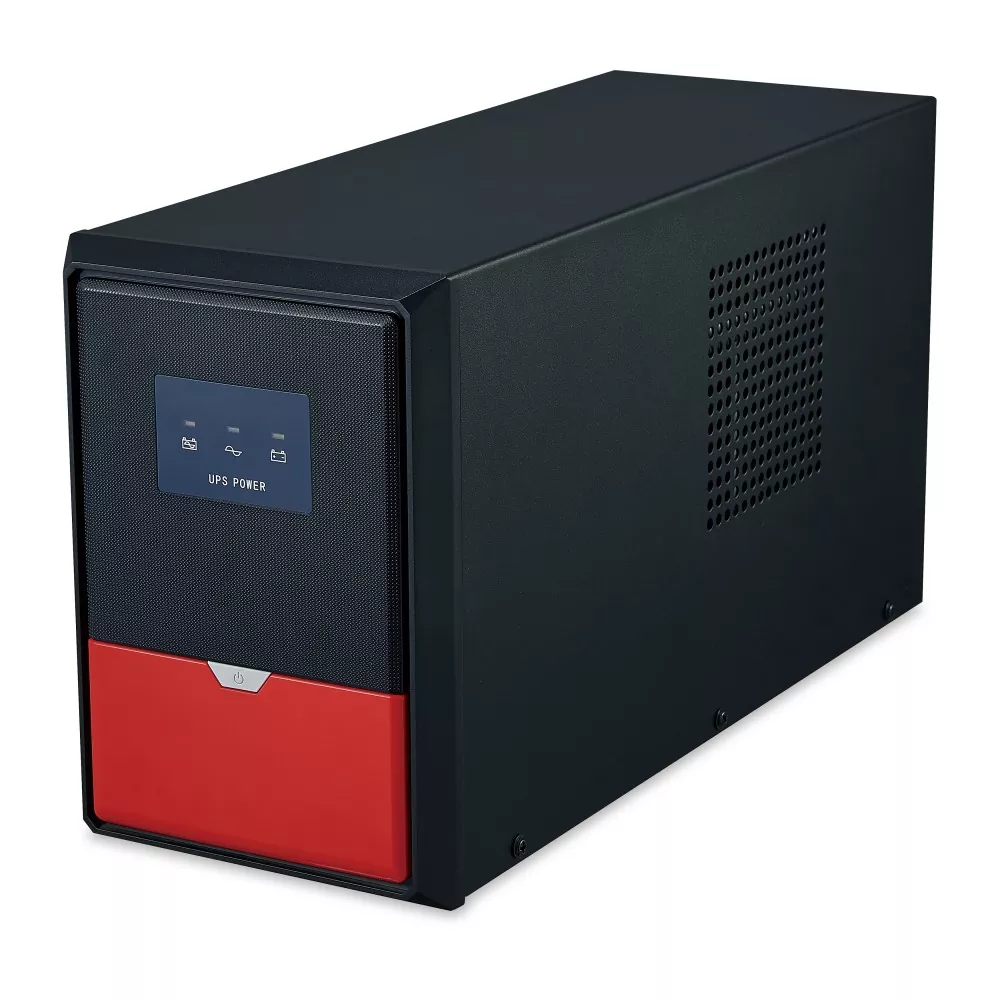

AK-3000VA (3000VA/1800W): The flagship model with four 12V/9Ah batteries, offering the highest power and longest runtime. Engineered for large server rooms, medical imaging equipment, industrial automation lines, and telecommunications hubs.

Key Application Scenarios

Home and Small Office: Protect personal computers, monitors, routers, and external hard drives from data loss and hardware damage caused by sudden blackouts or voltage fluctuations.

Corporate Workstations and Small Server Rooms: The 1000VA and 1500VA models support multiple workstations, tower servers, network switches, and NAS devices, ensuring business continuity during power interruptions.

Retail and POS Systems: Keep cash registers, card terminals, and barcode scanners operational during brief power flickers——preventing sales disruption and transaction loss.

Medical and Laboratory Equipment: Protect diagnostic devices, monitors, and sensitive analytical instruments from power anomalies that could compromise patient care or test results.

Data Centres and Telecommunications: The 2000VA and 3000VA models provide robust backup for racks of servers, storage arrays, high-capacity switches, and transmission equipment in mission-critical facilities.

Industrial Automation: Support PLCs, robotic controllers, motor drives, and conveyor systems in manufacturing plants, preventing costly production stoppages.

Frequently Asked Questions

Q: What is the difference between simulated sine wave and pure sine wave output?

A: Simulated (stepped) sine wave output is sufficient for most switching power supplies found in modern computers, monitors, and networking equipment. Pure sine wave is required for sensitive medical equipment, certain motors, and some audio devices. The AK series delivers simulated sine wave, which offers the best balance of protection and affordability for standard office and home applications.

Q: Can I connect a laser printer?

A: Laser printers have high inrush current during startup. We recommend connecting only inkjet or small multifunction printers to AK series UPS units, and ensuring total wattage stays within the rated capacity.

Q: What is the typical battery replacement interval?

A: Under normal operating conditions (ambient temperature 20-25°C), sealed lead-acid batteries typically last 3-5 years. We recommend checking battery condition every 6-12 months. The unit is maintenance-free except for battery replacement.

Q: Can the AK series UPS be used with a generator?

A: Yes, but ensure the generator output is stable. The built-in AVR will help regulate voltage, but extremely dirty power may cause the UPS to switch to battery frequently.

Q: Do AK series UPS units have surge protection on data lines?

A: Optional RJ45 and USB ports are available for protecting network and data connections——please specify when ordering.
