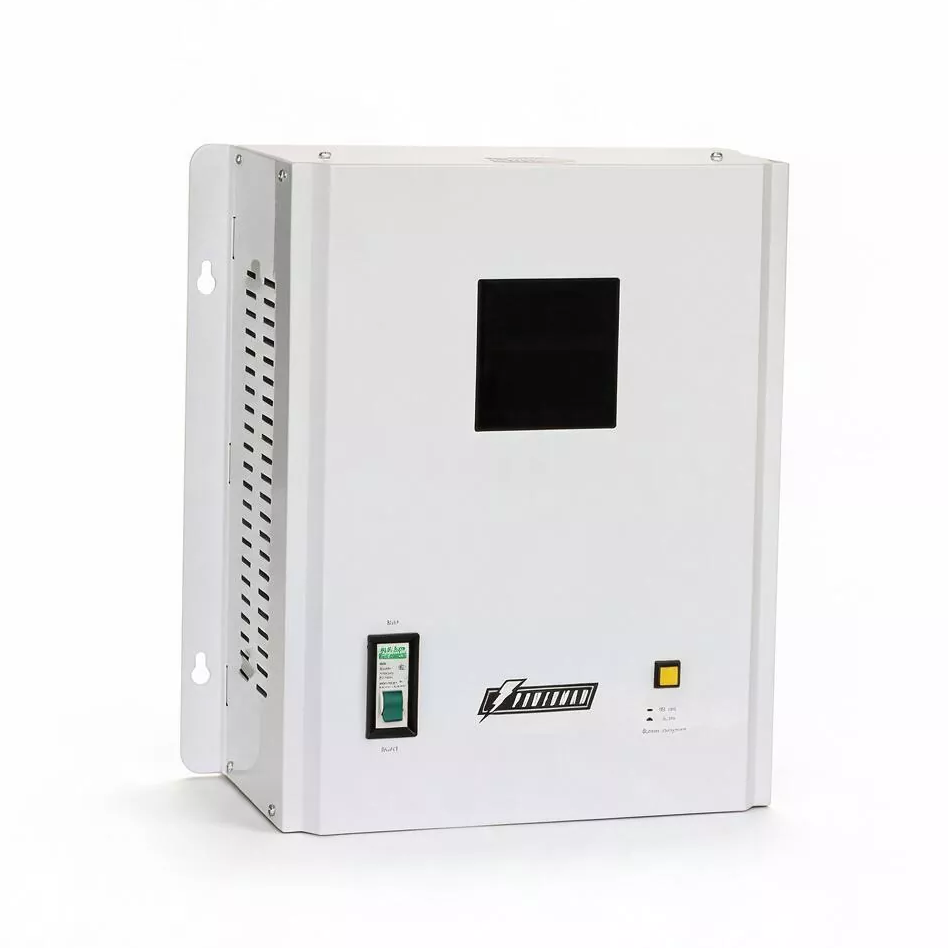

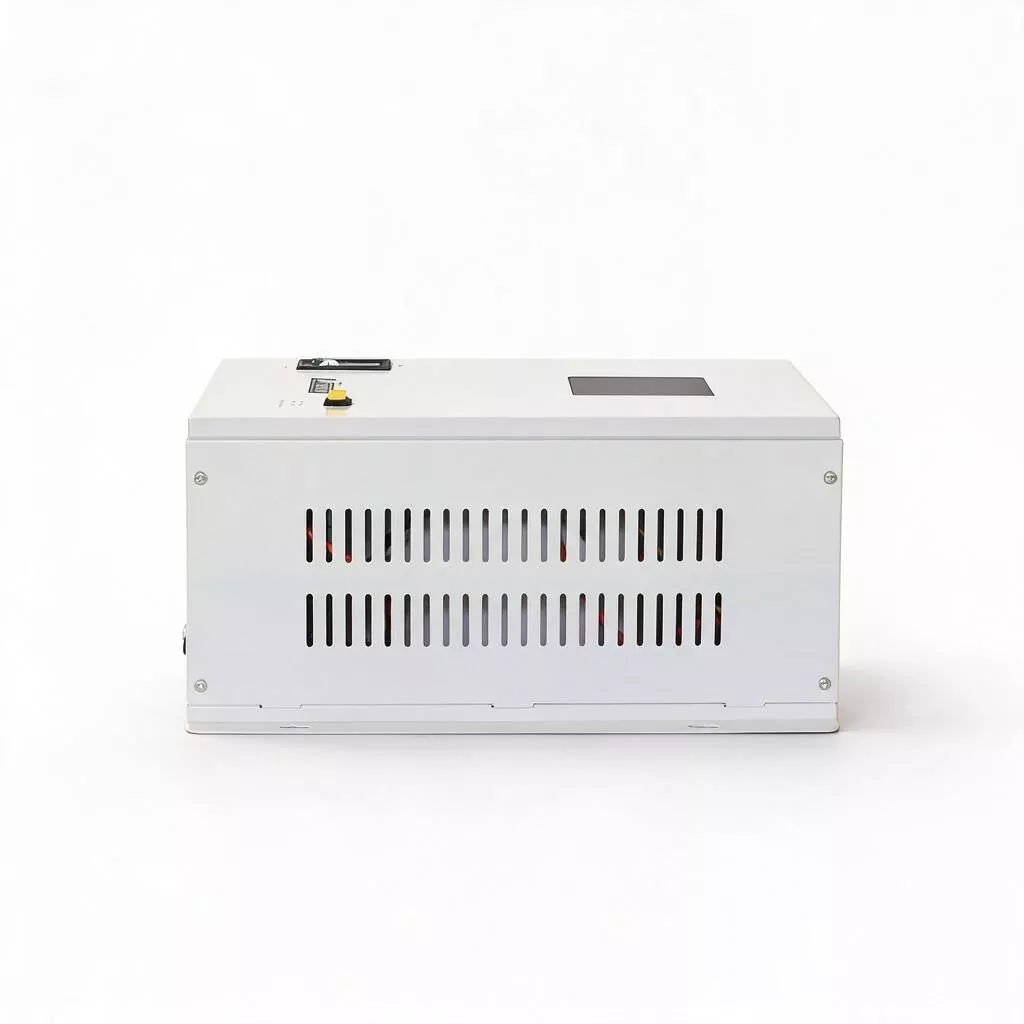

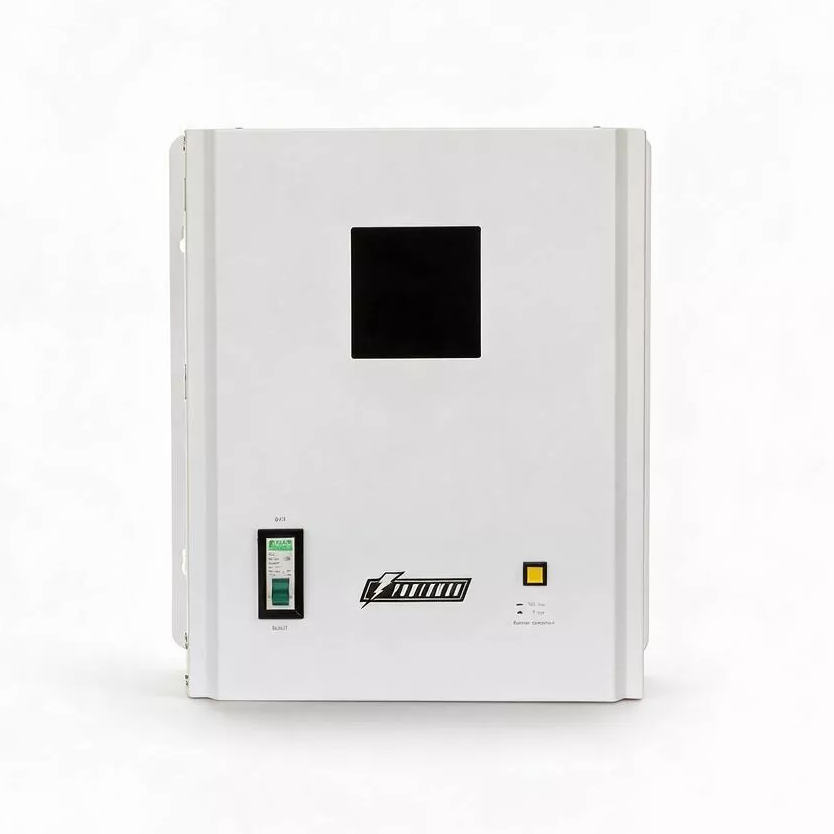

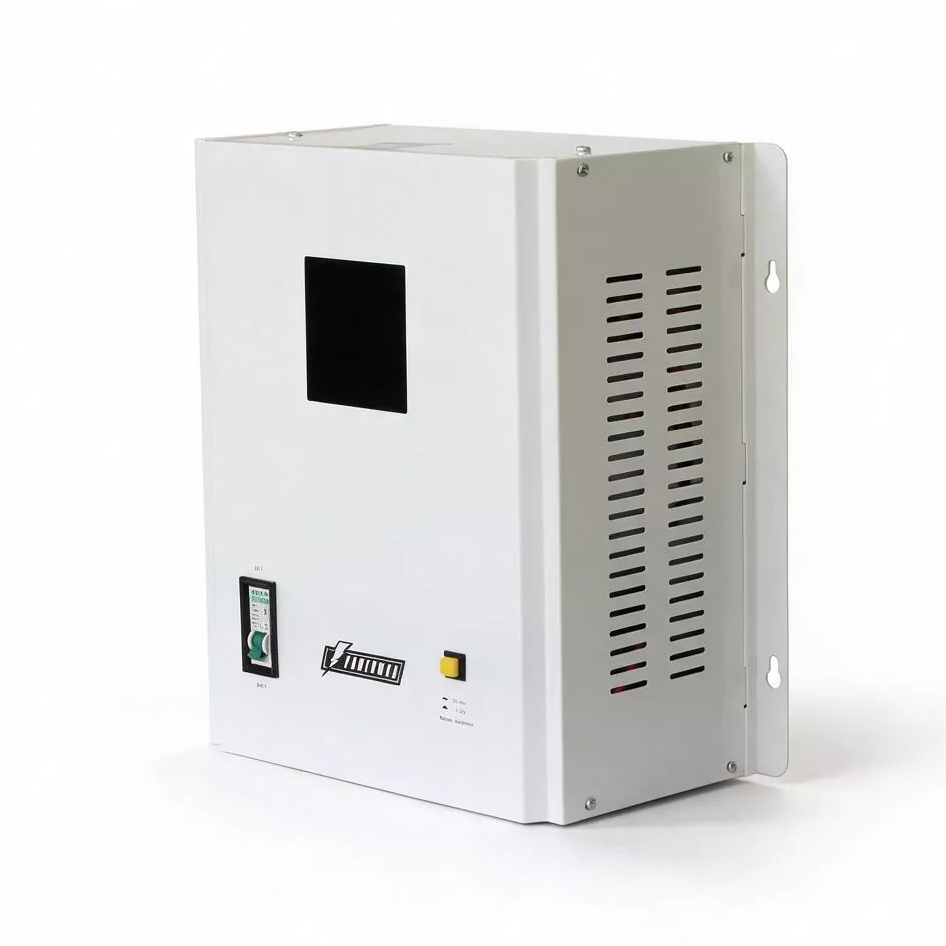

10kVA Wall Mount Automatic Voltage Regulator

The AVS‑10000P is the pinnacle of the AVS‑P series, engineered for the most power‑hungry single‑phase loads. Its oversized toroidal transformer and heavy‑duty relay network provide stable voltage even when input mains drops to 140V or surges to 260V, ensuring that critical equipment – such as industrial ovens, large compressors, and entire production lines – operates without interruption. The unit’s MCU continuously monitors temperature and load, automatically adjusting taps to maintain ±8% precision.

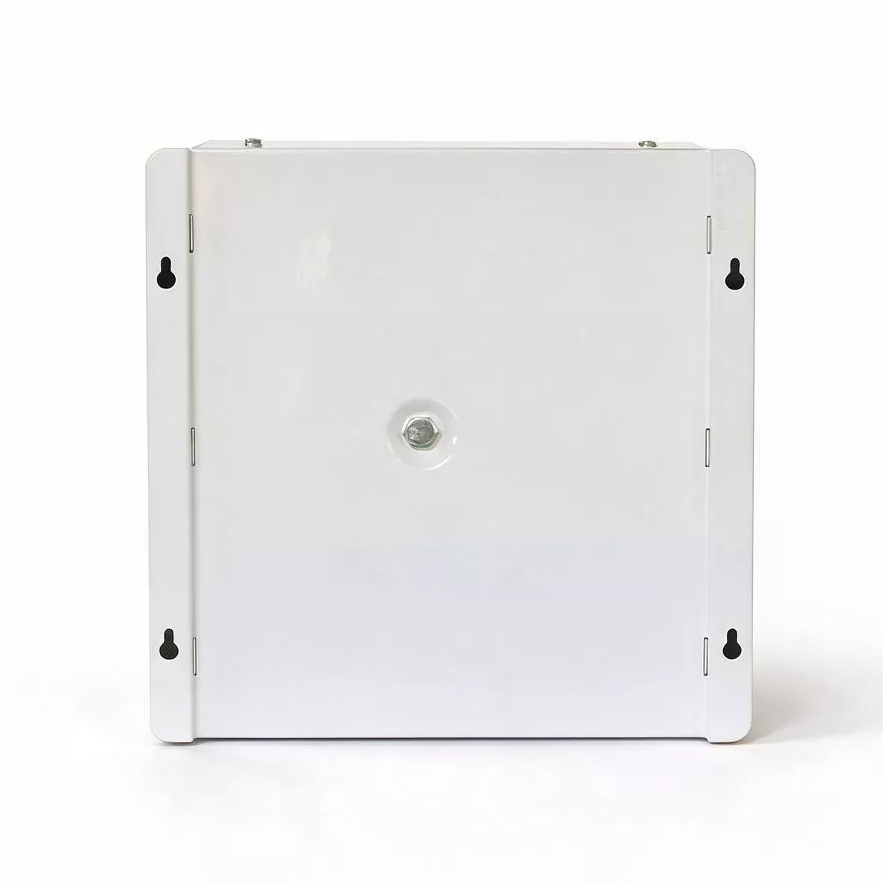

The 180‑second delay protects large motors from short‑cycling, while the 40A circuit breaker and thermal sensor at 120°C provide fail‑safe protection. The heavy‑duty wall‑mount chassis (15.8 kg) includes reinforced brackets for secure installation.

Weighing 15.8 kg, 10KVA Wall Mount Automatic Voltage Regulator is the most robust model in the series, built for continuous operation under demanding conditions. The AVS‑10000P is the ultimate solution for facilities that cannot tolerate voltage‑induced downtime – manufacturing lines, data centre cooling, and large‐scale refrigeration.

Core Advantages

1. Unmatched Power Capacity (6000W)

This is the highest capacity single‑phase wall‑mount regulator in the series. It can power a complete workshop, a large commercial kitchen, or a bank of servers and cooling units.

2. Industrial‑Grade Transformer and Cooling

The toroidal transformer is oversized to handle peak loads without saturation, and the chassis design allows for passive convection cooling, eliminating fan noise and maintenance.

3. Advanced Overload Management

Overload protection triggers at 120% load, but the unit is designed to handle momentary surges up to 150% for several seconds, ensuring that motors start smoothly.

4. Easy Integration with Facility Systems

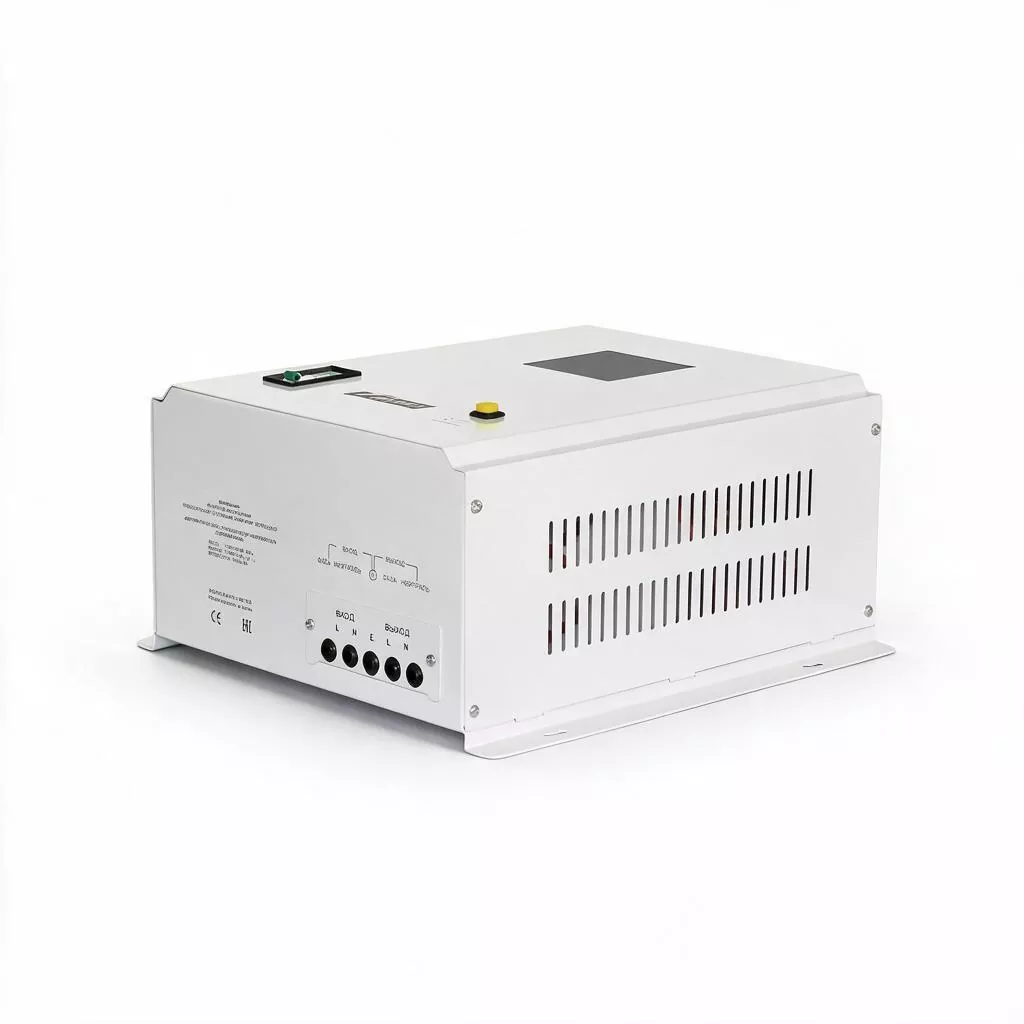

The AVS 10KVA Wall Mount Automatic Voltage Regulator includes terminal block connections for fixed wiring, allowing integration into main distribution panels. It can be monitored remotely via optional dry‑contact outputs (available on request).

Product Parameter

Key Application Scenarios

1. Industrial Manufacturing – Power CNC machines, conveyor systems, and welding equipment.

2. Data Centres – Stabilise voltage for UPS inputs, cooling systems, and server racks.

3. Large Commercial Kitchens – Run multiple ovens, dishwashers, and exhaust fans simultaneously.

4. Agricultural Processing – Protect grain dryers, irrigation pumps, and cold storage.

5. Telecom Hubs – Ensure reliable AC power for microwave and fibre‑optic equipment.

Customization Services

KTAC provides flexible OEM/ODM customization for the 10KVA Wall Mount Automatic Voltage Regulator to support facility-specific requirements, distributor branding, and project specifications.

Voltage Configuration

Adjustable input range (100-260VAC or 100-270VAC) and fixed output voltage (220/230/240VAC) can be factory-set to match local grid conditions.

Terminal Block or Hardwired Output

Standard terminal block connections for permanent wiring. Optional socket outputs available for plug-and-play installations in portable or temporary setups.

Branding and Packaging

Custom label printing with your brand identity. Export-grade or retail packaging with your artwork. Multi-language user manuals supplied for your target regions.

Technical Adjustments

Delay timing (6s/180s), voltage cut-off thresholds, and regulation accuracy can be factory-tuned to match specific equipment or site conditions.

Lead Time for Custom Orders

10-15 days, subject to configuration and quantity.

FAQ

1. Can the AVS‑10000P be used for three‑phase loads?

No, it is a single‑phase regulator. For three‑phase, please use three units or our separate three‑phase models.

2. What is the efficiency at full load?

The toroidal transformer achieves >95% efficiency at 6000W, with losses dissipated as heat.

3. How long does the delay protection last?

Selectable 6 seconds or 180 seconds. The 180s setting is recommended for large motors and compressors.

4. Is professional installation required?

Yes, due to the high current (40A) and fixed wiring, installation must be performed by a licensed electrician.

5. What is the difference between the AVS-10000P and the AVS-8000P?

The AVS-8000P is rated at 4800W with a 40A breaker, designed for light commercial applications such as retail stores and restaurants. The AVS-10000P is rated at 6000W with a 50A breaker, designed for heavy-duty industrial applications such as manufacturing lines, data centres, and large commercial kitchens. The AVS-10000P also features higher surge capacity (150% vs 120% overload) and passive convection cooling for maintenance-free operation.

6. Can the AVS-10000P be installed outdoors?

No. The AVS-10000P is rated for indoor installation only (0‑40°C, dry environment). The unit is not weather-sealed and should not be exposed to rain, moisture, or direct sunlight. For outdoor installations, we offer IP-rated enclosures upon request. Please consult our technical team for specific outdoor requirements.

7. What is the recommended clearance for installation?

For safe operation and adequate heat dissipation, we recommend at least 20cm clearance on all sides and 30cm above the unit. The wall must be capable of supporting 15.8kg. Do not install near heat-generating equipment or in direct sunlight.

8. How does the passive convection cooling work without a fan?

The AVS 10KVA Wall Mount Automatic Voltage Regulator uses a large, oversized toroidal transformer and a carefully designed chassis with ventilation slots. Heat rises naturally through the unit and exits through top vents, while cool air enters from the bottom and sides. This design eliminates the need for moving parts (fans), resulting in silent operation, zero maintenance, and higher reliability — particularly important in dusty industrial environments where fans can clog and fail.
