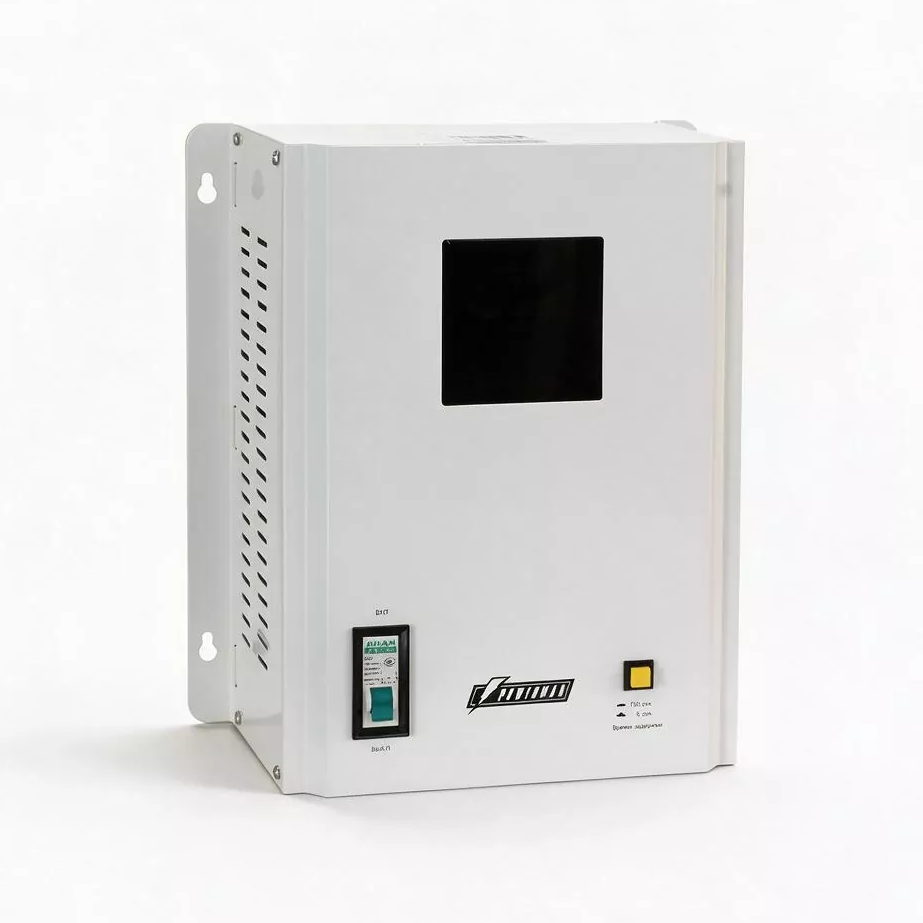

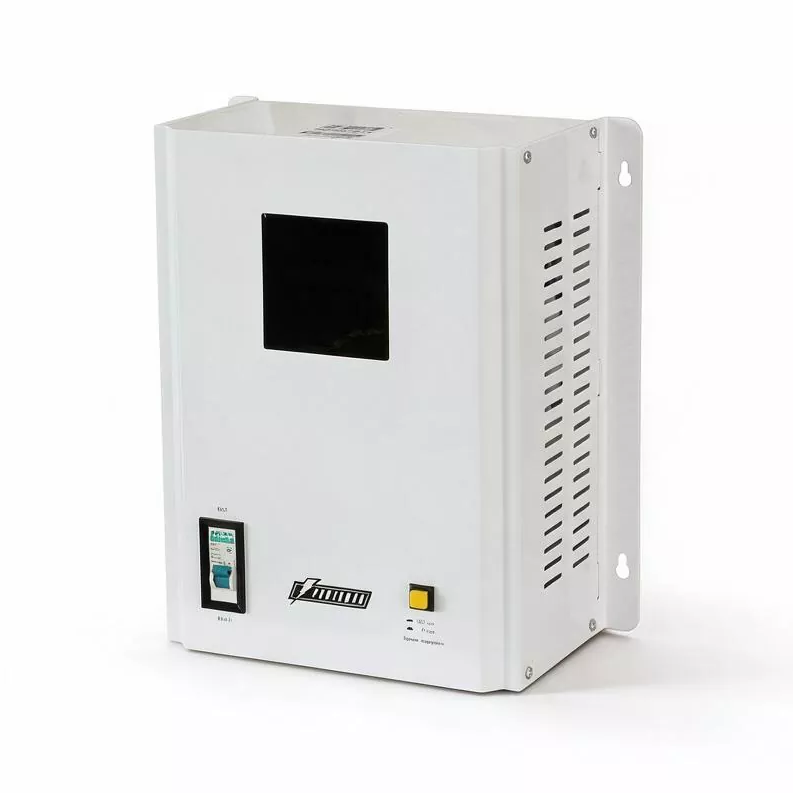

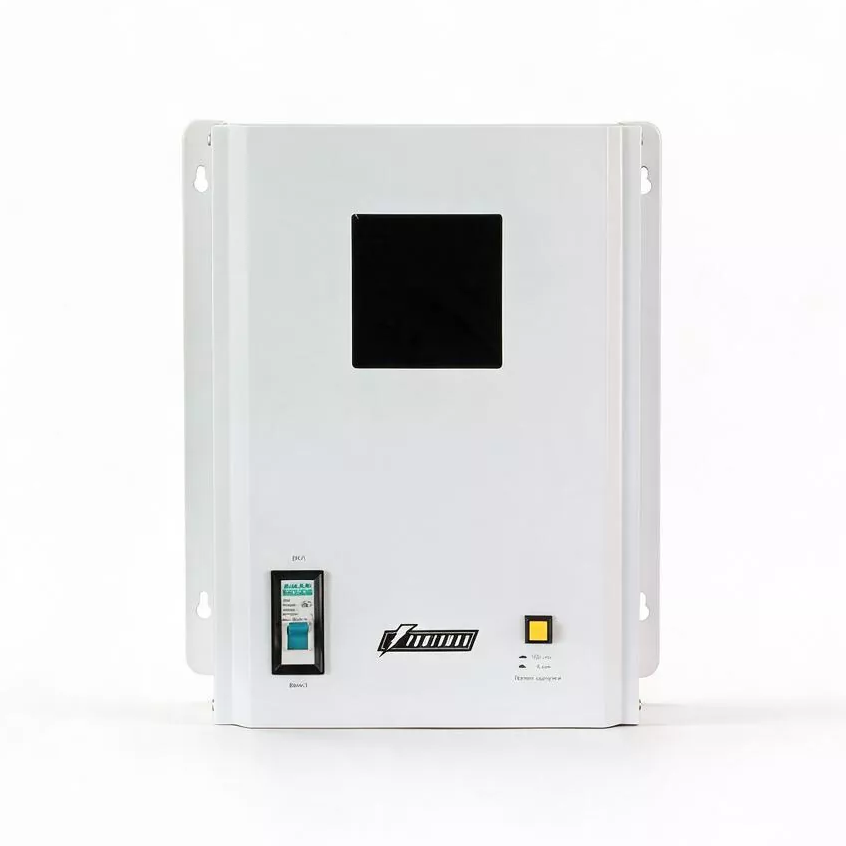

5kVA Wall Mount Automatic Voltage Regulator

The AVS-5000P is a powerful voltage regulator capable of stabilising the entire electrical supply for a medium-sized home-covering refrigerators, washing machines, air conditioners, entertainment systems, and lighting. Its MCU-controlled 7-tap relay network responds to voltage fluctuations in real time, maintaining a stable output even when mains voltage drops to 140V or rises to 260V.

The toroidal transformer offers high efficiency, low noise, and minimal maintenance, while the wall-mount design saves floor space. The unit’s 25A circuit breaker and robust thermal management make 5KVA Wall Mount Automatic Voltage Regulator reliable for continuous, heavy-load operation.

Core Advantages

1. Whole-Home Capacity (3000W)

This power level is sufficient for most households with 3-4 rooms, allowing you to connect several large appliances without overloading the regulator.

2. High Surge Withstand

The toroidal transformer’s magnetic design handles startup surges from compressors and motors with ease, ensuring your appliances start reliably.

3. Multi-Stage Protection

In addition to standard protections, the AVS-5000P features a built-in delay that can be set for the entire household, preventing simultaneous restart surges after a blackout.

4. Professional Wall-Mount with Enhanced Cooling

The larger chassis (380×308×160 mm) provides better airflow, and the cooling vents are designed for passive convection, making it maintenance-free.

Product Parameter

Key Application Scenarios

1. Whole-House Lighting Circuits-Protect LED, CFL, and smart lighting from voltage spikes.

2. Multiple Kitchen Appliances-Run fridge, microwave, dishwasher, and kettle simultaneously.

3. Home Office + Entertainment-Combine PC, TV, audio, and networking equipment on one stabilised circuit.

4. Garage and Workshop-Power power tools and chargers without fluctuation issues.

Why Choose the AVS-5000P?

The AVS-5000P bridges the gap between single-appliance regulators and full-scale industrial units. It is the most popular choice for families who want comprehensive protection for their entire home without investing in a massive, floor-standing system. Its 3000W capacity covers most residential needs with room to spare.

Customization Services for AVS-5000P

KTAC offers flexible OEM/ODM customization for the 5KVA Wall Mount Automatic Voltage Regulator to suit regional requirements.

Input Voltage Range Configuration

The standard unit supports 100-270VAC or 100-260VAC selectable ranges. We can pre-configure the unit to your specific grid voltage conditions, ensuring optimal regulation performance for your region without requiring on-site adjustment.

Terminal Block or Socket Output

Standard configuration uses terminal block connections for permanent wiring to the distribution board. For applications requiring plug-and-play installation, we offer optional socket-type outputs (EU, UK, US, AU, South Africa standards). Please specify your preference when ordering.

Visual Branding

Custom label printing with your brand logo, product name, and technical specifications. Enclosure colour options are available for volume orders.

Packaging Design

Retail-ready or export-grade custom boxes with your artwork and branding. Multi-language user manuals available for your target markets.

Parameter Adjustments

Regulation accuracy (±8% standard), delay settings (6s/180s default), and voltage cut-off thresholds can be adjusted at the factory to match specific equipment protection requirements or local grid conditions.

Customization orders require minimum quantities. Typical lead time for customized units is 10-15 days. Please contact our technical team to discuss your specific requirements.

FAQ

1. Can I connect the AVS 5KVA Wall Mount Automatic Voltage Regulator to my main distribution board?

Yes, but it must be installed by a qualified electrician. It is designed for fixed wiring with a dedicated circuit.

2. How does it compare to a UPS?

This is a voltage regulator, not a battery backup. It stabilises voltage during fluctuations but does not supply power during blackouts.

3. What is the typical power loss?

The toroidal transformer has an efficiency above 95%, so losses are minimal-about 150W at full load.

4. What is the difference between the AVS-5000P and the AVS-3000P?

The AVS-3000P is designed for individual high‑power appliances such as a 2HP air conditioner or induction cooktop (1800W rating). The AVS-5000P, with its 3000W rating and 25A breaker, is designed for whole‑home protection — capable of simultaneously powering refrigerators, washing machines, air conditioners, lighting circuits, and home office equipment. For households with 3‑4 rooms and multiple devices running concurrently, the AVS-5000P is the recommended choice.

5. Can the AVS-5000P protect my entire house's electrical system?

The AVS-5000P can protect a significant portion of your household circuits, but it is not designed to replace a whole‑house industrial‑grade stabiliser for the entire electrical panel. It is best suited for protecting selected critical circuits — such as lighting, kitchen appliances, and home office outlets — up to a total load of 3000W. For whole‑house protection of larger homes, please consider our higher‑capacity models or consult our technical team for a custom solution.

6. How much clearance is required for wall mounting?

For safe operation and adequate heat dissipation, we recommend the following clearances:

15cm clearance on all sides

20cm clearance above the unit for optimal airflow

The wall must be capable of supporting 9.2kg

Do not mount directly above heat‑generating equipment
