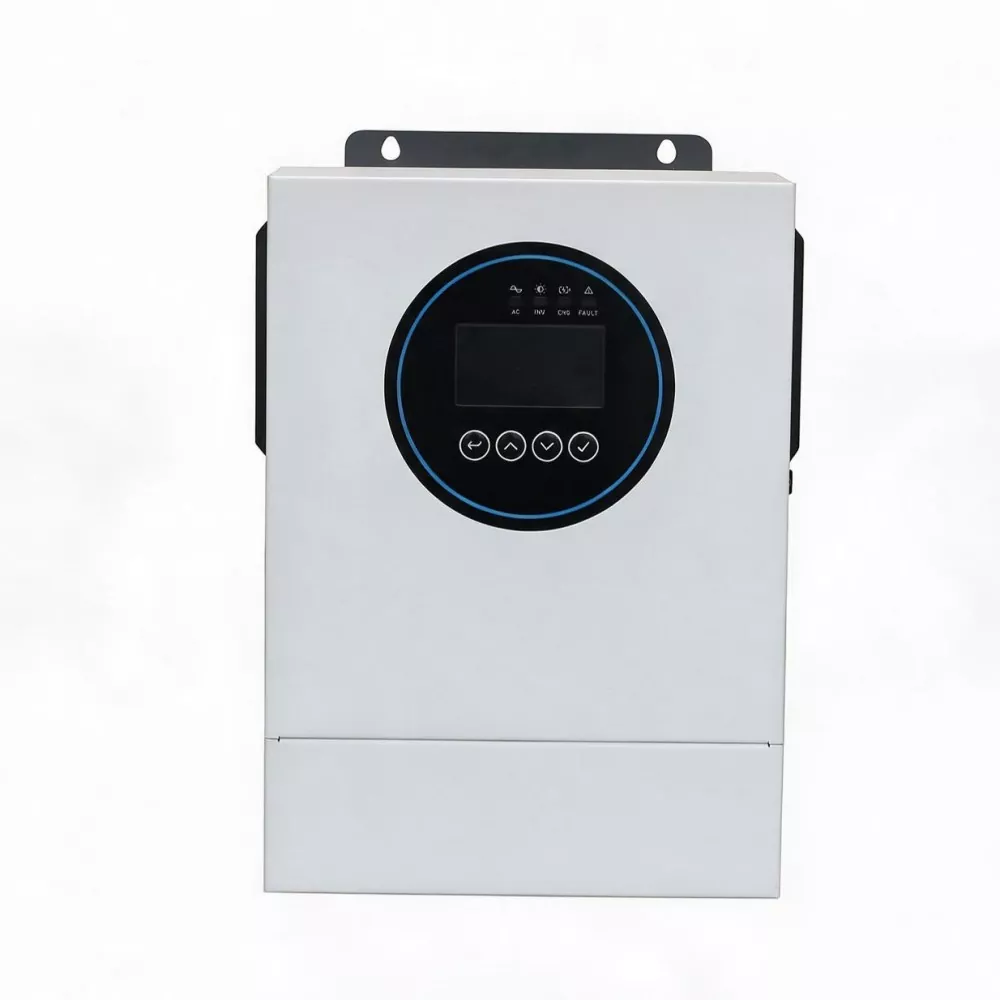

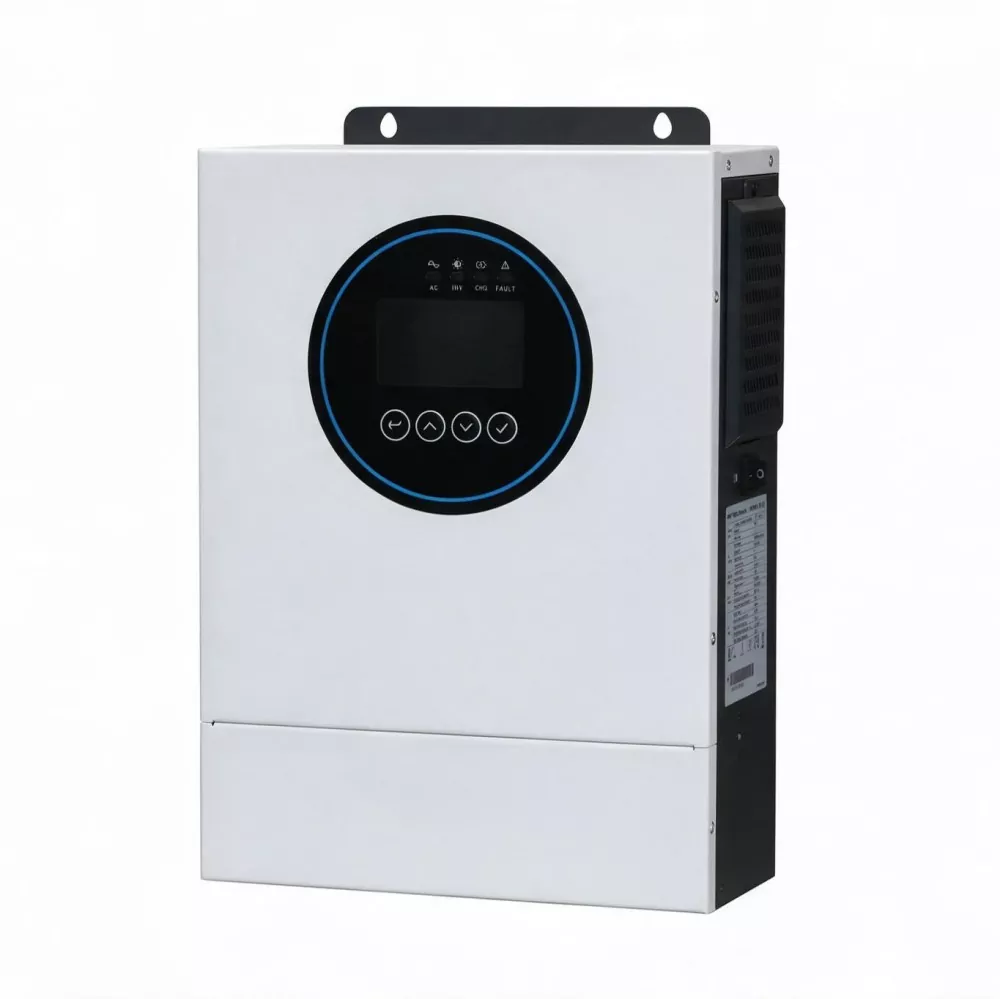

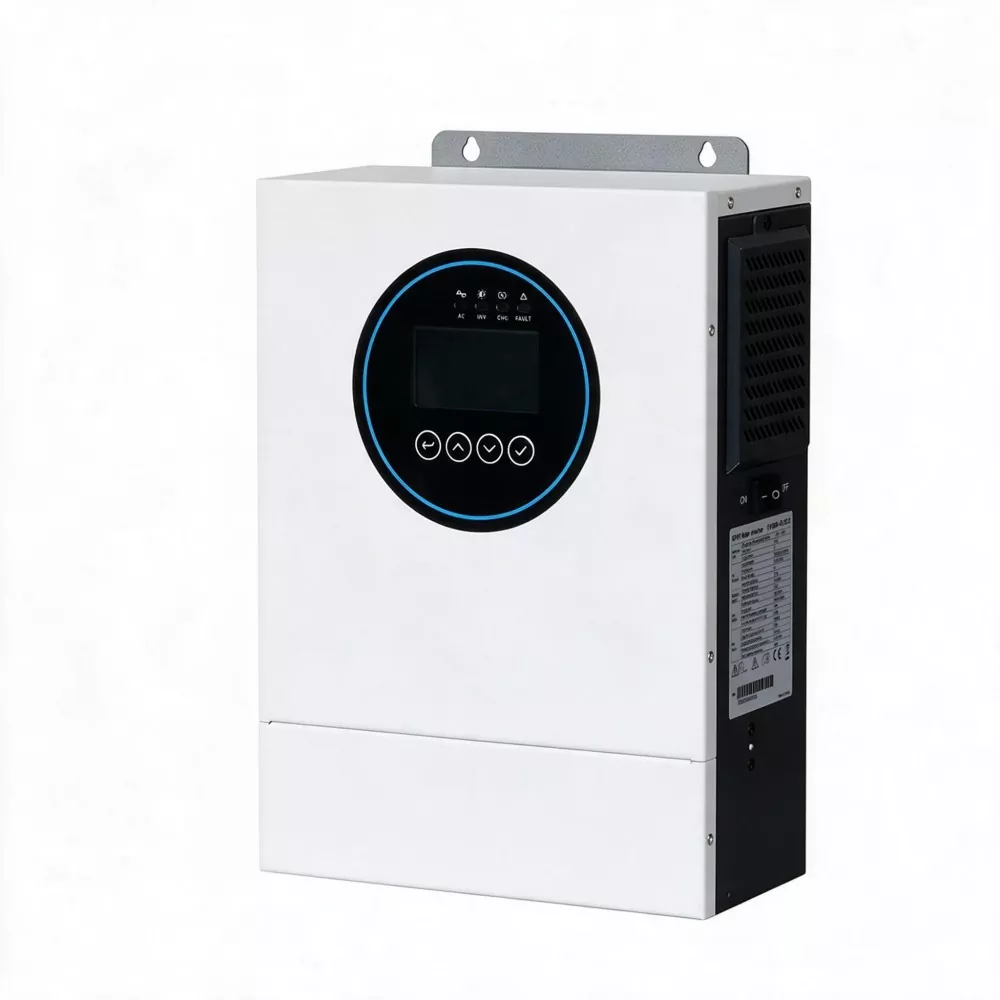

2kW 12V Off Grid Solar Inverter

The GA-2012 off‑grid hybrid solar inverter delivers a rated output power of 2000W and a surge capacity of 4000VA. With a net weight of only 4.5kg and compact dimensions of 331×270×100mm, its slim profile allows for wall‑mounting or rack integration—a task that can be easily completed by a single person. This design effectively resolves the common challenges associated with traditional inverters, such as excessive weight, difficult installation, and large spatial footprints.

Using advanced SPWM modulation, the inverter outputs pure sine wave AC power with high quality, stable waveform, and excellent compatibility with a wide range of appliances. Whether for household electronics, office equipment, or precision instruments, it ensures safe and reliable power supply. Built with high‑power‑density, long‑life components, it supports continuous full‑load operation and is designed for a service life of more than 10 years.

The 2KW 12V Off Grid Solar Inverter is ideally suited for diverse applications, including apartment balcony solar systems, RVs, small cabins, communication base stations, border posts, remote areas without grid access, and regions with unstable utility power. Its high‑frequency architecture enables faster load response and more stable waveforms, making it especially suitable for sensitive electronic or electrical devices.

The unit supports AC input from the grid or a generator, offers high‑current charging capability, and is compatible with various battery types. Equipped with an LCD display and Wi‑Fi communication, it enables real‑time monitoring and intelligent management of the entire power system.

Core Advantages

1. Lightweight and Compact Design

With a net weight of only 4.5kg and dimensions of 331×270×100mm, the GA-2012 features an ultra‑thin profile that significantly saves installation space. No specialised lifting equipment or multi‑person teams are required—one person can easily handle transport and mounting. This makes it particularly suitable for space‑constrained environments such as indoor rooms, balconies, and RVs, while greatly reducing labour requirements and installation costs.

2. Pure Sine Wave Output with High Power Quality

The 2KW 12V Off Grid Solar Inverter employs advanced SPWM modulation to deliver pure sine wave AC output. Compared to modified sine wave inverters, the pure sine wave output offers superior compatibility with all types of loads, especially inductive loads (such as motors and compressors) and precision electronic devices. The waveform is stable with low harmonic distortion, ensuring safe and efficient operation of connected equipment.

3. High Energy Conversion Efficiency

The GA-2012 achieves a maximum conversion efficiency of 91% @ 12VDC in battery mode, minimising energy loss and maximising the utilisation of solar power. Three operating modes (ON/OFF/ECO) help conserve energy, enabling users to optimise overall system efficiency.

4. Wide Input Voltage Range for Strong Adaptability

The AC input voltage range covers 90‑280V (normal mode) / 170‑280V (UPS mode), with automatic frequency adaptation (50/60Hz). Whether in areas with stable grid power or regions with frequent voltage fluctuations, the unit operates reliably, ensuring continuous power supply to critical loads.

5. Comprehensive Protection for Safety and Reliability

The product features a full suite of protection functions, including overload, over‑voltage, over‑temperature, and short‑circuit protection. In battery mode, the overload capacity is staged: 60s @ 102%‑120% load, 10s @ >120%‑200% load. An intelligent temperature‑controlled fan ensures low noise and efficient heat dissipation. With an IP21 rating, it is suitable for long‑term stable operation in dry indoor environments.

6. Intelligent Communication and Remote Monitoring

The GA-2012 comes with an LCD display that shows real‑time operating modes, load status, and input/output parameters. It offers multiple communication interfaces (RS232, RS485, CAN, Wi‑Fi), enabling remote monitoring, data logging, and diagnostics via a mobile app. It also supports BMS communication with lithium batteries, allowing intelligent interaction and coordinated management with the battery system.

7. Flexible System Adaptation

The inverter supports both lithium and lead‑acid batteries, and its 12V nominal voltage makes it compatible with most 12V battery systems on the market. Whether paired with a LiFePO₄ battery for an off‑grid storage system or with lead‑acid batteries for backup power, the GA-2012 integrates seamlessly.

Safety and Intelligent Features

1. Multiple International Certifications

The 2KW 12V Off Grid Solar Inverter holds CE and ROHS certifications, meeting EU market access standards and global environmental requirements. Its comprehensive protection design ensures safe and reliable operation across various application scenarios.

2. Intelligent BMS Communication Compatibility

Built‑in communication interfaces enable real‑time data exchange with lithium battery BMS systems via CAN/RS485 protocols. This allows monitoring of battery status, optimisation of charge/discharge strategies, and cell balancing, effectively extending the overall service life of the energy storage system.

3. Standard Protection Rating

The GA-2012 has an IP21 protection rating, preventing ingress of small objects and making it suitable for indoor use. It operates within a temperature range of ‑15°C to 60°C and a relative humidity of 5%‑95% (non‑condensing), ensuring stable long‑term performance in typical indoor environments.

Product Parameter

Key Application Scenarios

1. Home Backup Power

During sudden grid outages, the GA-2012 provides continuous power to essential devices—indoor lighting, Wi‑Fi routers, small refrigerators, and mobile phone chargers—ensuring basic household electricity needs are met and eliminating the inconvenience caused by power interruptions.

2. RV / Mobile Power

Its lightweight and compact design makes it ideal for RVs, mobile homes, and small cabins in remote areas. When paired with solar panels and a battery bank, it creates a stable off‑grid power system for mobile lifestyles and remote living.

3. Apartment / Balcony PV Storage

Specifically designed for small‑sized homes and apartment balcony PV systems, the unit allows you to store electricity with just one or two solar panels. By using stored power during peak demand periods, you can effectively reduce electricity bills without extensive home renovations, requiring minimal installation space.

4. Communication Base Stations / Remote Area Power Supply

Suitable for communication base stations, border posts, scenic area management offices, and kiosks in off‑grid or unstable grid regions. It provides a solar‑powered storage solution that replaces traditional diesel generators, reducing dependency on the grid and enabling energy independence.

5. DIY PV System Projects

With standardised specifications and simple installation, the GA-2012 is perfect for PV enthusiasts and beginners building their own energy storage systems. Its use of universal components and low commissioning complexity makes it highly accessible and easy to get started with.

6. Emergency Power for Small Shops / Offices

It provides outage protection for retail POS systems, security cameras, and office communication equipment, preventing business interruptions and data loss caused by blackouts, thereby safeguarding the smooth operation of small and micro‑enterprises.

Customization Services

KTAC offers OEM/ODM services for the 2KW 12V Off Grid Solar Inverter, including:

1.Custom enclosure color and logo printing

2.BMS protocol tuning for third‑party batteries

3.Parameter presets (e.g., charge voltages, output frequency)

4.Packaging design and multilingual user manuals

Contact our technical team for a tailored solution.

Authoritative Certifications

The GA-2012 has undergone rigorous third‑party testing and holds multiple internationally recognised certifications, ensuring worry‑free customs clearance, system integration, and indoor installation worldwide.

Why Chooseour GA-2012?

The GA series covers a complete product line from 1200W to 12000W, meeting various power class requirements. As the representative 2000W model, the GA-2012 excels in the following scenarios:

·Entry‑level off‑grid systems: With a rated output of 2000W and surge capacity of 4000VA, it is sufficient for the basic power needs of small residences, RVs, and communication base stations.

·Lightweight installation: Weighing only 4.5kg with an ultra‑thin 100mm profile, it can be installed by a single person.

·High cost‑effectiveness: A reasonable initial investment provides a complete off‑grid power supply, with the flexibility for future system expansion.

·Versatile adaptability: From home backup to remote area power supply, one unit serves multiple purposes.

FAQ

1. Can the GA-2012 be paralleled for higher output?

No. The GA-2012 is designed for standalone operation only. For higher power requirements, please select other models in the GA series that support parallel connection.

2. Which battery types are compatible?

It supports both lithium and lead‑acid batteries. With RS485/CAN communication ports, it can intelligently interact with the BMS of most mainstream lithium batteries.

3. What is the difference between pure sine wave and modified sine wave output?

Pure sine wave output has a waveform identical to grid power, offering superior compatibility with all types of loads, especially inductive loads (motors, compressors) and precision electronics. The GA-2012 provides pure sine wave output, ensuring safe and efficient operation of connected devices.

4. What is the maximum PV input voltage?

The maximum PV open‑circuit voltage is 450V, with an MPPT operating voltage range of 30‑400V and a maximum PV input power of 3000W.

5. What is the maximum charging current?

The maximum PV charge current is 100A, the maximum AC charge current is 100A, and the combined PV+AC charge current can reach up to 150A.

6. Can this 2KW 12V Off Grid Solar Inverter be used outdoors?

The IP21 rating is for indoor use only. For outdoor applications, please install it in a weatherproof enclosure or choose our outdoor‑rated models.

7. What is the standard warranty period?

The standard warranty is 2 years, with extended warranty options available. Please contact our sales representative for detailed warranty policies.

Real Commitment

·20+ years of continuous power supply manufacturing experience (since 2004)

·3 factories, 8,000+ m² production floor

·100+ professional staff including dedicated QA and after‑sales engineers

·Exported to 30+ countries across Asia, Africa, Europe, and the Americas

·Clients include reputable companies and Tier‑1 distributors in Southeast Asia, South Africa, and the UK
