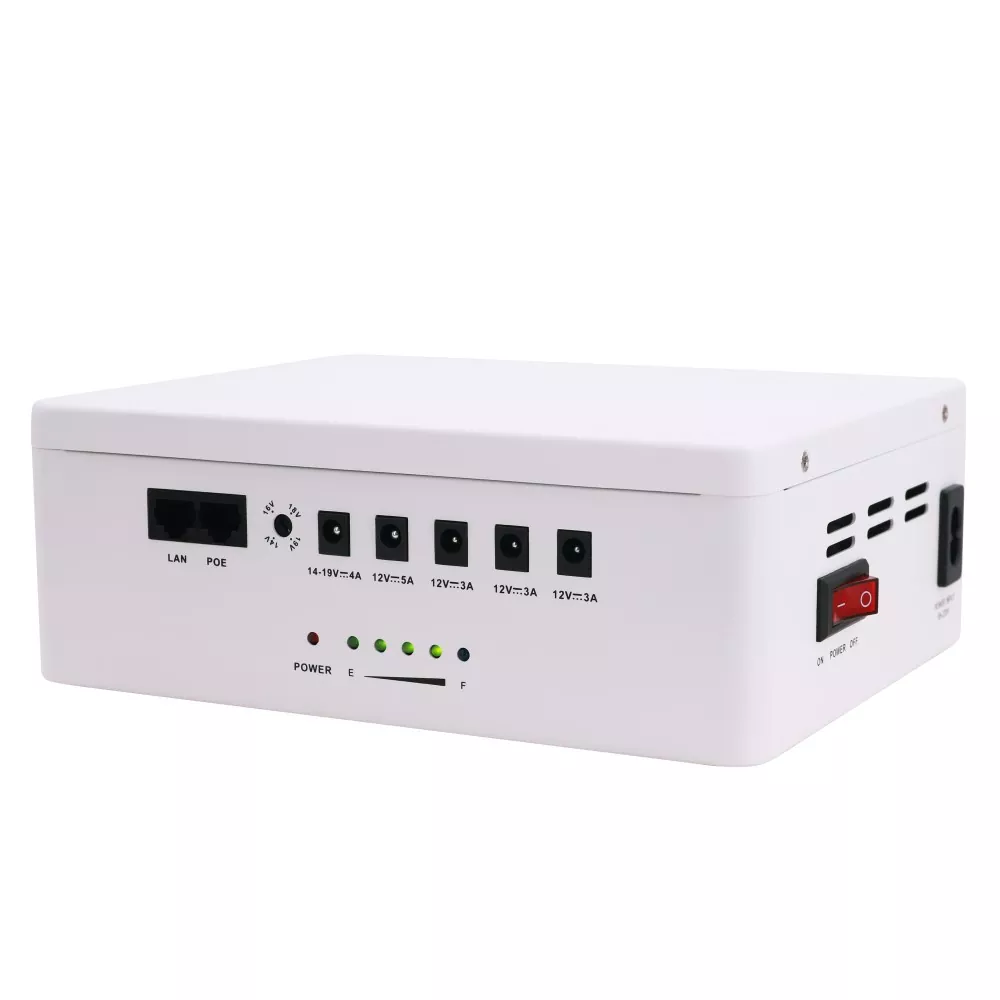

60W Mini DC UPS

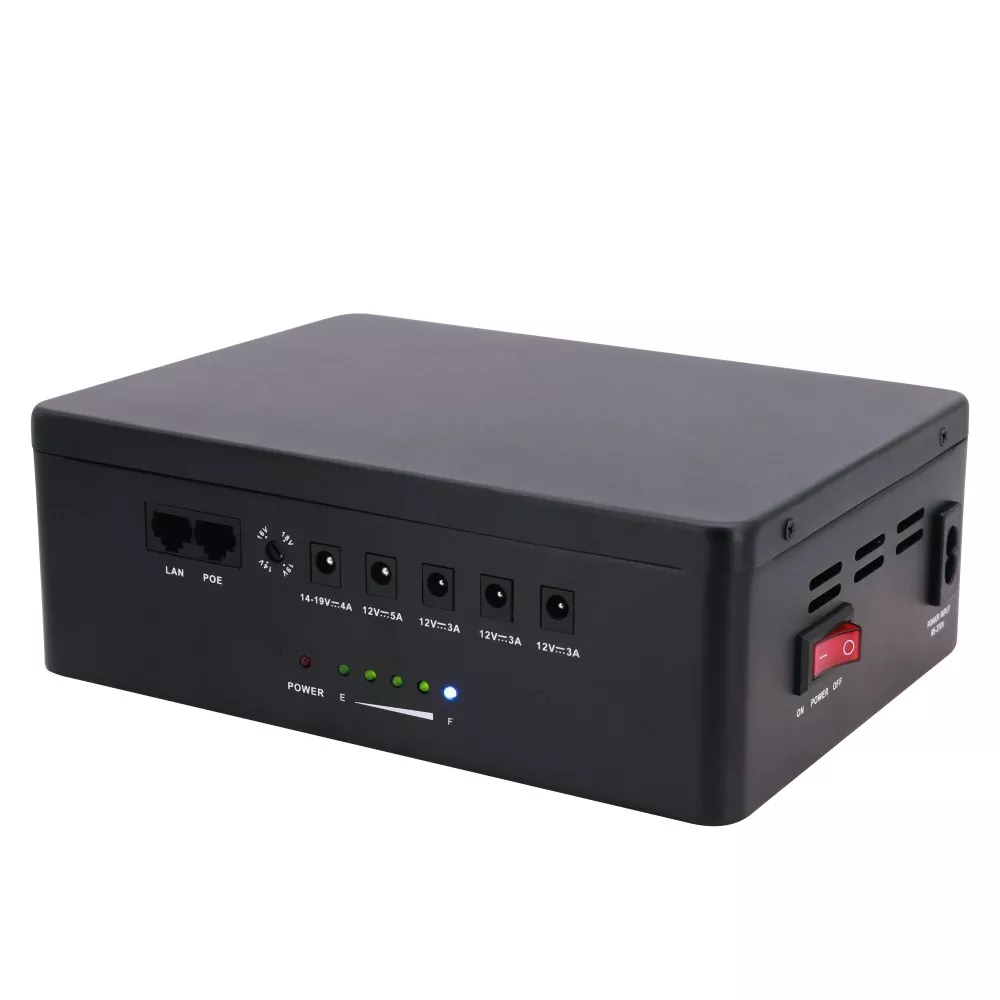

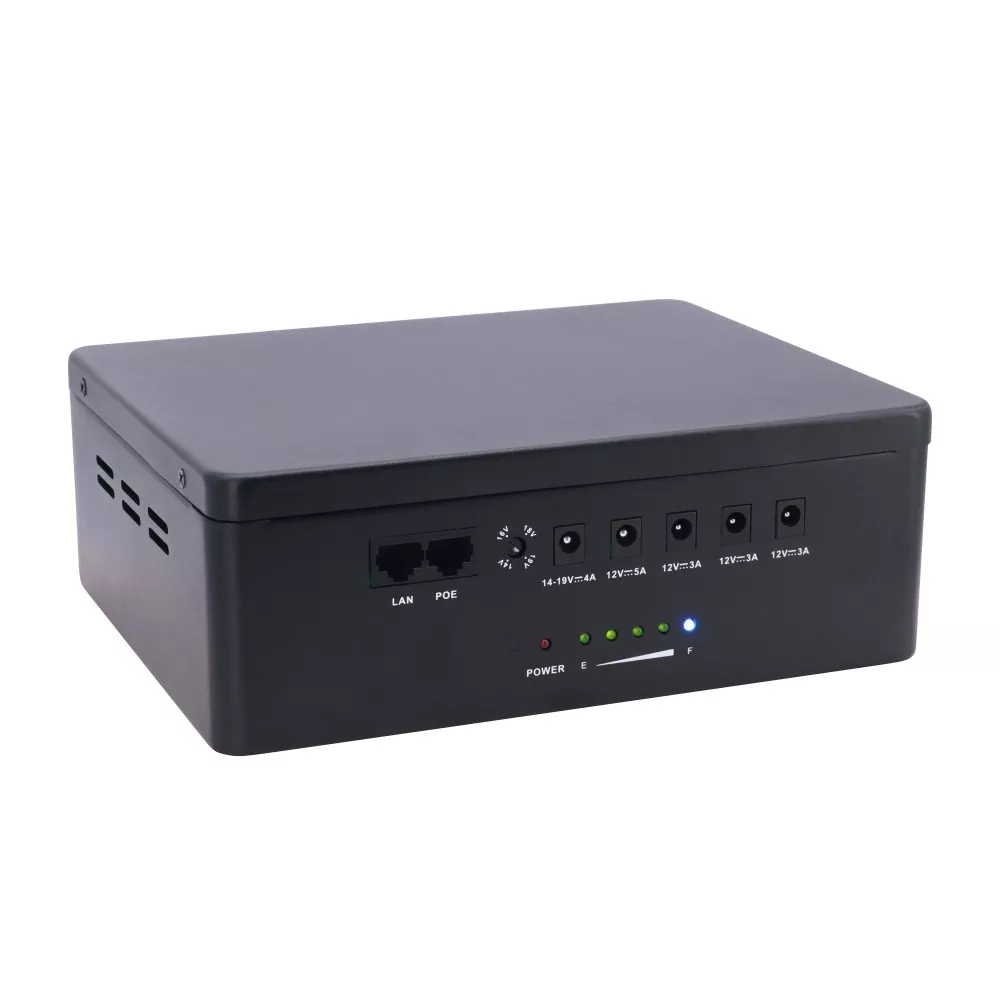

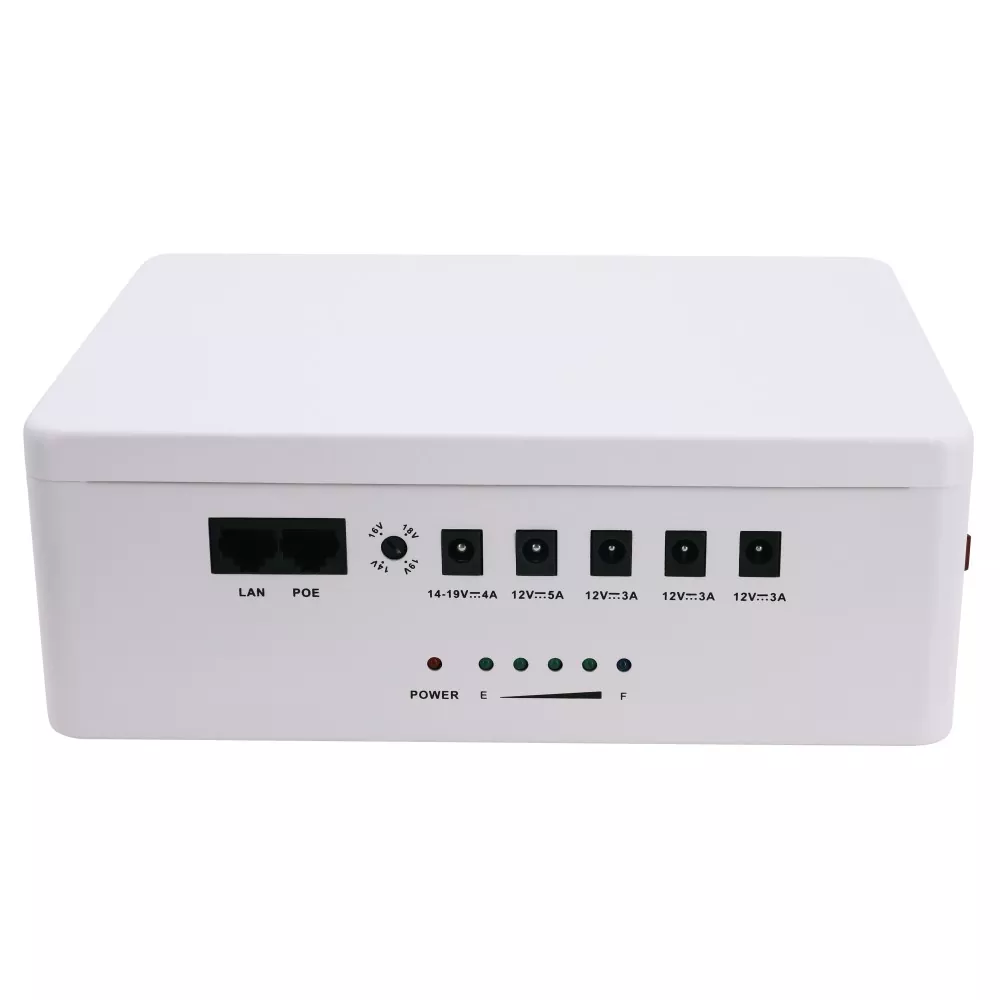

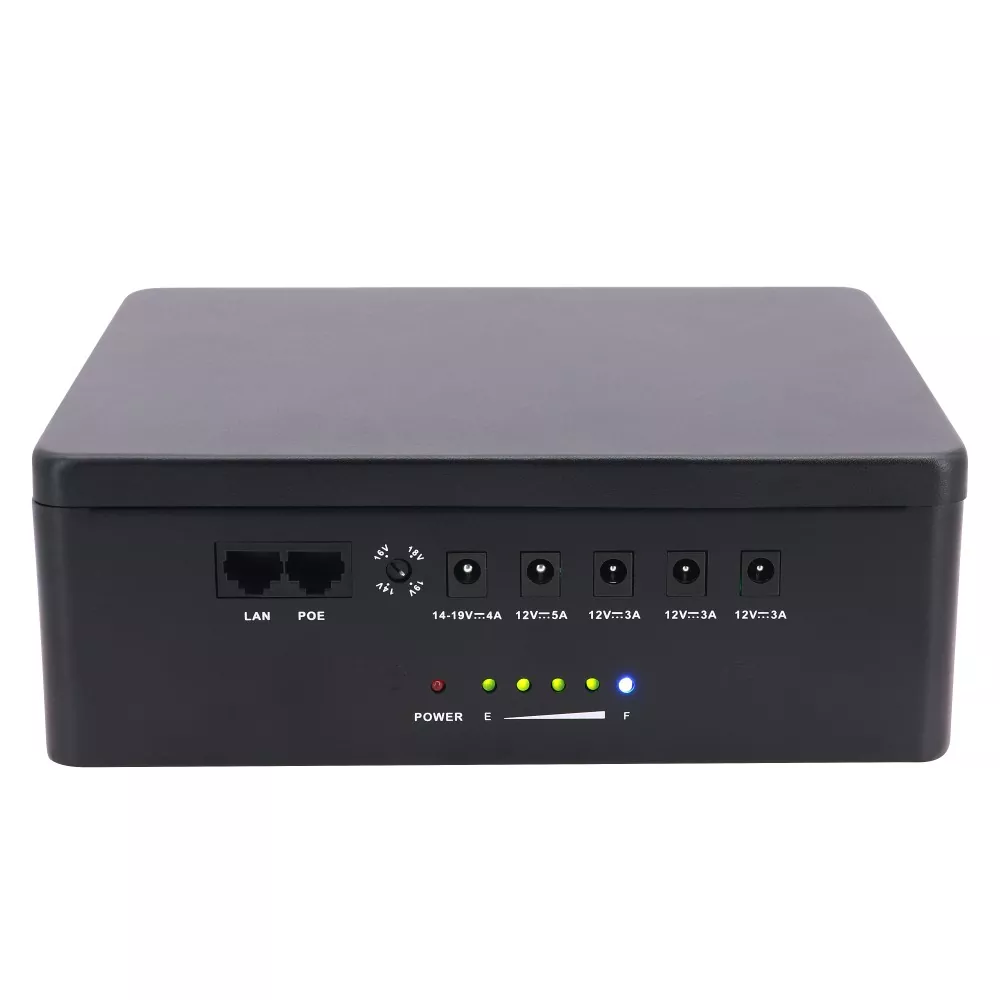

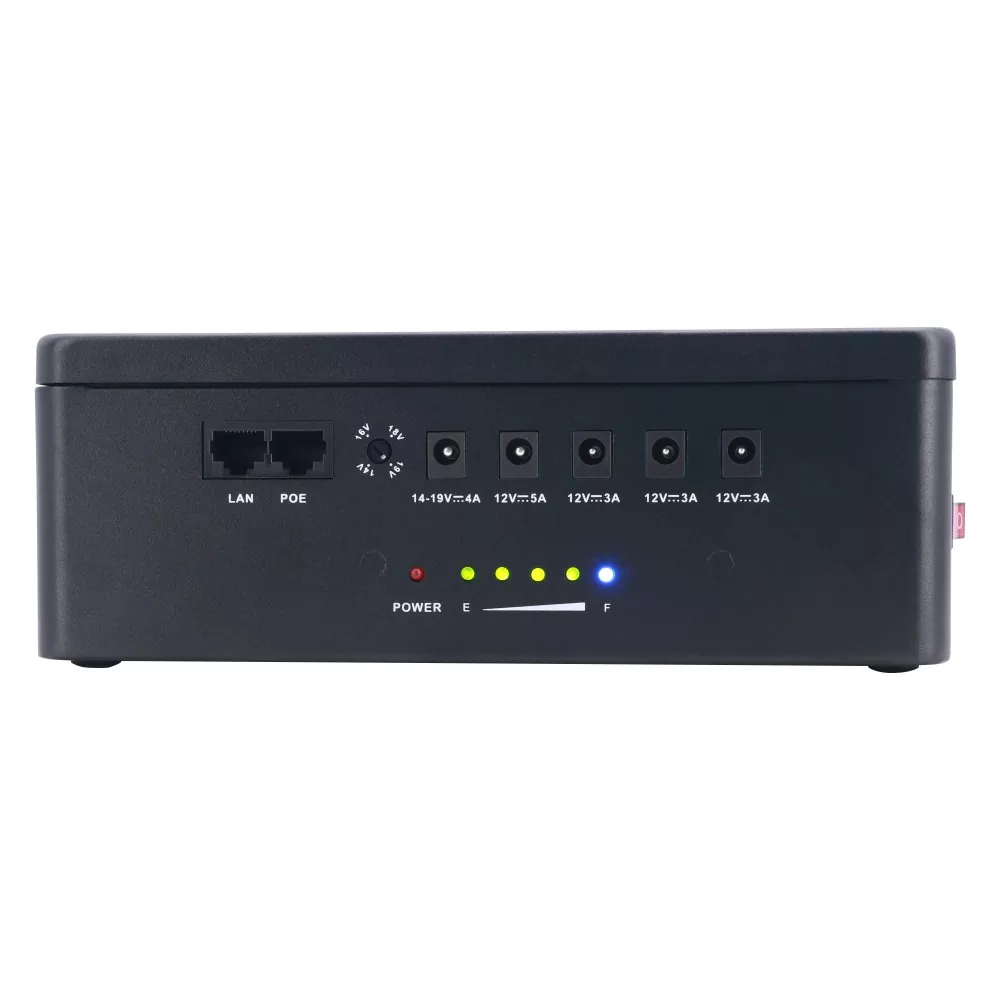

The DC6032 is a high-power DC UPS capable of 60W output, equipped with three brand-new 33140 LiFePO4 cells (equivalent to 60,000mAh and over 190Wh of energy). It innovatively offers a wide-range 14–19V output port capable of directly powering laptops, portable monitors, and industrial controllers, while retaining a 12V port and PoE functionality to support optical modems, routers, and network cameras.

Key features include CPU-controlled voltage regulation, resettable thermal protection, and zero-switchover uninterruptible power delivery. It is ideal for scenarios such as mobile offices, outdoor exhibition booths, and low-voltage security systems, meeting diverse voltage requirements with a single unit.

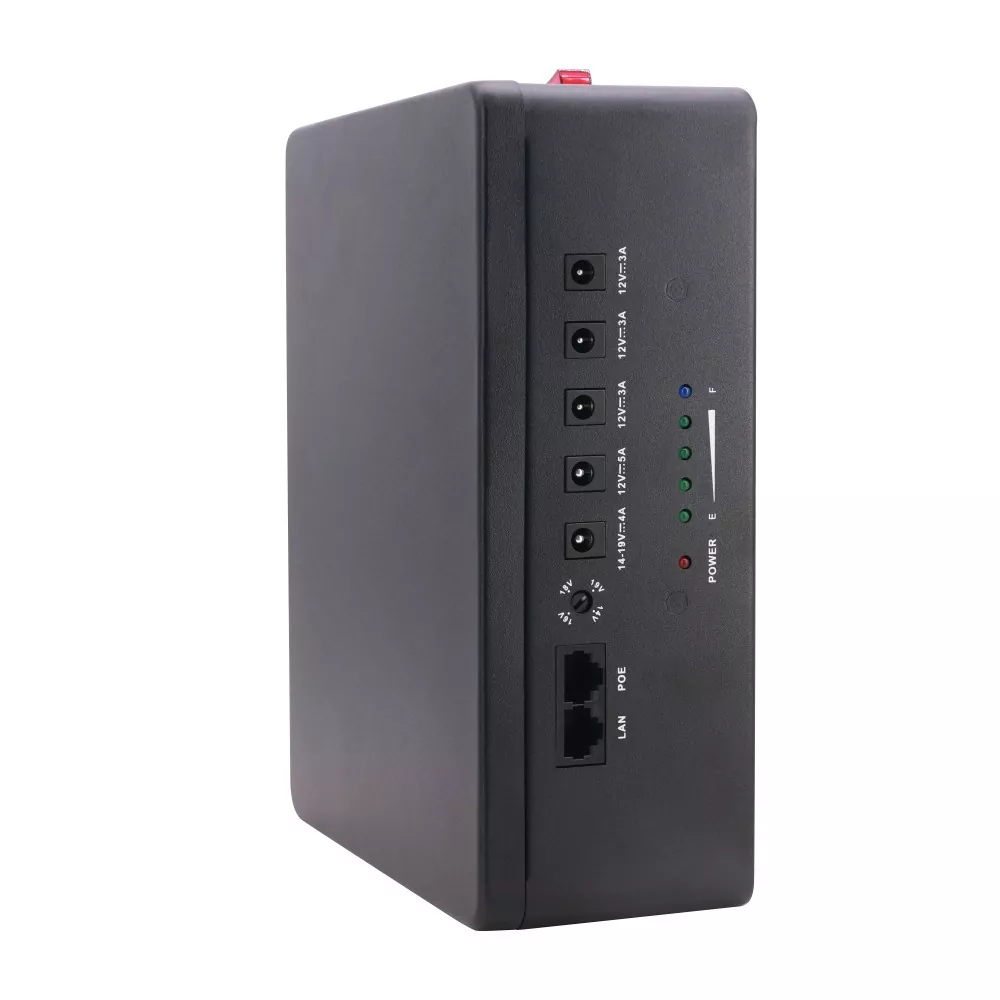

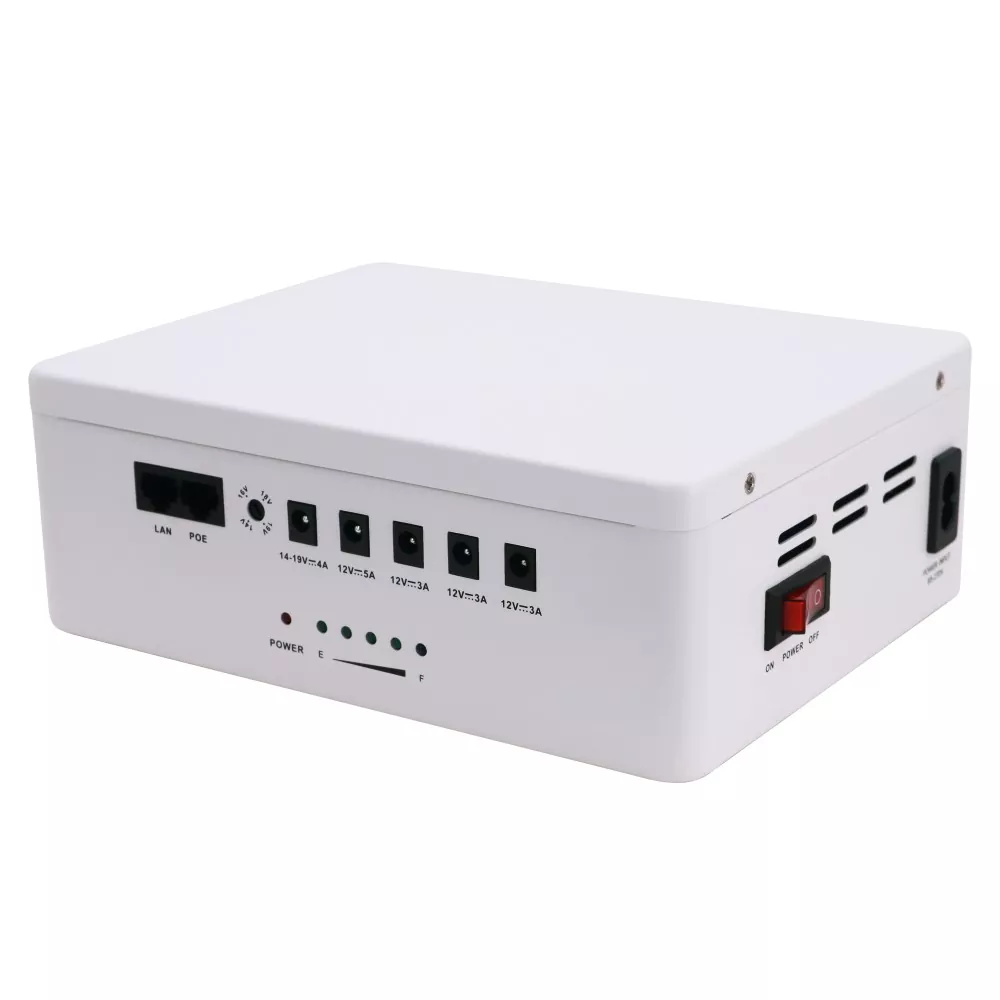

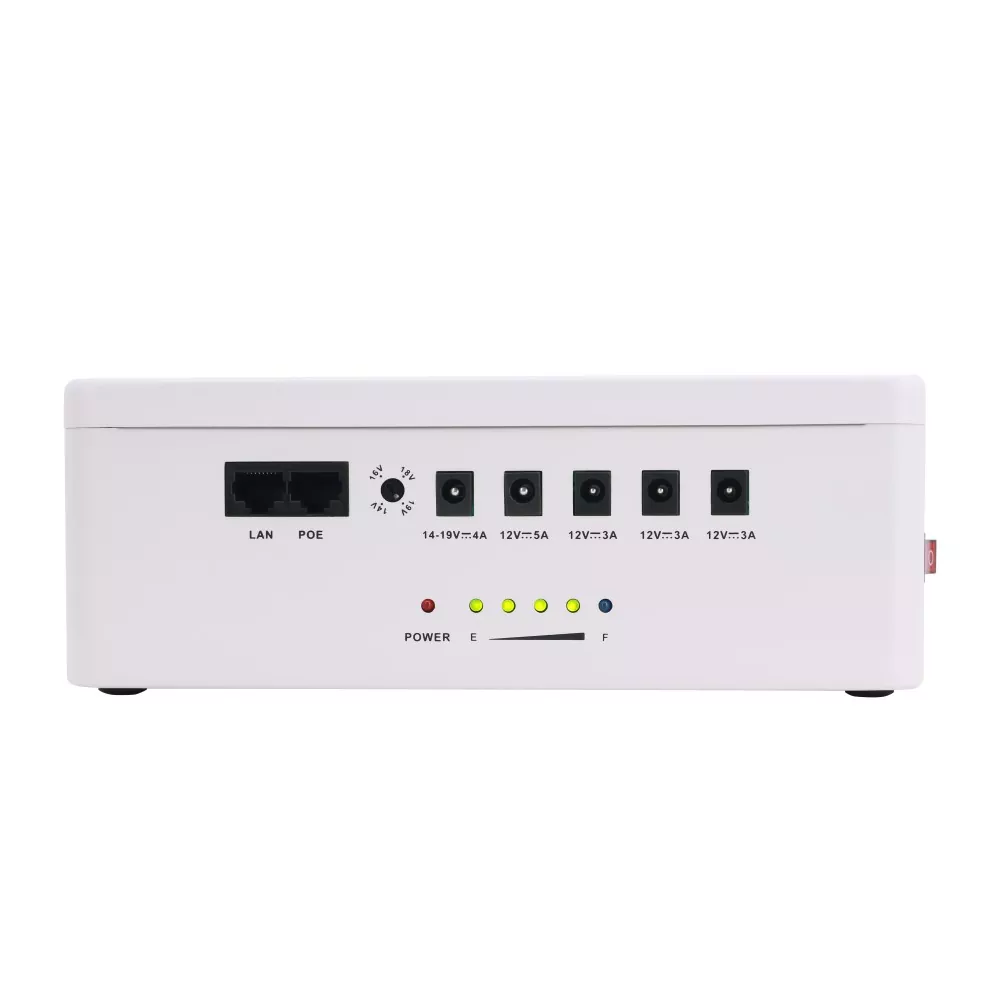

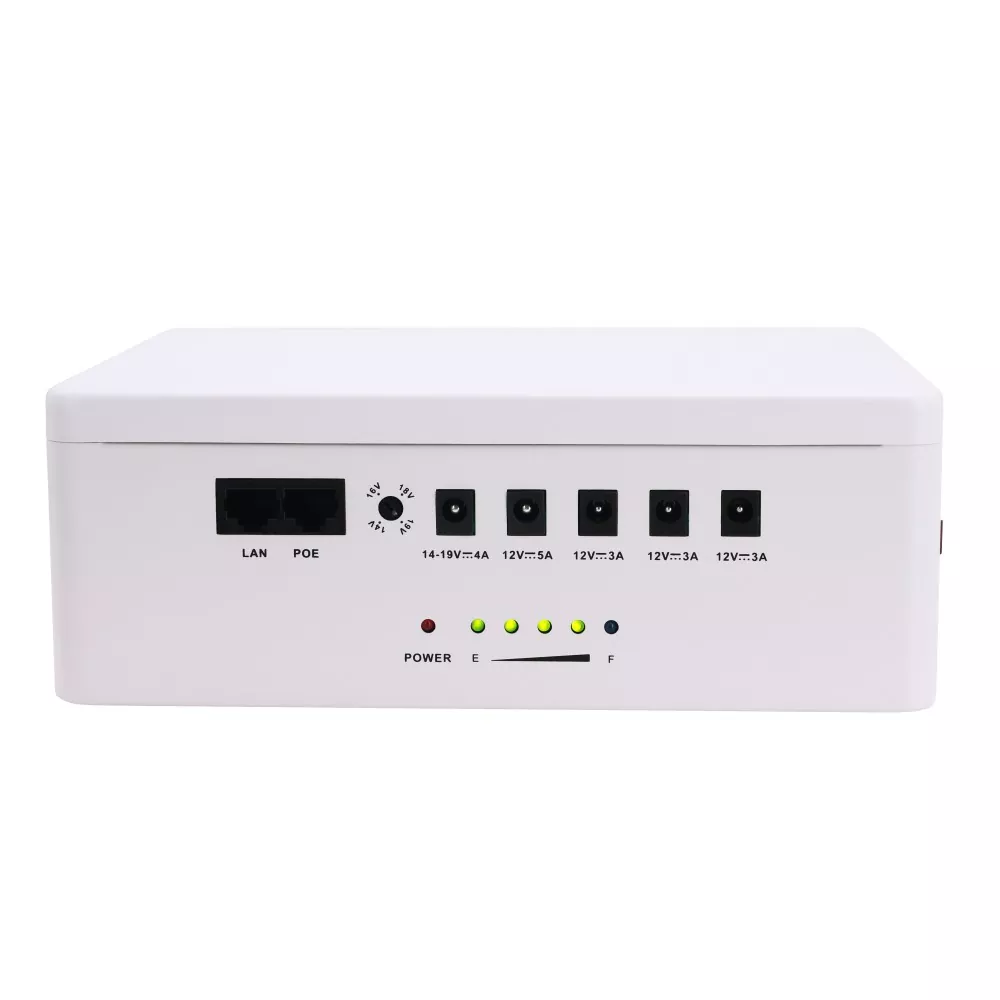

Breaking through the limitations of traditional 12V models, this 60W Mini DC UPS provides both adjustable/fixed 14–19V and standard 12V output ports, enabling direct power supply to devices like laptops, portable monitors, industrial control terminals, and 4G/5G routers.

It also supports PoE power delivery, facilitating centralized backup power for network equipment. Advanced features including intelligent CPU control, resettable thermal protection, and seamless switching technology—ensure the continuous operation of critical applications.

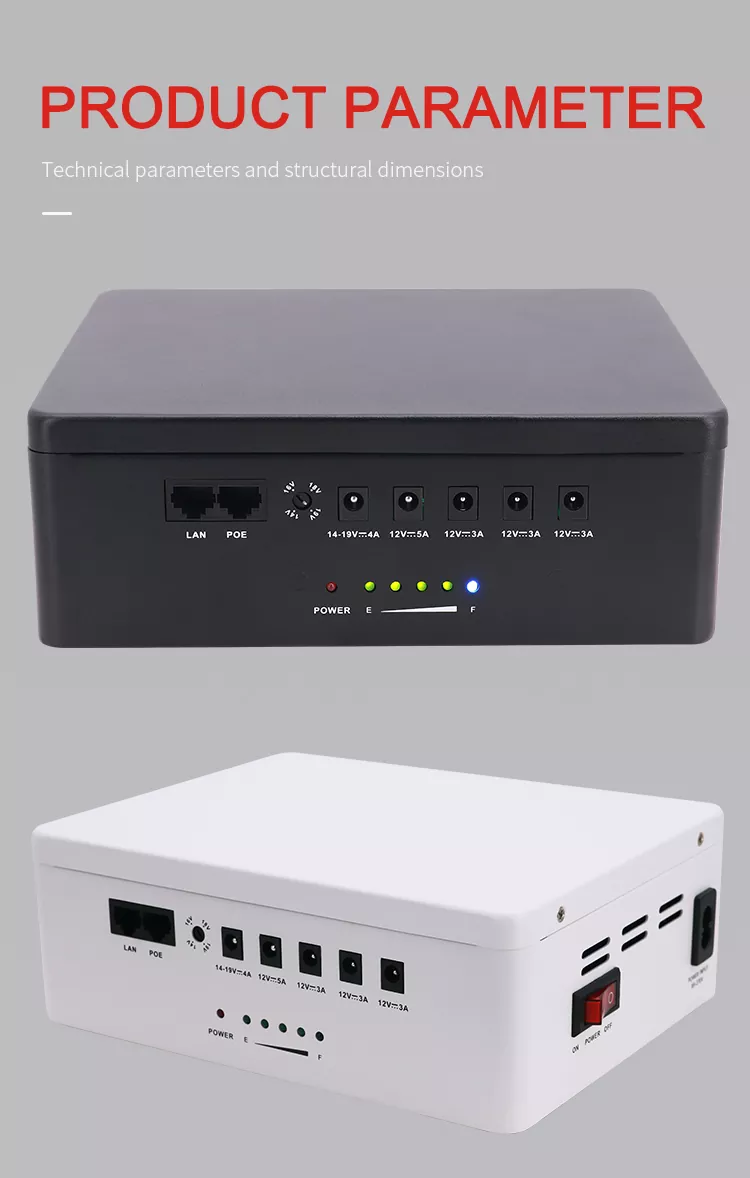

Product Parameter

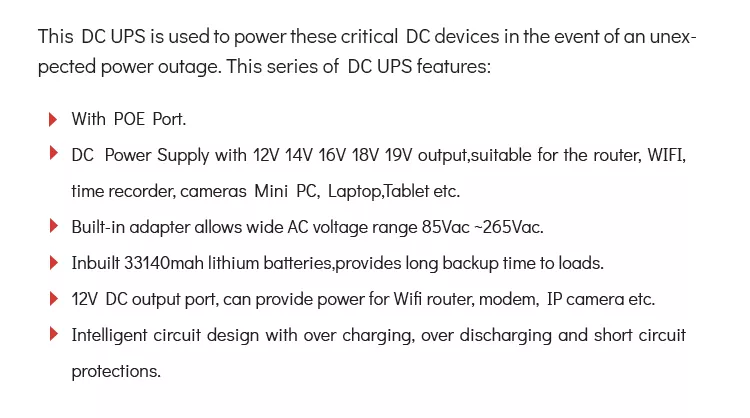

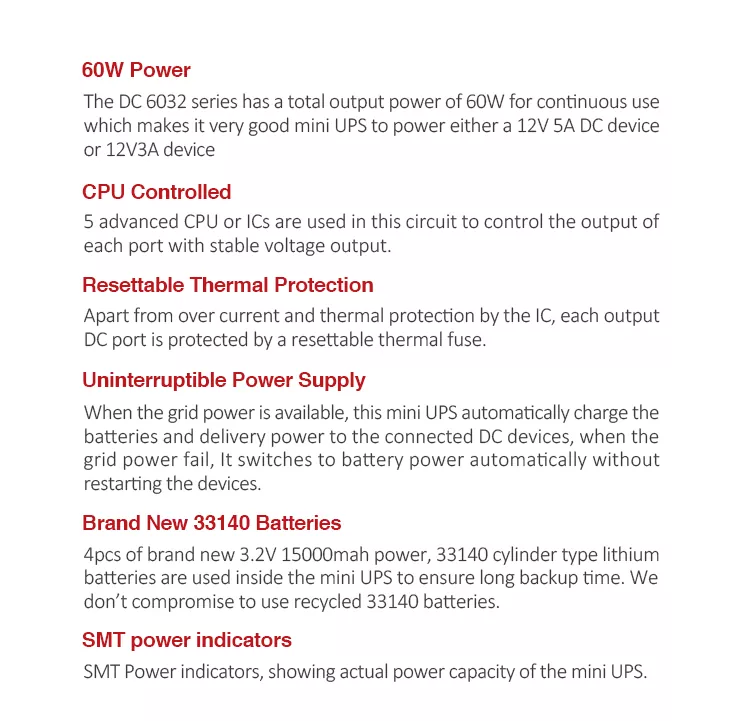

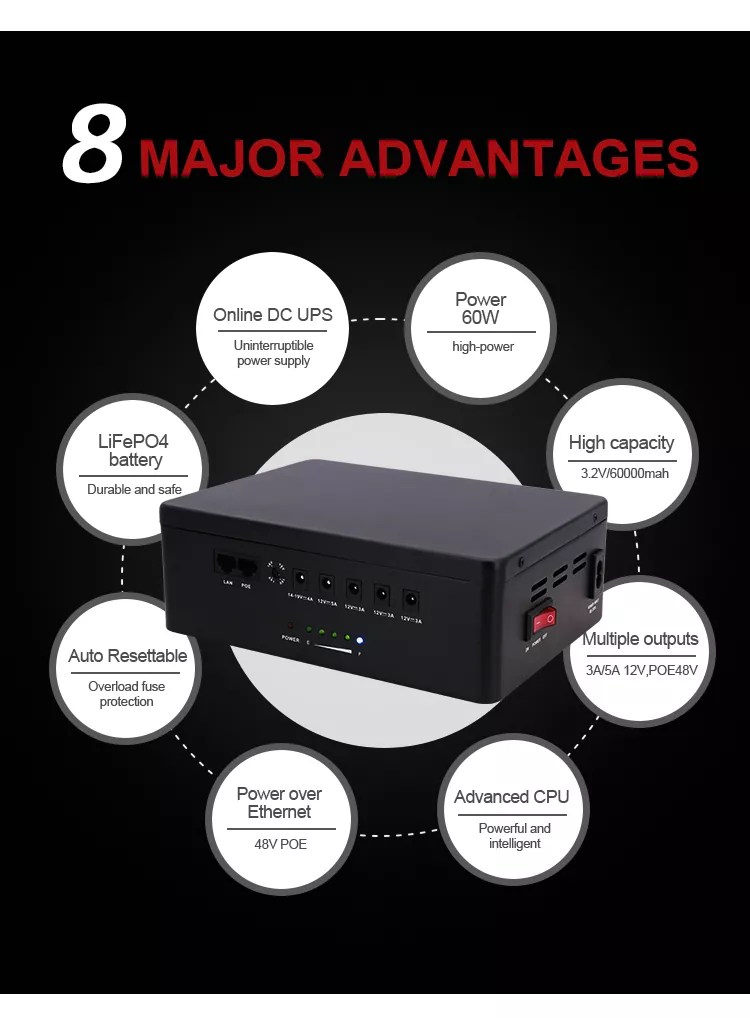

Key Features

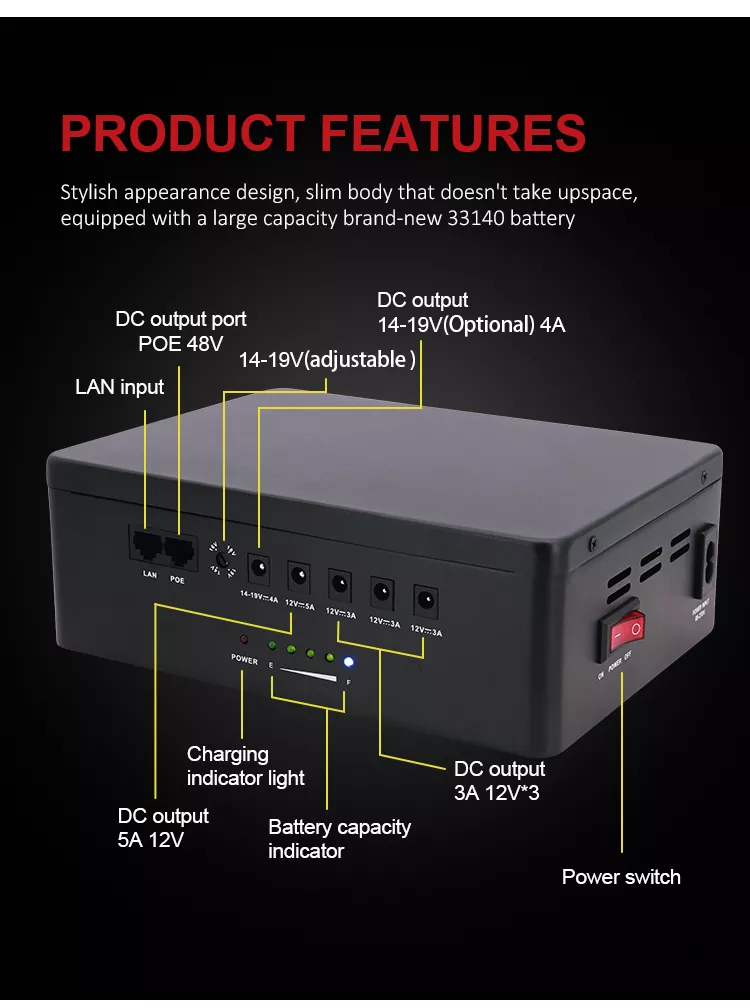

1. Wide Voltage Output

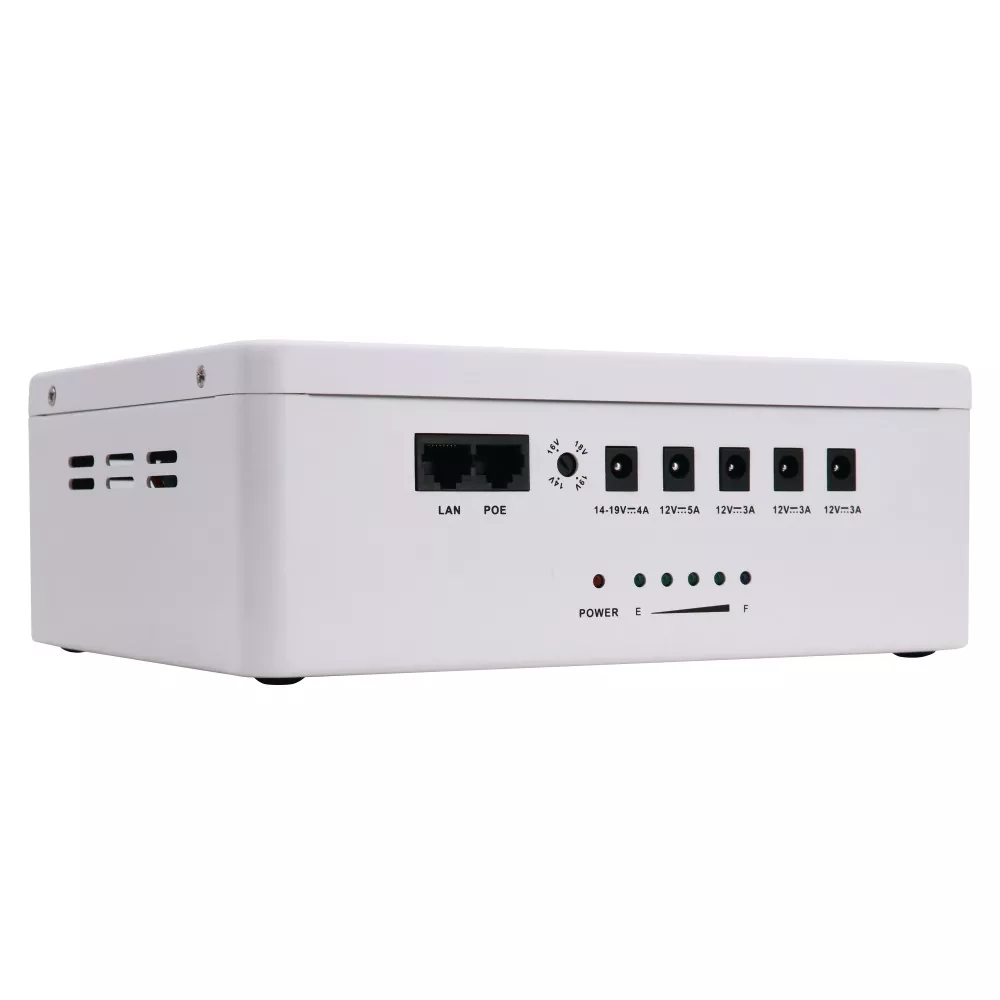

While traditional Mini UPS units typically offer only 5V, 9V, or 12V, this 60W Mini DC UPS provides additional voltage ports (14V–19V), making it compatible with:

· Laptops (most require 19V)

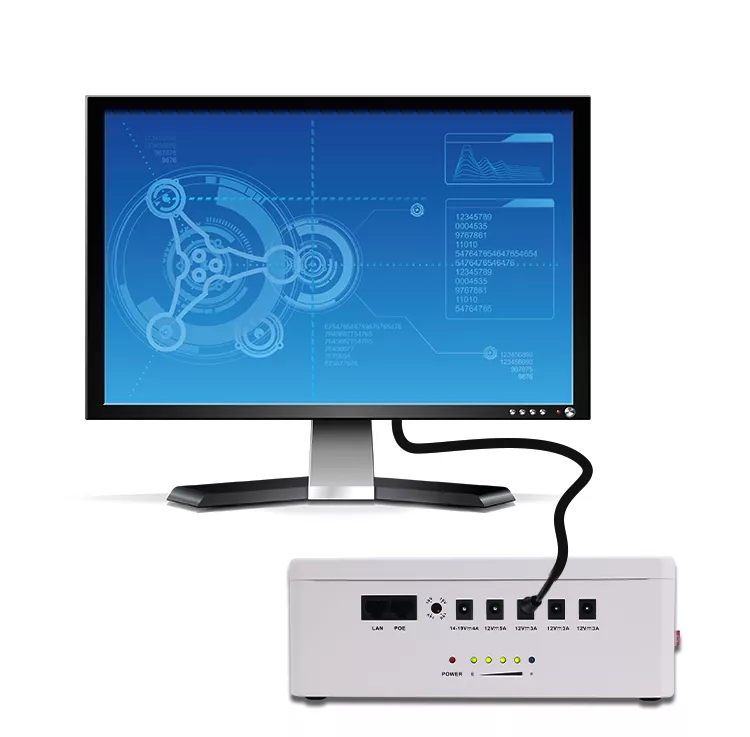

· Portable monitors (12V–19V)

· Industrial PLCs and industrial PCs

· 4G/5G CPEs and WiFi 6 routers (some require 15V or 18V)

It also retains standard 12V ports, ensuring compatibility with devices such as optical modems, surveillance cameras, and network switches. A single UPS unit meets diverse voltage requirements.

2. 60W Continuous Output

With a total power output of 60W—surpassing standard 40W models—it supports devices requiring 12V/5A or 19V/3.15A. It can even simultaneously power a laptop (approx. 45W) and a router (approx. 10W), ensuring uninterrupted operation during brief power outages or voltage fluctuations.

3. Premium 33140 Large-Format Cells

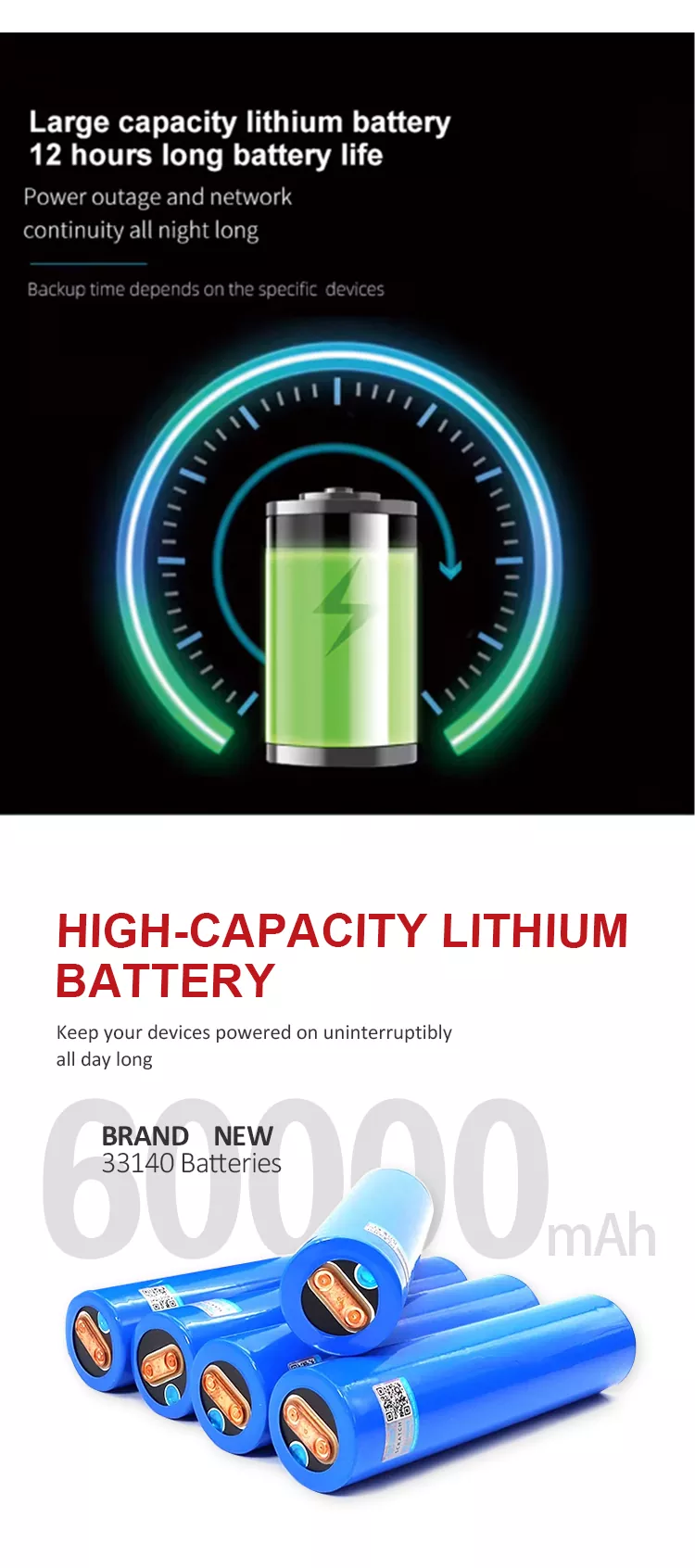

Utilizes three brand-new 33140 cylindrical LiFePO4 (Lithium Iron Phosphate) cells (single cell: 3.2V/15,000mAh; system equivalent: 3.2V/60,000mAh); no recycled or salvaged cells are used. The LiFePO4 chemistry offers high safety, a long cycle life (≥2,000 cycles at 80% DOD), and a wide operating temperature range (-20°C to 60°C for discharge), making it superior to ternary lithium batteries for long-term backup power applications.

4. Precision CPU Management

Features a built-in advanced microprocessor that monitors input/output status in real-time. It provides voltage regulation, current limiting, and ripple suppression for every output channel, ensuring no interference even when connected to sensitive audio equipment or precision measuring instruments. Additionally, independent resettable thermal fuses protect each output port, automatically resetting after an over-temperature event to minimize maintenance costs.

5. Zero-Transfer Switching + PoE Power Supply

When mains power is normal, the UPS supplies power directly to the load while intelligently charging the battery; during a power outage, it switches to battery power in less than 1 millisecond, ensuring connected devices do not reboot. Additionally, the product integrates PoE functionality (directly powering 802.3af/at compliant devices—such as IP phones, wireless APs, and network cameras—via Ethernet cables), simplifying low-voltage cabling. It is particularly suitable for offices, low-voltage equipment rooms, and security cabinets.

6. Multi-Level Battery Level Indication

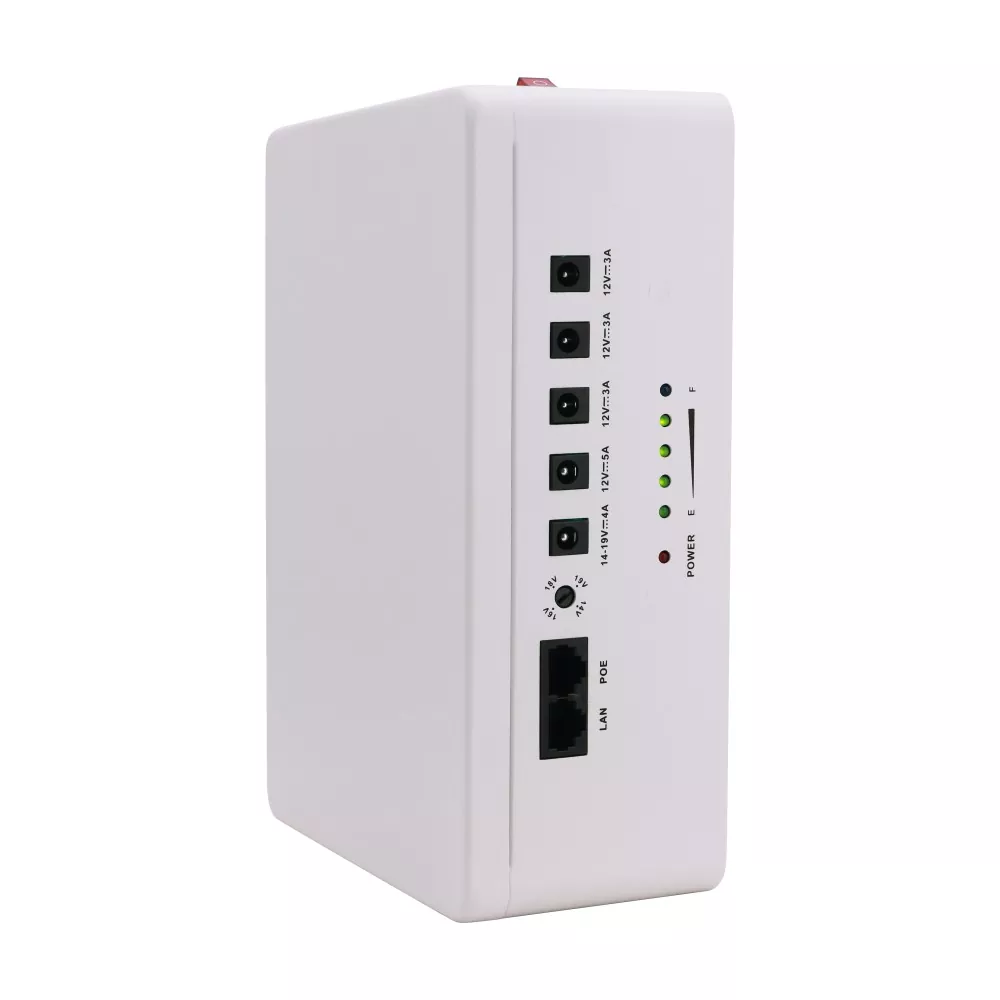

The panel features high-brightness LED indicators that display real-time battery levels (25% / 50% / 75% / 100%) and charging status. Users can instantly see the remaining backup time, allowing them to save data or prepare for a manual shutdown in advance.

Product Applications

1. Mobile Office & Remote Conferencing

Devices: Laptops (19V), Wi-Fi routers, mobile phones (via USB adapter; requires an additional adapter cable).

Pain Points: Temporary power outages causing meeting interruptions or unsaved documents.

Solution: The DC6032-V80CH connects directly to laptops via 19V output, maintaining operation for 2–4 hours (depending on laptop power consumption) and keeping the network connected, allowing users to finish work or shut down properly.

2. Outdoor Temporary Booths / Markets

Devices: Portable POS terminals (12V), advertising displays (12V or 19V), 4G routers.

Advantages: No need to search for mains power outlets; fully charging the UPS beforehand supports half a day of business operations. Wide-voltage output eliminates the need to carry multiple power adapters.

3. Industrial Automation Production Lines

Devices: PLC controllers, sensors, small HMI touchscreens (typically 24V, though some are 19V or 12V).

Value: Prevents production line downtime and data loss caused by voltage dips or brief power outages. Its 60W power output is sufficient to power multiple low-consumption control devices, and RS485 communication support (please verify if this specific model includes a communication port) enables remote status monitoring.

4. Security Surveillance and Network Server Rooms

Equipment: PoE cameras, wireless APs, routers, NVRs.

Deployment: Utilize the DC6032-V80CH's PoE function to directly power and transmit data to network devices, while using the 12V port to power optical modems or switches. This provides a comprehensive backup power solution for low-voltage systems without requiring an additional PoE switch.

Customization Services

KTAC supports OEM/ODM services, including:

· Housing color and logo printing

· Packaging design and user manual localization

Please contact our sales team for detailed customization plans and minimum order quantities (MOQ).

FAQ

1. What is the actual battery capacity of the DC6032?

The product is rated at 60,000mAh; this figure is based on the battery pack's capacity at an equivalent voltage of 3.2V. The actual energy is approximately 3.2V × 60Ah = 192Wh. At a 19V output, the usable capacity is approximately 192Wh / 19V ≈ 10.1Ah (i.e., 10,100mAh @ 19V). Please calculate the actual backup runtime based on your load voltage.

2. Can it power a laptop and a router simultaneously?

Yes, provided the total power consumption does not exceed 60W. For example: Laptop (45W) + Router (10W) = 55W; this leaves a 5W margin for stable operation. It is recommended to limit the laptop charging power to 45W.

3. Does the PoE output require additional configuration?

The PoE function operates in "auto-detect" mode; simply plug in a standard PD (Powered Device) to initiate power delivery. If forced power output or voltage adjustment is required, please refer to the user manual or contact technical support.

4. What is the battery's lifespan?

The LiFePO4 battery has a cycle life of approximately 2,000 cycles (at 80% depth of discharge). Assuming two power outages per week (approx. 100 cycles per year), the theoretical lifespan is up to 20 years. Even with one cycle per day, it can last 5–6 years. Actual lifespan depends on temperature and depth of discharge.

5. Is the 14–19V port fixed-voltage or adjustable?

The product comes standard with multiple fixed-voltage outputs (e.g., 14V, 19V); please refer to the actual silkscreen markings on the unit. Some models support fine-tuning (via a built-in potentiometer); please verify this when purchasing.

6. Does the 60W Mini DC UPS support solar charging?

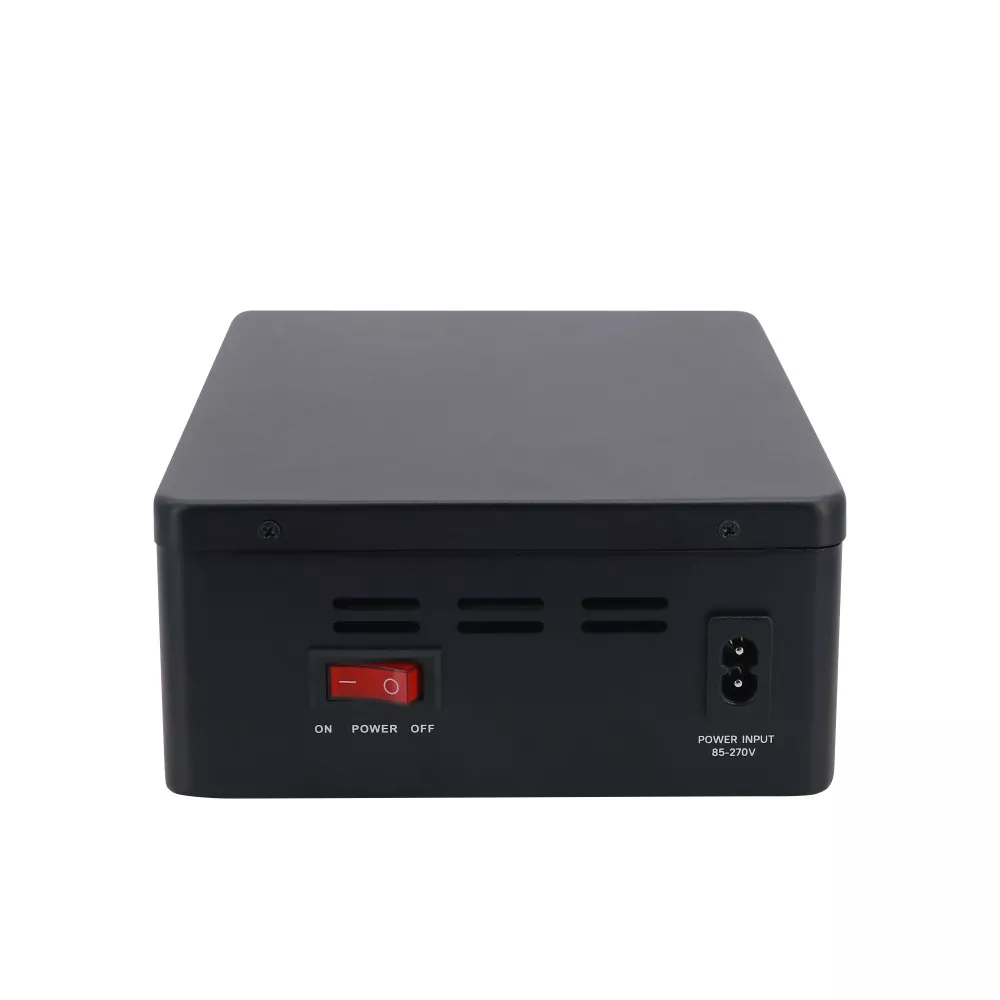

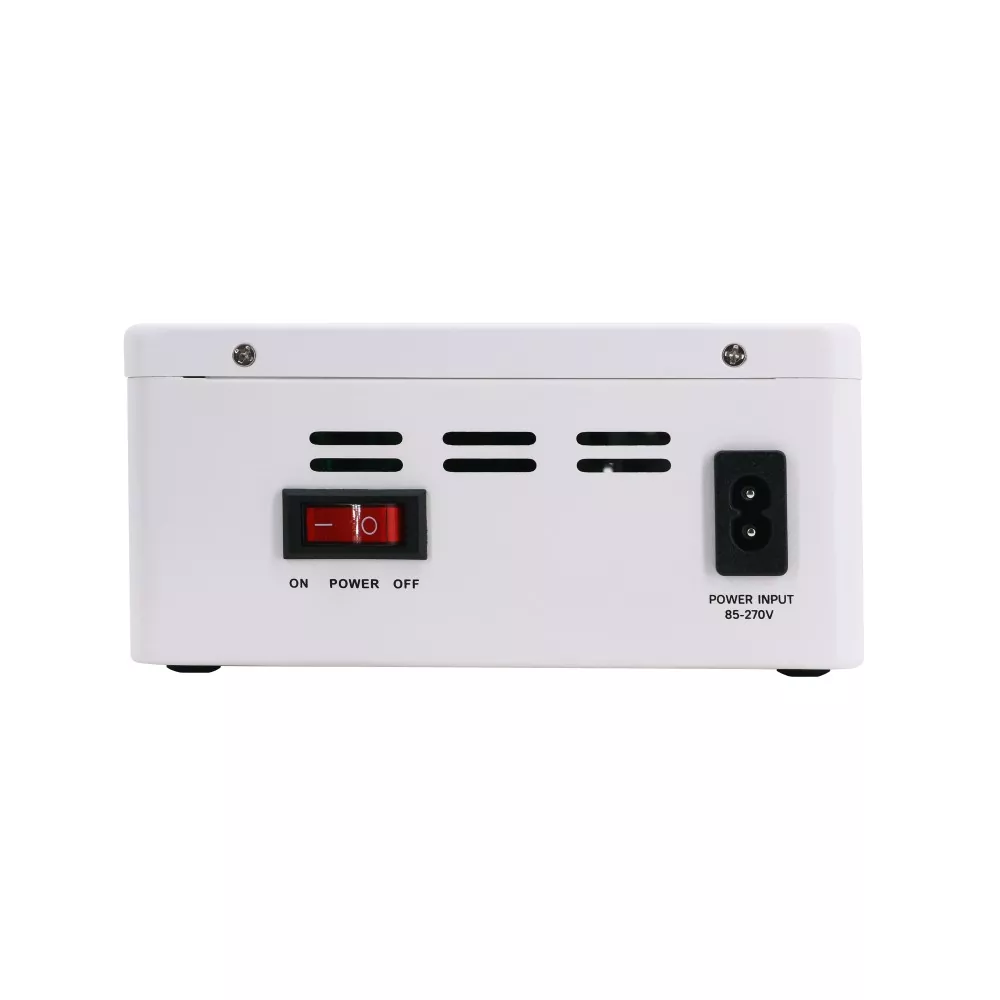

Standard models support AC input only (85–265V). If solar charging is required, a customized version is available (featuring solar MPPT input for 18V–36V).
