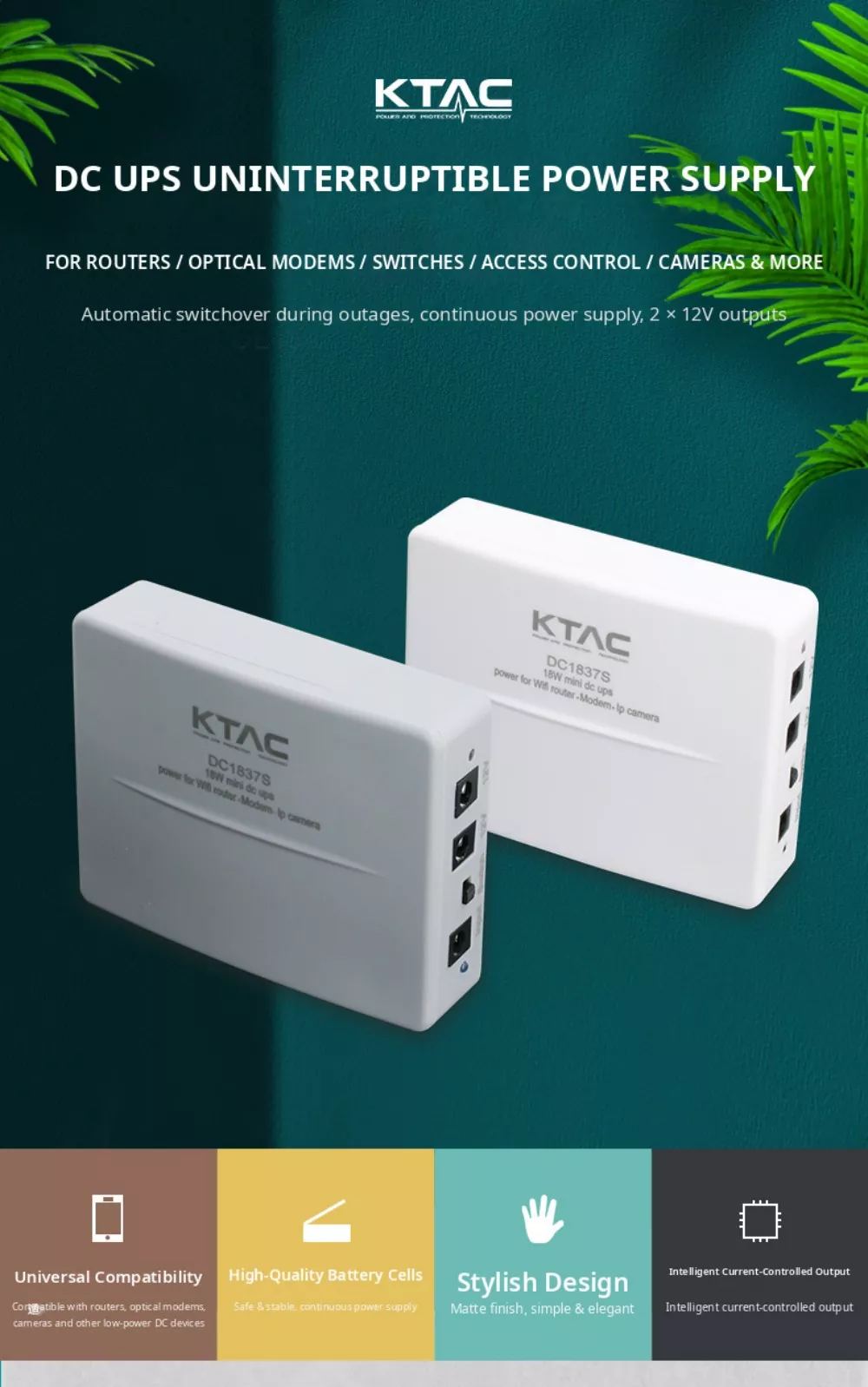

18W Mini DC UPS

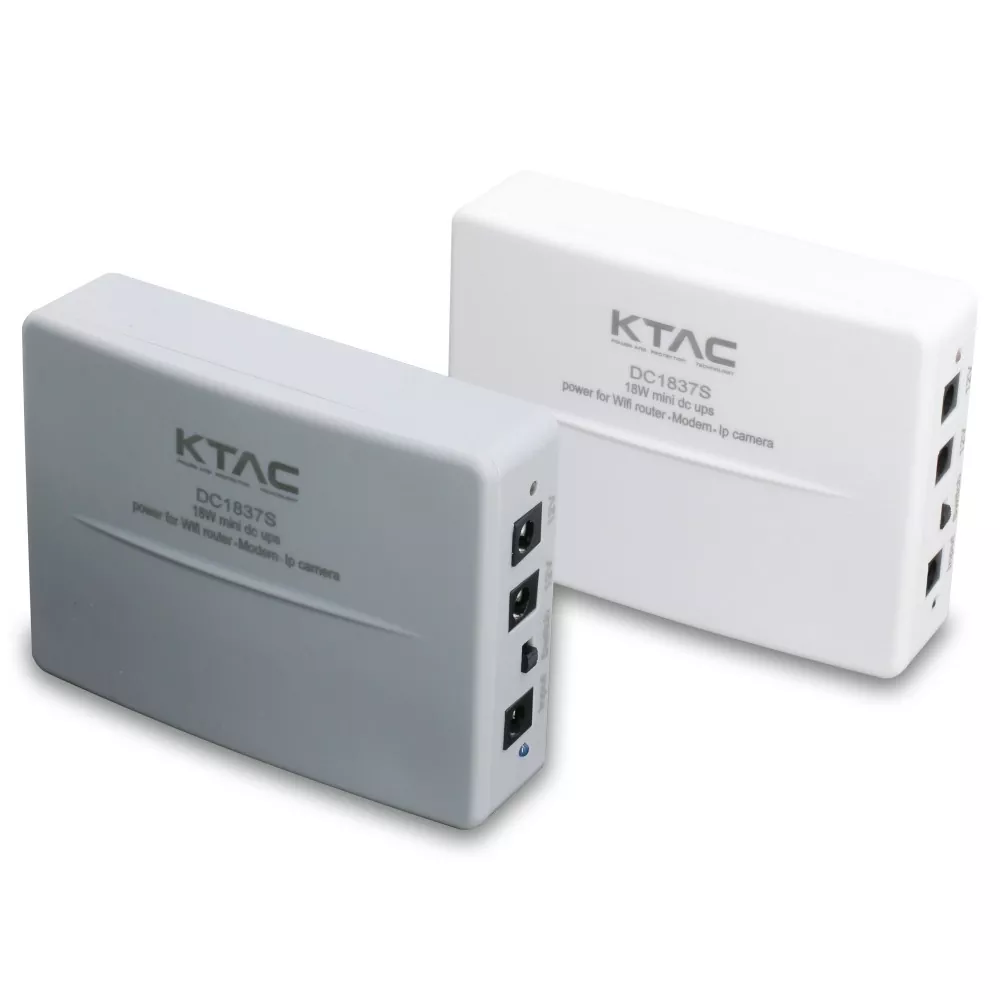

In an era where an increasing number of electronic devices rely on DC power, even a brief blackout can cause network interruptions, surveillance failures, or the loss of time-sensitive data. The DC1837S series mini UPS was created to address this very issue. Unlike traditional tower-style UPS units, the 18W Mini DC UPS features a slim, compact design. It can be placed directly inside low-voltage distribution boxes, on desktops, or next to equipment, providing quiet, efficient backup power for 12V/1A–2A loads.

The device houses two 3.7V 2600mAh 18650 lithium batteries (with optional 5000mAh/5200mAh upgrades available), offering a total energy capacity of approximately 19.2Wh.

Under normal mains conditions, the UPS automatically charges the battery while supplying power directly to the load. During a power outage, it switches to battery power within milliseconds, ensuring connected devices do not reboot. Real-world testing shows that a typical 12V/1A router can operate for approximately 3 hours on this unit—sufficient for most temporary power outages.

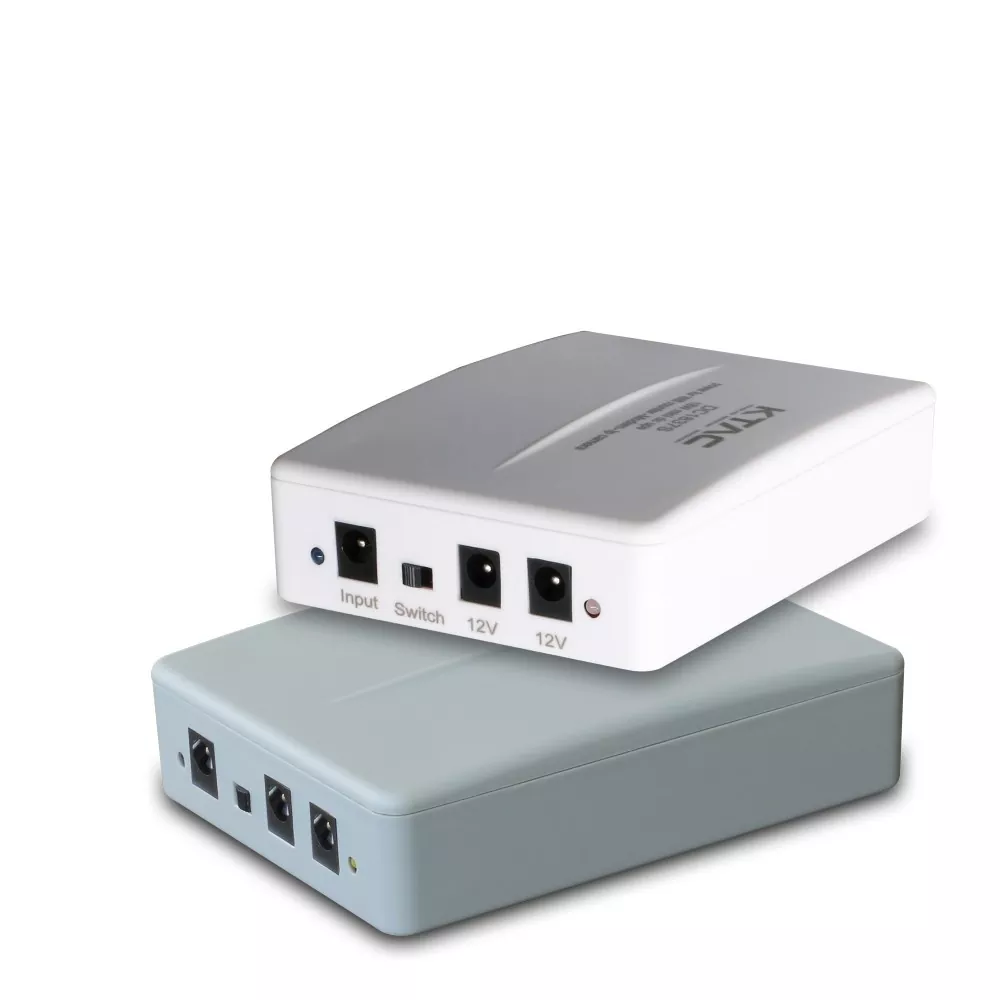

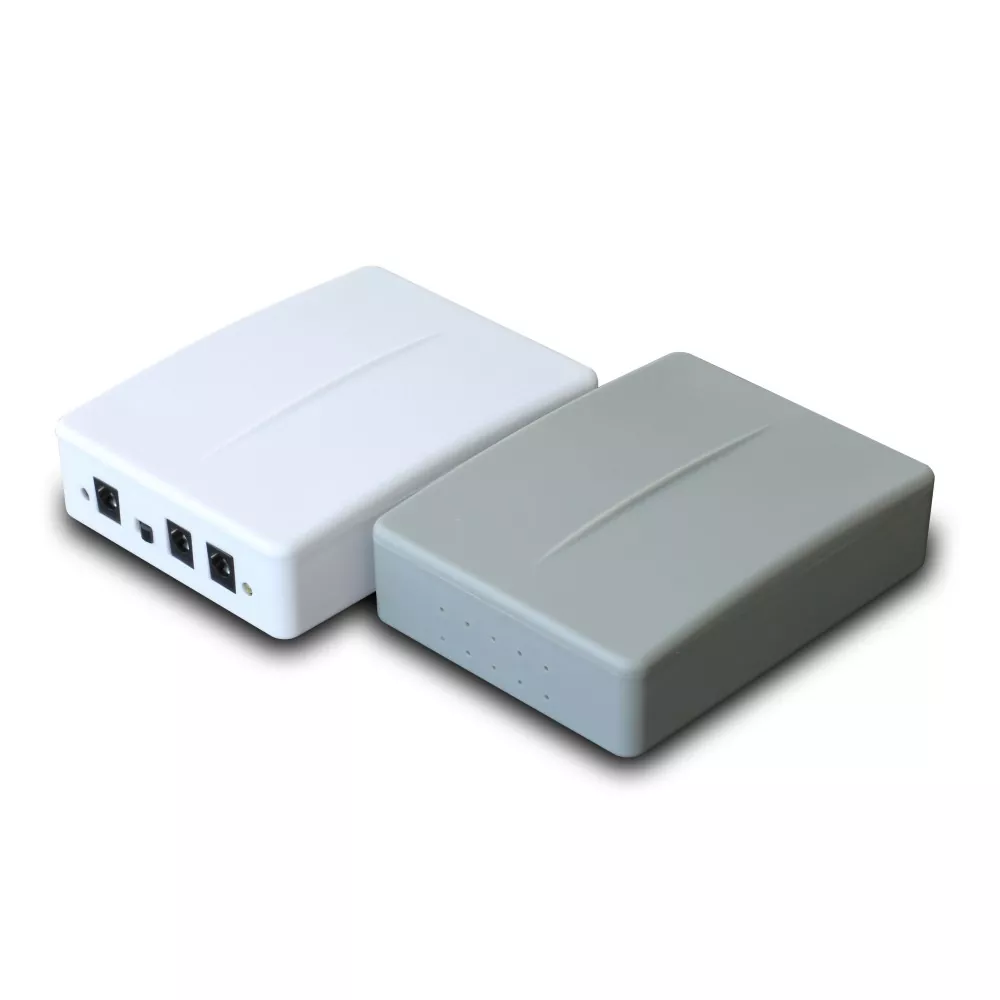

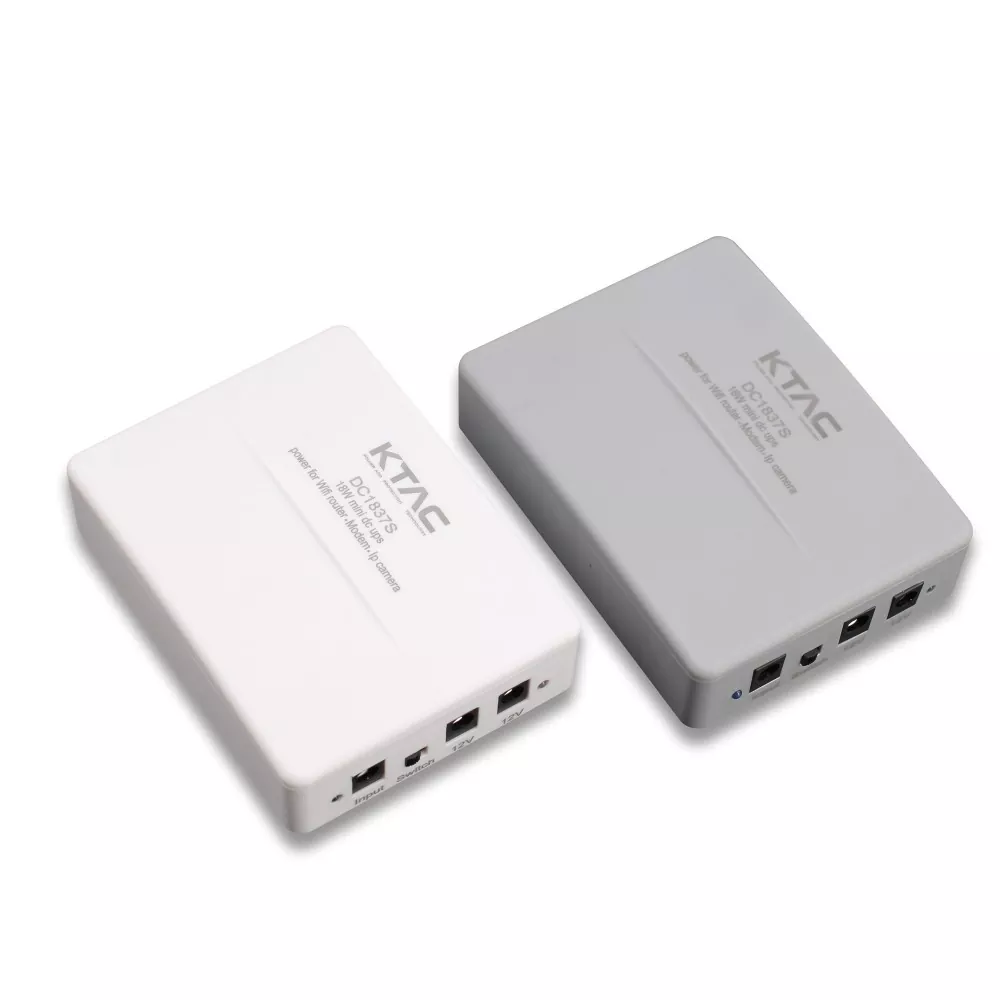

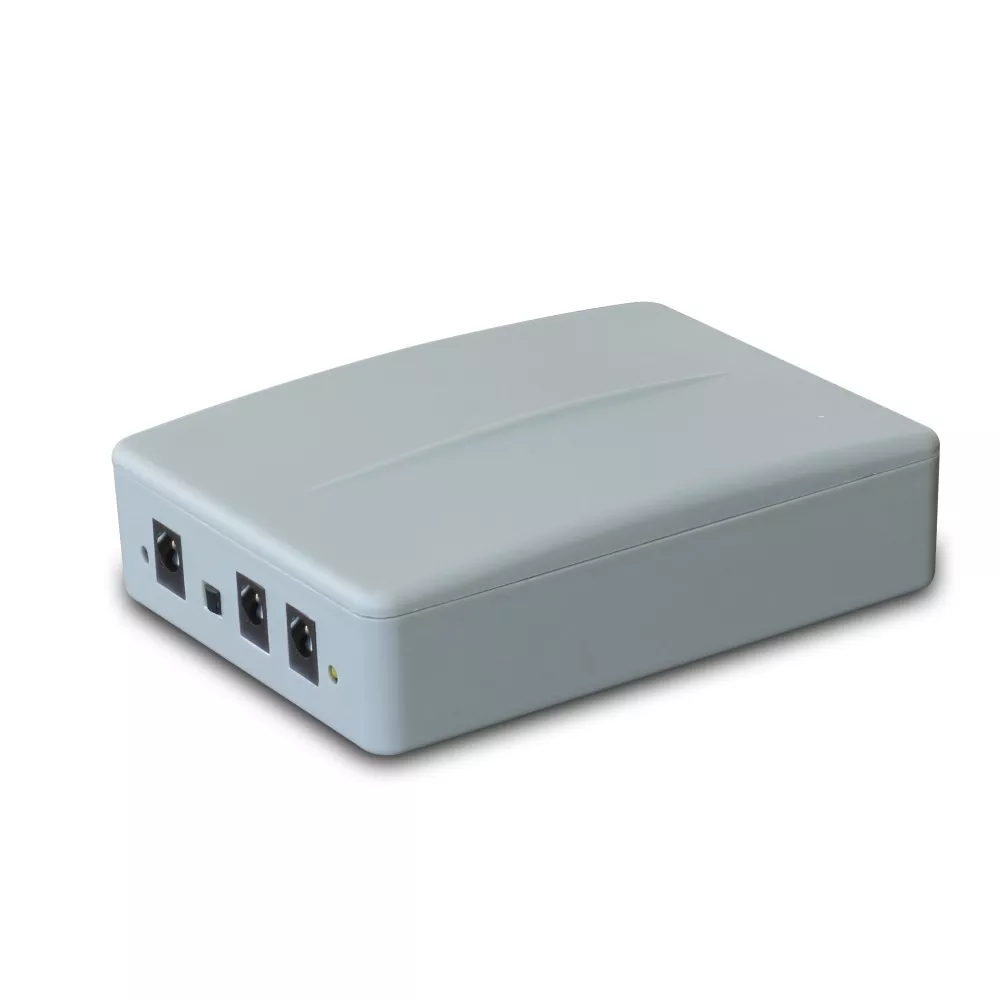

The DC1837S is equipped with two DC output ports, each featuring a resettable thermal fuse. Combined with internal voltage regulation controlled by multiple CPUs and ICs, this design effectively protects against overcurrent, overheating, and short-circuit risks. LED indicators display remaining battery levels in real-time, and the unit is available in white, gray, or black casings to complement various interior styles.

Why choose this Mini DC UPS?

1. Millisecond-level seamless switching

Utilizing hardware-based rapid switching circuitry, the transition between mains power and battery power occurs without rebooting the device, ensuring uninterrupted network calls, video surveillance, and data uploads.

2. Dual-Channel Output for Flexible Compatibility

Features two 12V DC output ports, each supporting up to 1.5A (total power: 18W). 18W Mini DC UPS can simultaneously power a router and an optical modem (or surveillance camera), or deliver a single 2A output to drive higher-power 12V devices.

3. No Recycled Cells

Guaranteed use of brand-new Grade A 18650 cells (3.7V, 2600mAh each); no salvaged or refurbished batteries are used, ensuring optimal cycle life and safety. High-capacity versions (5000mAh or 5200mAh) are also available.

4. Comprehensive Safety Protections

· Resettable Thermal Protection: Each output channel is equipped with an independent thermal fuse; operation resumes automatically after cooling down following an overload.

· Overcharge/Over-discharge Protection: An intelligent CPU management chip precisely controls charging and discharging voltages.

· Short-Circuit Protection: Instantly cuts power upon detecting output abnormalities and automatically resumes operation once the fault is cleared.

5. Wide-Voltage Charging Input

Supports 11.5V–19V DC input and is compatible with most 12V–15V power adapters on the market, making upgrades and replacements convenient.

6. Status at a Glance

Blue LED charging indicator and SMT battery level indicators allow for real-time monitoring of remaining battery capacity and charging status.

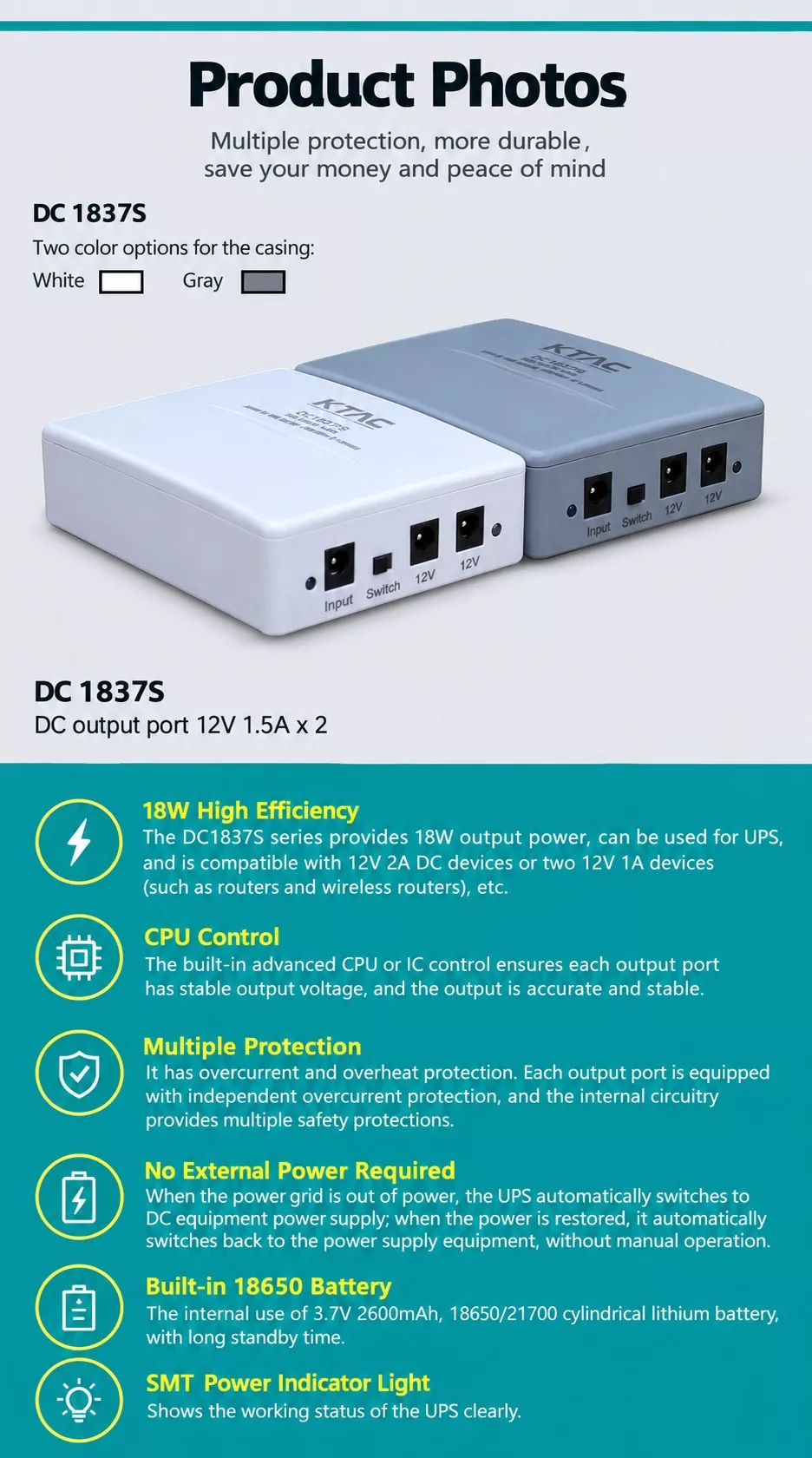

Product Parameter

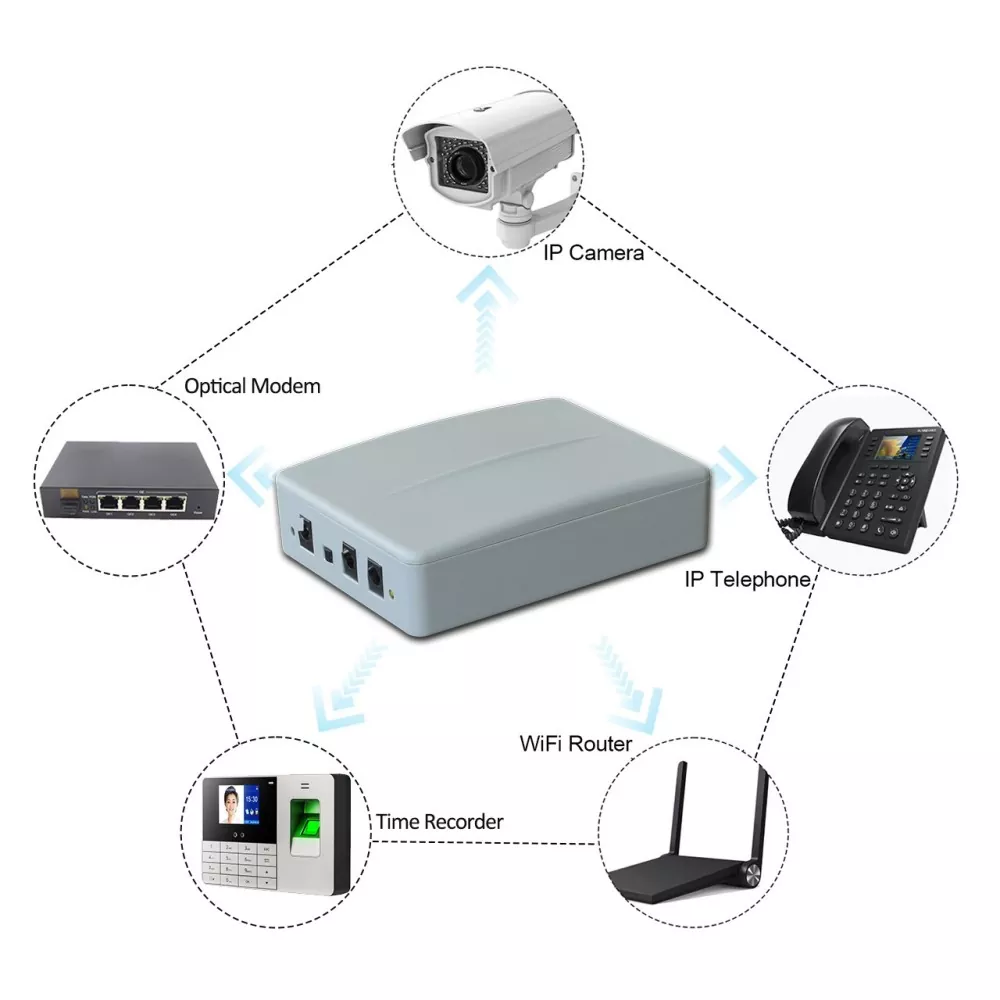

Product Applications

1. Home Network Protection: Provides uninterrupted power to optical modems, wireless routers, and network switches, preventing internet outages during power failures.

2. Security & Surveillance Systems: Ensures continuous recording for 12V DC cameras and digital video recorders (DVR/NVR) during power outages.

3. Small-Scale Access Control & Time Attendance Systems: Prevents access control failure or loss of attendance data caused by power outages.

4. IoT Sensor Nodes: Supplies stable power to environmental sensors, PoE splitters, and other devices located outdoors or in low-voltage enclosures.

5. Temporary Backup Power: Serves as a backup power source for 12V lighting, portable radios, and small instruments or meters. Customization Services

KTAC supports OEM/ODM services, including:

· Bulk customization of housing color

· Battery capacity customization (5000mAh/5200mAh)

· Adjustment of output cables and connector types

· Silk-screen logo printing and packaging design

Please contact our sales team for detailed proposals.

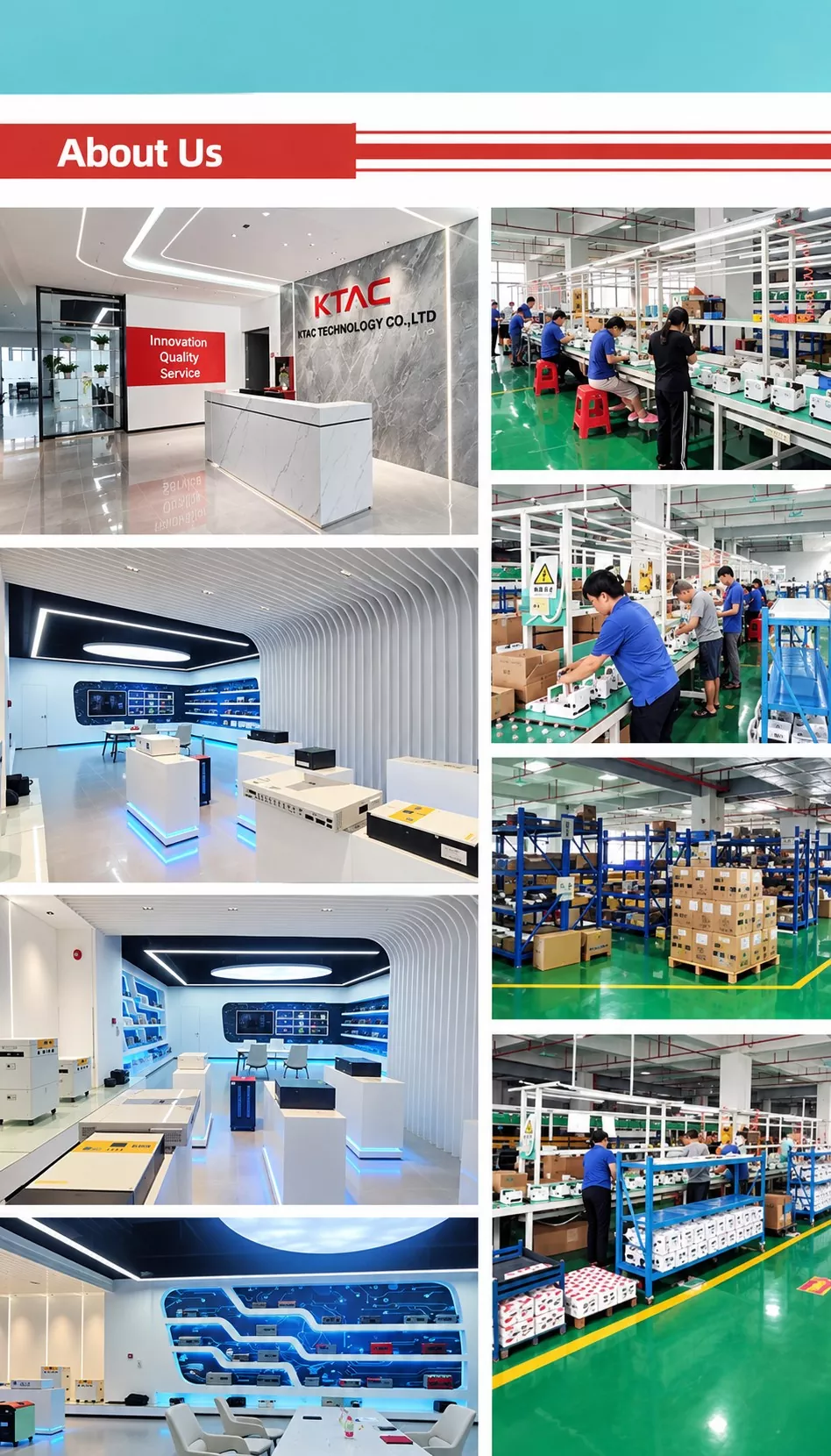

Why Choose KTAC for Mini UPS?

5 Years of Mini UPS Experience: Dedicated design and production since 2020

Customization Ready: Housing colors, battery capacities, cable types, and logo printing all available

Global Exports: Supplied to distributors and OEM partners across Europe, Southeast Asia, and the Americas

100% Pre-Shipment Testing: Every unit is fully charged, discharged, and function-tested before packing

FAQ

1. Can the DC1837S power two devices simultaneously?

Yes. Both output ports provide independent, regulated 12V power, provided the total power consumption does not exceed 18W (e.g., one 12V/1A router + one 12V/0.8A optical modem).

2. What happens if the power outage lasts longer than the backup time?

Once the battery discharges to the protection voltage, the UPS automatically cuts off the output to prevent over-discharge. When mains power is restored, the device automatically recharges and resumes power output without manual intervention.

3. Can the internal battery be replaced?

The 18W Mini DC UPS features a sealed, non-serviceable design; user replacement is not recommended. If battery degradation occurs, please contact after-sales support or have a professional replace the cells with identical 18650 specifications.

4. Can it be used with 9V or 5V devices?

This unit outputs a fixed 12V; if other voltages are required, please use a DC-DC step-down module.
