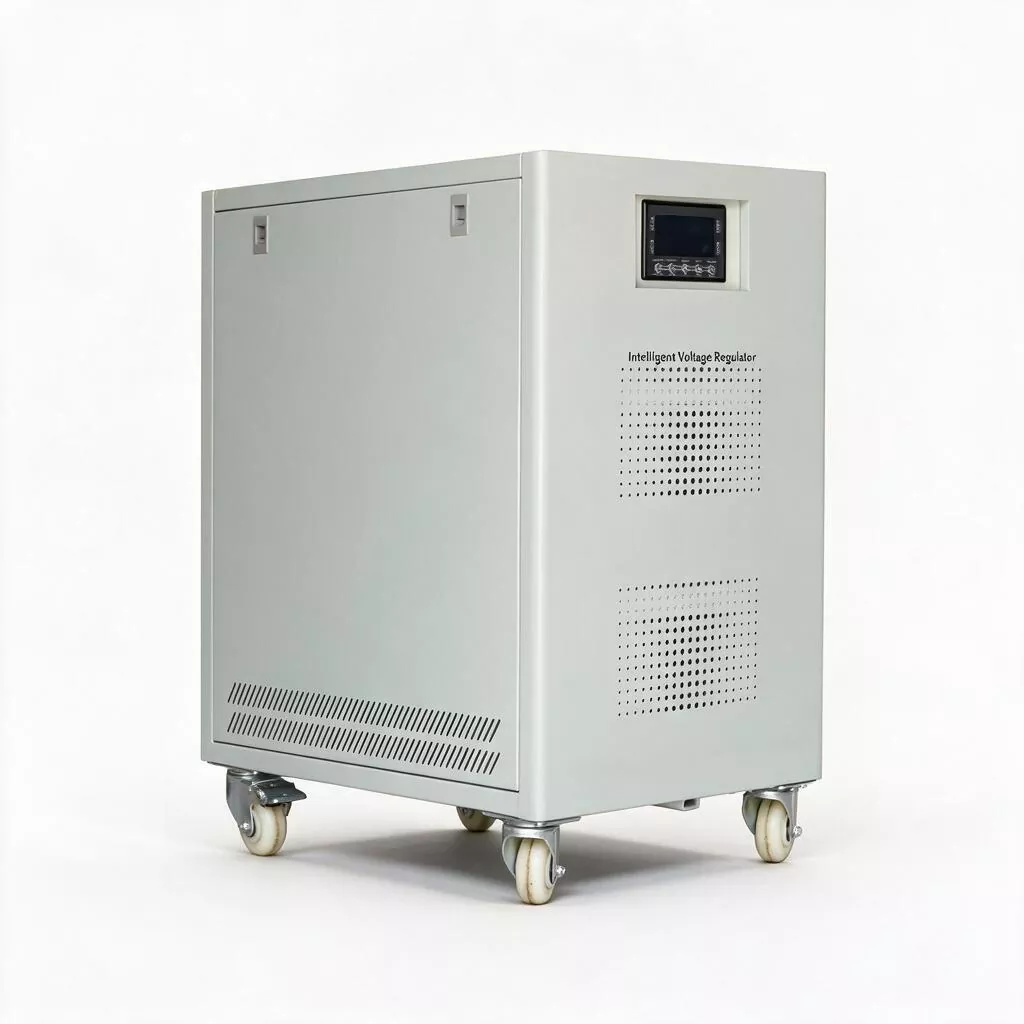

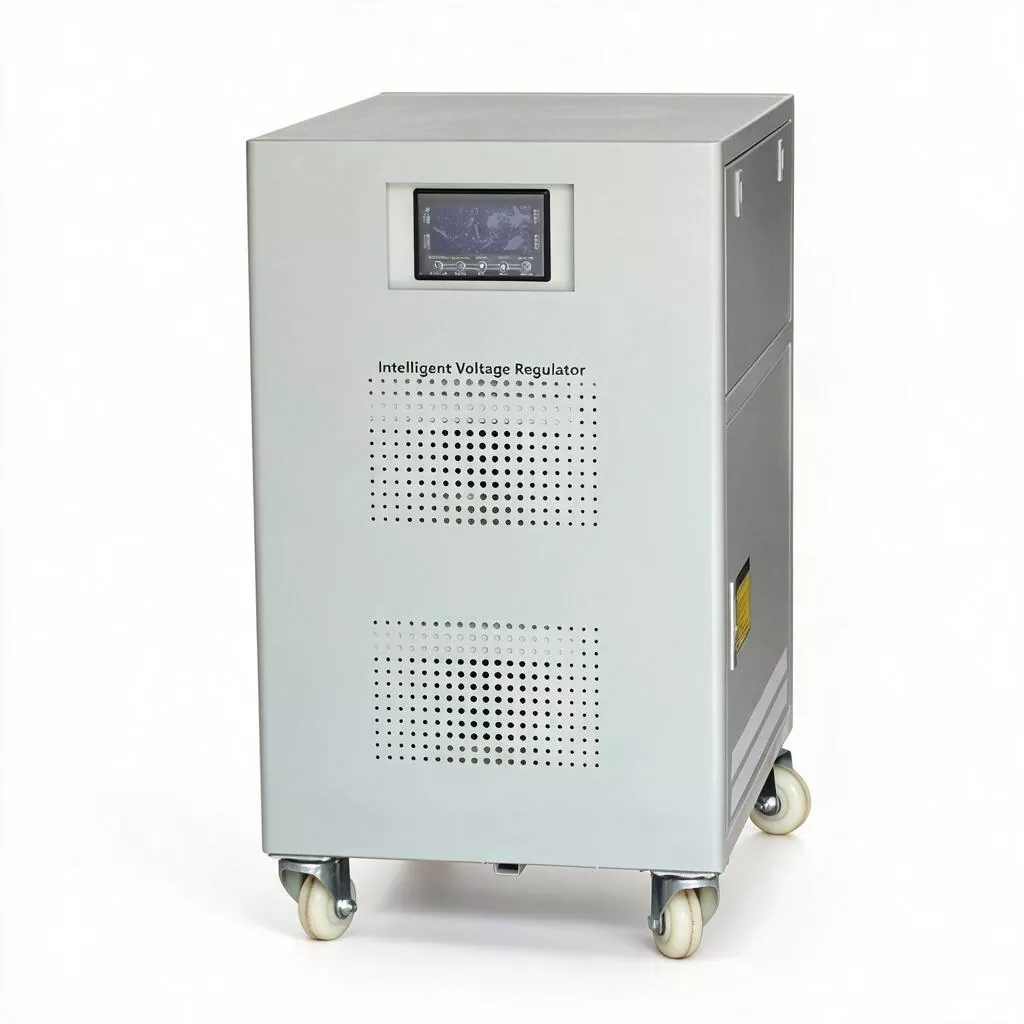

3 Phase 10kVA Servo Motor AVR

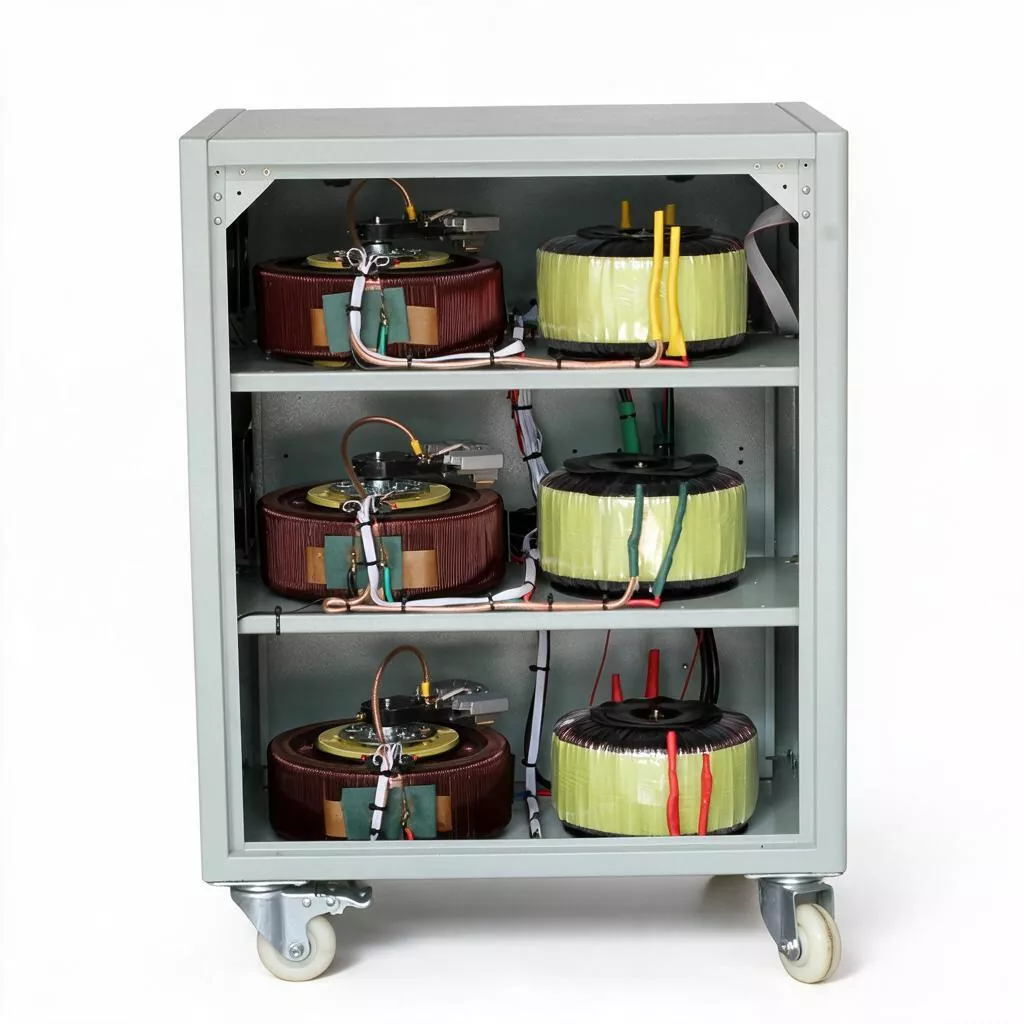

The 3 Phase 10KVA Servo Motor AVR is a mature AC voltage stabilization product composed of key components such as a columnar contact voltage regulator, sampling circuit, protection circuit, control circuit, low-speed synchronous motor mechanism, and compensation transformer.

When fluctuations occur due to unstable mains voltage or changes in user load, the sampling circuit processes the voltage signal and sends it to the synchronous motor. This drives the carbon brush of the columnar contact voltage regulator to move up or down, automatically adjusting the coil turn ratio to ensure a stable output voltage.

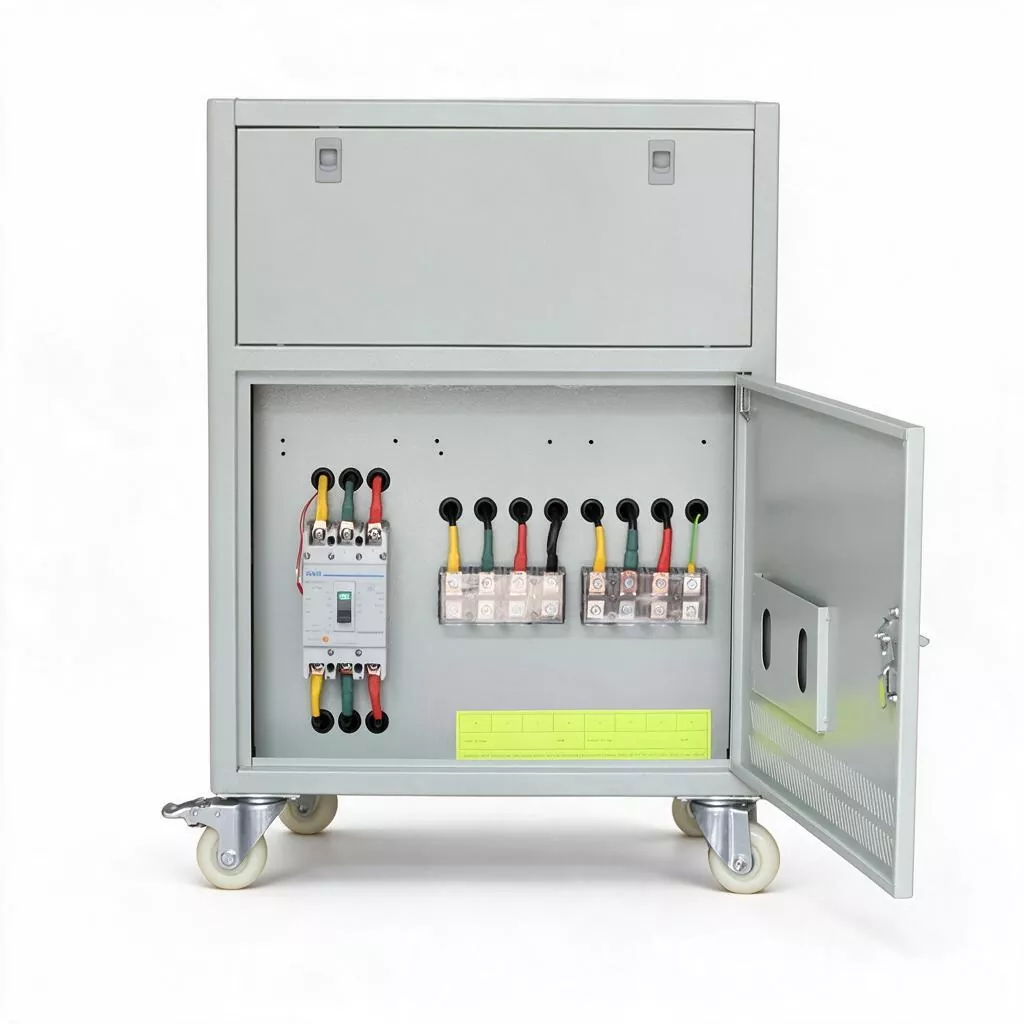

As the entry-level model in the SBW series, the SBW-10kVA features a rated capacity of 10kVA and utilizes a three-phase four-wire connection (Phases A, B, and C + Neutral + Ground). It supports dual-frequency operation (50/60Hz), making it compatible with power grid standards across different global regions.

Its independent three-phase regulation capability ensures automatic output balance across phases, effectively handling scenarios involving unbalanced three-phase loads.

Product Parameter

Key Features

1. High Voltage Regulation Precision

The SBW-10kVA stabilizer offers an output voltage precision of ±3%, providing a stable power supply for precision equipment and critical loads. It features rapid response times, with a voltage adjustment speed of less than 1 second in response to input voltage fluctuations.

2. High Efficiency and Low Loss

The product boasts an efficiency of ≥96% and low energy loss, resulting in significant energy savings. The output waveform distortion rate is less than 0.1%; it generates no additional harmonics and causes no distortion to the power grid. 3. Wide Input Voltage Range

The input voltage range is 380V/400V/415V ±20% (wider ranges available upon request), making it suitable for environments with poor power grid quality and significant voltage fluctuations.

4. Protection Functions

Equipped with multiple protection mechanisms, including overload, over-voltage, under-voltage, short-circuit, over-temperature, and phase-loss protection, as well as a bypass function. These features ensure the safe operation of both the voltage stabilizer and the connected load equipment.

5. Intelligent Display and Convenient Operation

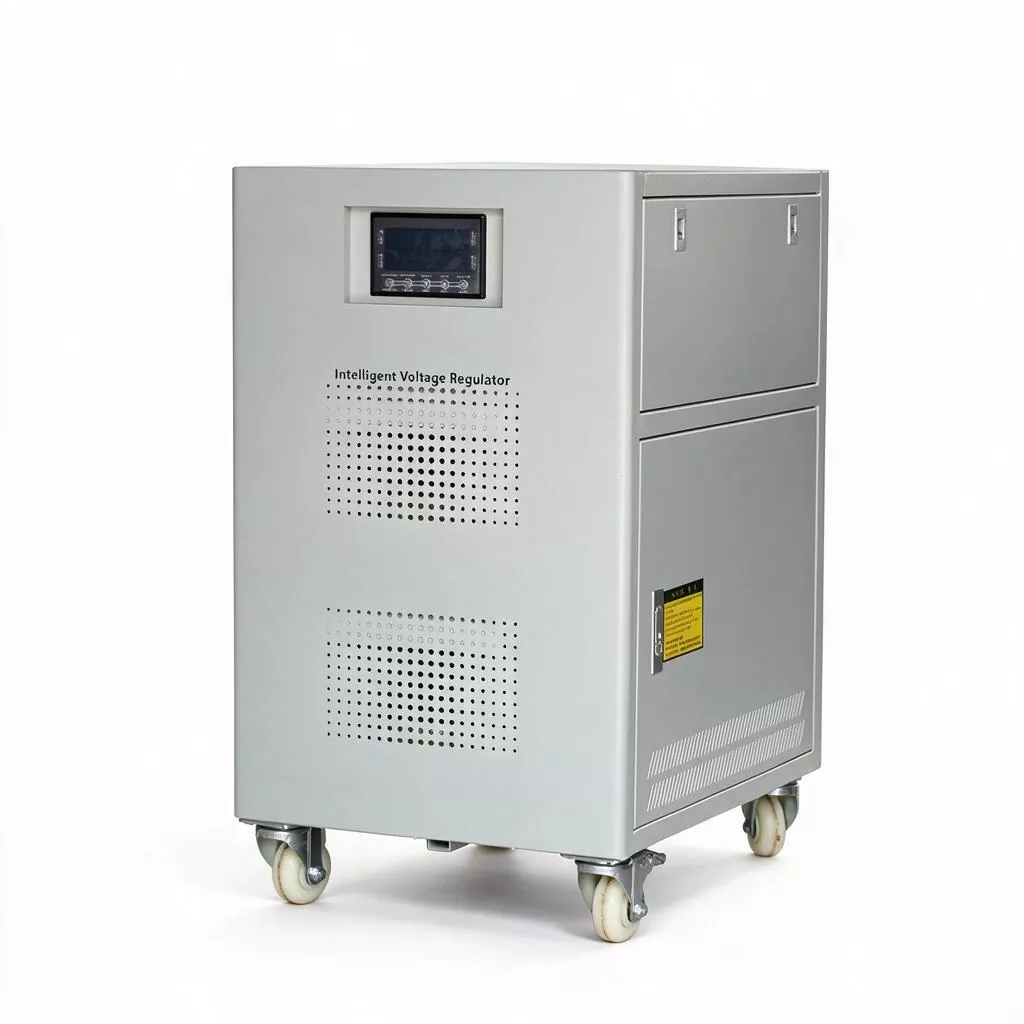

Features a digital LED display for clear, accurate, real-time monitoring of phase voltages. 3 Phase 10KVA Servo Motor AVR supports dual-mode control (manual/automatic), allowing users to switch flexibly based on actual needs.

6. Wide Range of Applications

Suitable for resistive, capacitive, and inductive loads; capable of withstanding momentary overloads and continuous long-term operation. Compatible with various power sources, including thermal power, hydropower, and small generators.

Product Applications

1. Industrial Production: Widely used for voltage stabilization in manufacturing equipment such as production lines, precision machine tools, laser equipment, and industrial robots across industrial and mining enterprises.

2. Transportation: Suitable for voltage stabilization in transportation infrastructure, including railway systems, elevator equipment, and highway toll systems.

3. Medical Facilities: Provides stable and reliable power for medical equipment and precision instruments in hospitals and healthcare institutions.

4. Commercial & Communications: Suitable for voltage stabilization in telecom base stations, postal/telecom systems, data centers, commercial lighting, and other communication or commercial venues.

5. Construction & Engineering: Suitable for construction sites, oil fields, field operations, and other locations requiring temporary power or experiencing significant voltage fluctuations.

6. Scientific Research & Education: Suitable for providing stabilized power to precision instruments and experimental apparatus in schools and research institutes.

Customization Services

KTAC supports OEM/ODM services, including customization of housing color, packaging, input/output voltage ranges, and special function modules (e.g., EMI filters, lightning protection devices, RS232/RS485 monitoring interfaces). Please contact us for a customized solution.

FAQ

1. What types of loads is the SBW-10KVA voltage stabilizer suitable for?

The SBW series voltage stabilizer is suitable for resistive, capacitive, and inductive loads; it can withstand momentary overloads and is designed for continuous, long-term operation. It is particularly well-suited for applications requiring high power quality and stable voltage waveforms.

2. What are the product's voltage regulation accuracy and response speed?

The SBW-10KVA offers an output voltage accuracy of ±3%. It adjusts the voltage in less than one second in response to a 10% fluctuation in input voltage. Its rapid response enables it to effectively handle grid fluctuations and load variations.

3. What protection features does the product offer?

The 3 Phase 10KVA Servo Motor AVR is equipped with comprehensive protection functions, including overload, over-voltage, under-voltage, short-circuit, and over-temperature protection, as well as phase-loss protection and a bypass function. In the event of an anomaly, it can promptly cut off the output to safeguard downstream load equipment.

4. Under what environmental conditions can the product operate?

The SBW-10KVA operates within a temperature range of -5°C to 40°C and a relative humidity of less than 90%, making it suitable for use in various climatic conditions.

5. Is customization available?

Yes, OEM/ODM customization services are available. Input/output voltage ranges, exterior colors, and packaging methods can be tailored to customer requirements. Optional functional modules—such as EMI filters, lightning protection devices, and RS232/RS485 monitoring interfaces—are also available.
