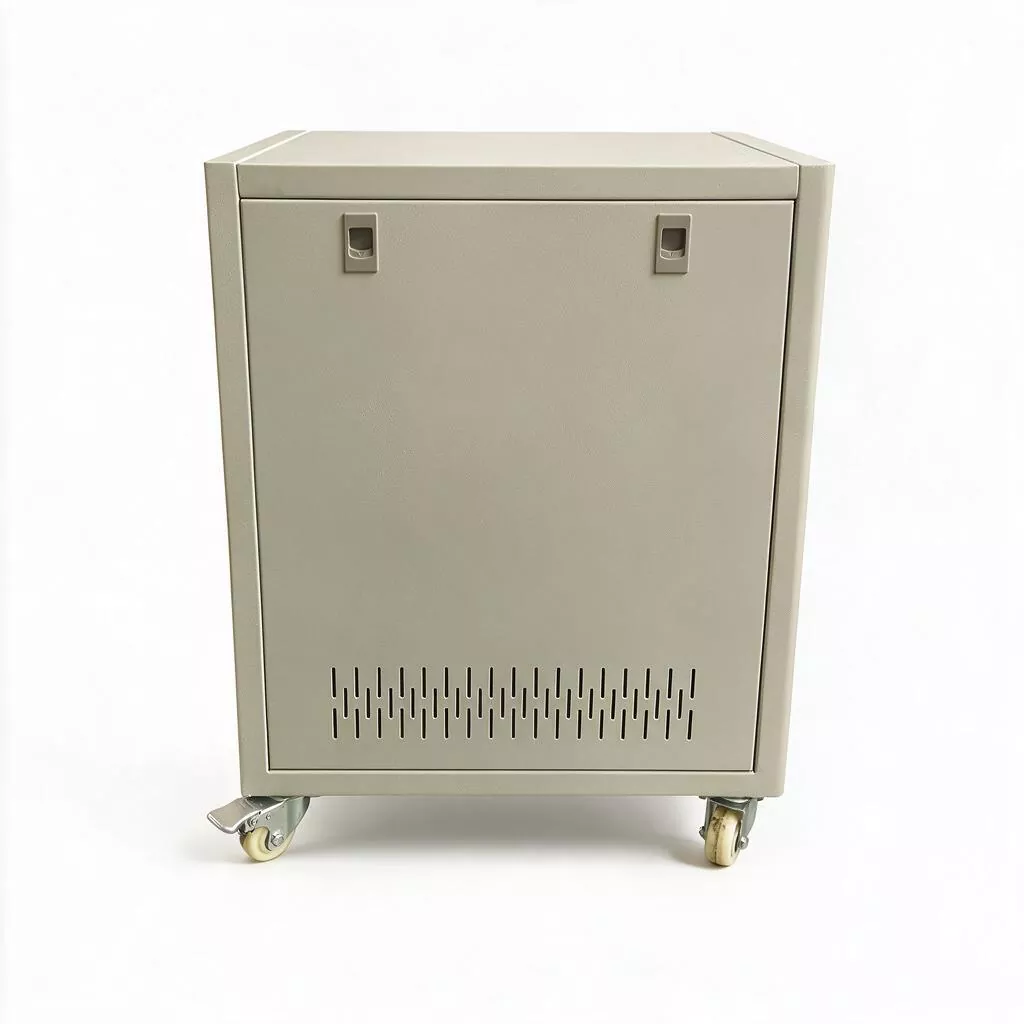

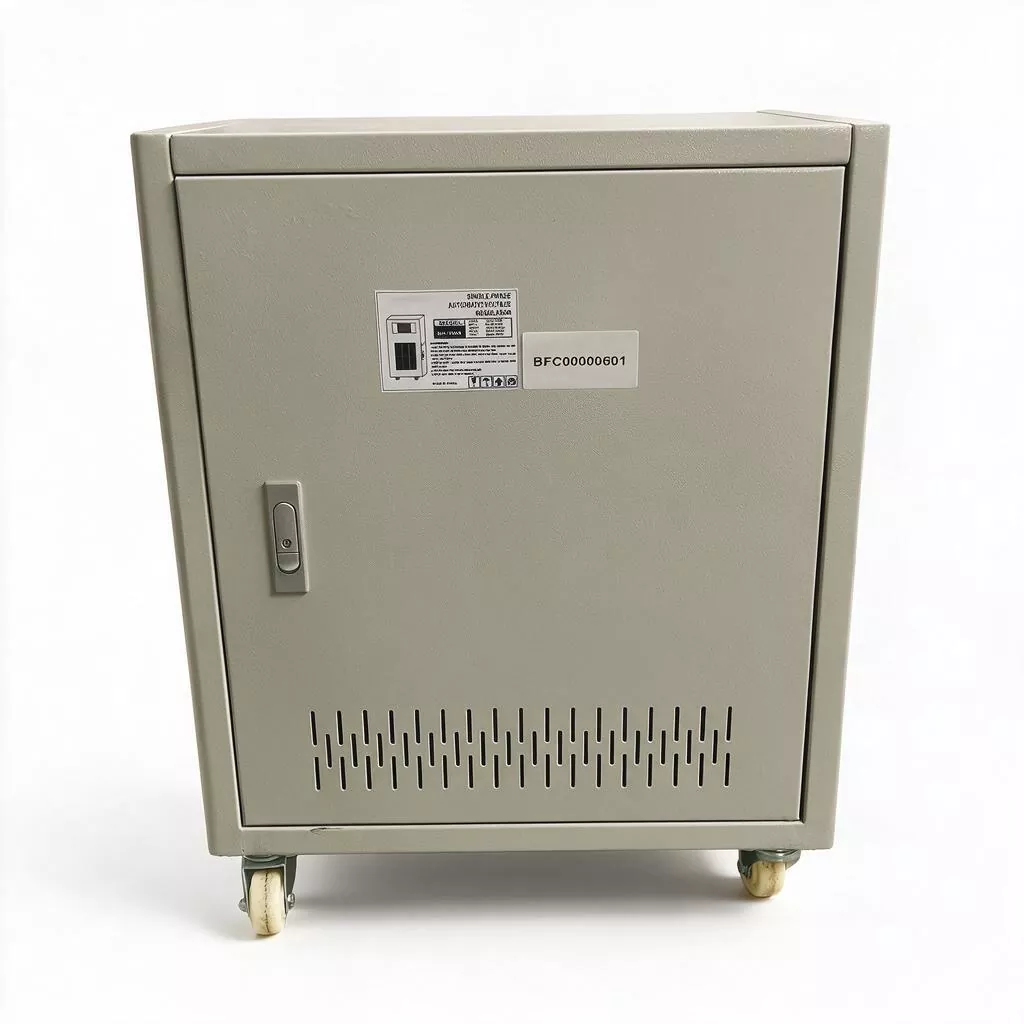

15kVA Servo Motor AVR

The 15KVA Servo Motor AVR is a high-precision automatic voltage stabilizer designed for environments where power quality directly impacts operational outcomes. Built around a servo motor transformer and carbon brush regulation system, the unit's CPU-controlled circuit board continuously monitors input voltage and precisely adjusts the carbon brush position to maintain stable output. The result is a stable 220V±3% output even when input voltage fluctuates between 80V and 260V.

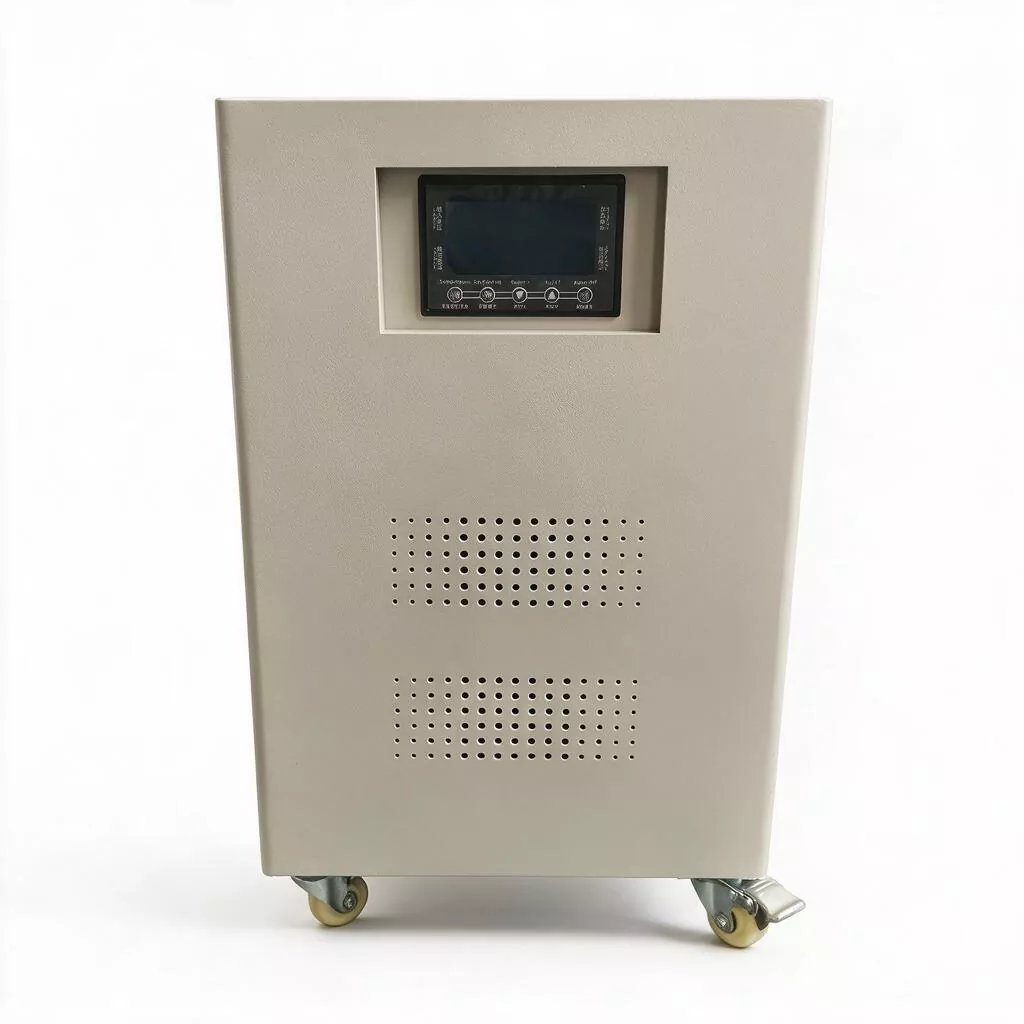

With a Grade A isolation transformer rated at AC 2000V/1min dielectric strength, the SVC-15KVA provides exceptional electrical safety. The unit's near-zero waveform distortion (<0.1%) ensures that sensitive electronic equipment receives power free from harmful harmonics. The intelligent cooling fan maintains optimal operating temperatures, while the LCD display provides real-time system status visibility.

Core Advantages

1. Exceptional Power Quality for Sensitive Equipment

With waveform distortion below 0.1% and no incremental harmonics, the SVC-15KVA delivers power that meets the stringent requirements of medical diagnostic equipment, precision testing instruments, and communication systems. This clean power ensures accurate readings, reliable diagnoses, and uninterrupted communications.

2. High Precision Output (±3%)

The servo motor mechanism provides continuous, stepless voltage adjustment, achieving ±3% output precision. This level of accuracy is essential for equipment that cannot tolerate voltage variations, such as MRI machines, CT scanners, and laboratory analyzers.

3. Ultra-Wide Input Range (140-260V)

The SVC 15KVA Servo Motor AVR accepts input voltages from 80V to 260V, making it suitable for regions with unstable grid power. This wide range ensures that your critical equipment remains protected even during severe grid fluctuations.

4. Rapid Response (0.1s)

With a response speed of just 0.1 seconds, the unit reacts instantly to voltage changes, preventing even momentary voltage sags or surges from affecting connected equipment.

5. Comprehensive Protection with Grade A Isolation

The unit features overload, over-voltage, under-voltage, short-circuit, and overheat protection. The Grade A isolation transformer provides AC 2000V/1min dielectric strength, ensuring no flashover or breakdown.

6. Intelligent Thermal Management

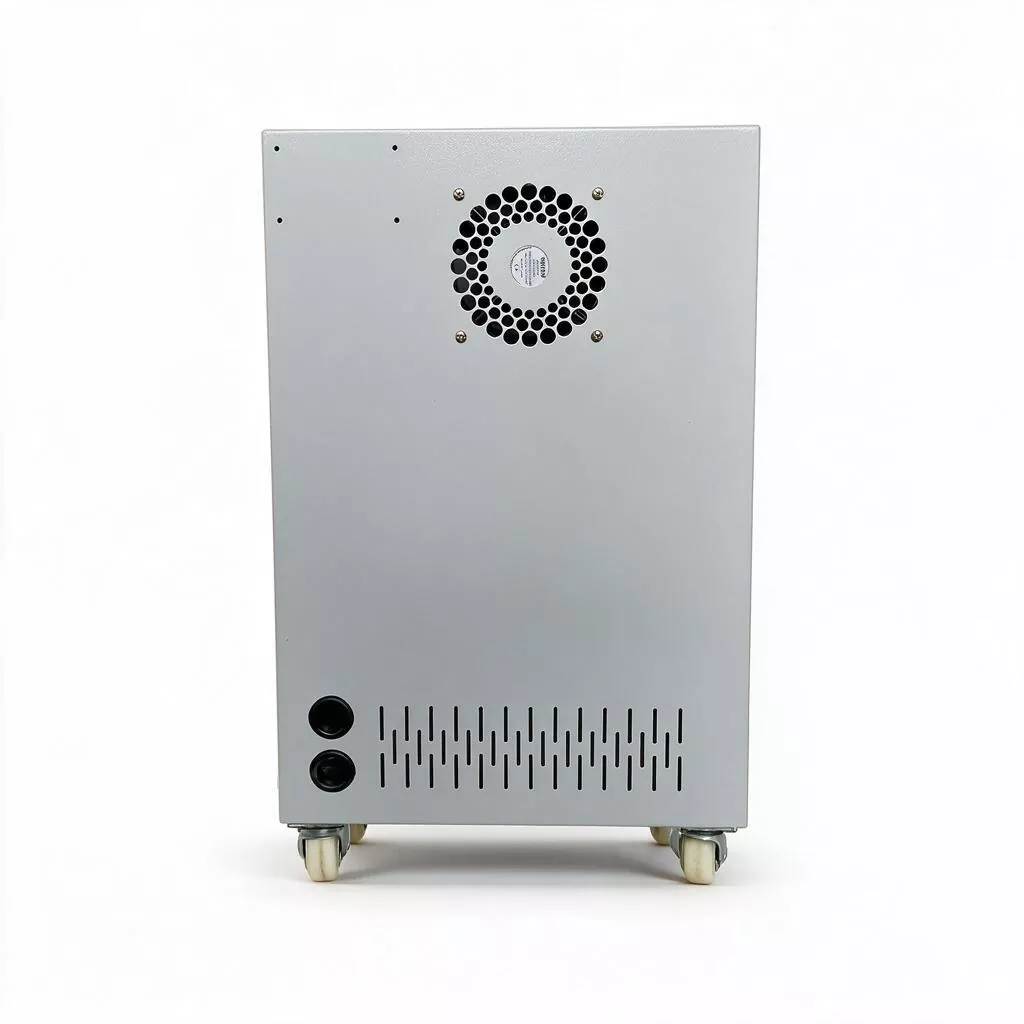

The built-in temperature sensor monitors transformer coil temperature and activates the cooling fan when needed. The net temperature rise is kept below 60°C, ensuring long-term reliability even under continuous operation.

Product Parameter

Key Application Scenarios

1. Medical Facilities

Protect diagnostic imaging equipment (X-ray, CT, MRI), patient monitoring systems, laboratory analyzers, and life-support equipment from voltage fluctuations that could compromise patient safety or diagnostic accuracy.

2. Testing and Calibration Laboratories

Ensure precise, repeatable results by providing stable power to oscilloscopes, spectrometers, chromatographs, and other precision instruments.

3. Communication Infrastructure

Stabilize voltage for telecom base stations, data centres, and network equipment, preventing communication disruptions caused by power anomalies.

4. Industrial Automation

Protect PLCs, HMIs, servo drives, and other automated control equipment from voltage-related failures that could halt production lines.

5. Audio/Video Production Studios

Ensure clean, noise-free power for recording, broadcasting, and post-production equipment.

Why Choose the SVC-10KVA?

The SVC-15KVA offers 50% more capacity than the 10KVA model, providing the additional power headroom that medical, testing, and communication facilities require. Its combination of high precision, rapid response, and exceptional power quality makes 15KVA Servo Motor AVR the preferred choice for environments where power stability is critical to operations. At 55kg and 500×380×620mm, it delivers substantial power in a manageable form factor.

Customization Services

KTAC TECHNOLOGY supports OEM/ODM services including custom input/output voltage ranges, branding, and packaging design. Contact us for detailed solutions.

FAQ

1. Is the SVC 15KVA Servo Motor AVR suitable for medical equipment?

Yes. The SVC-15KVA's <0.1% waveform distortion, ±3% precision, and rapid 0.1s response make it ideal for medical diagnostic and monitoring equipment.

2. What is the difference between the 10KVA and 15KVA models?

The 15KVA model offers 50% more capacity (15,000VA vs 10,000VA) and weighs 55kg vs 44kg, with the same dimensions.

3. Does the unit have surge protection?

Yes, the SVC-15KVA provides comprehensive protection including surge suppression, overload, over-voltage, under-voltage, short-circuit, and overheat protection.

4. Can it be used in continuous operation?

Yes, the unit is designed for continuous operation with intelligent cooling and temperature rise kept below 60°C net.
