1000VA Line Interactive UPS

The 1000VA Line Interactive UPS is designed for users who require both higher capacity and longer runtime. With dual batteries, it offers nearly double the backup energy of single‑battery models, making it suitable for powering three to four desktop computers, networking equipment, and external storage devices simultaneously. The CPU‑controlled integrated power board ensures stable output, while the laminated power transformer – made of brand‑new silicon steel and high‑quality winding – guarantees high efficiency and robust power capability. The unit also features an optional communication port (RS232/USB/RJ45) for advanced power management and remote monitoring.

Core Advantages：

1. Dual‑Battery Configuration for Extended Runtime

Two 12V/7Ah batteries connected in series provide 24V nominal battery voltage, significantly increasing stored energy. This translates to longer backup times – up to 15‑20 minutes at half load – allowing you to complete critical tasks without rushing.

2. High‑Efficiency Laminated Transformer

The EI‑type transformer, constructed from premium silicon steel and copper windings, minimises losses and delivers stable power even under heavy loads. This design ensures low heat generation and long operational life.

3. Comprehensive Load Protection

With 600W capacity, the AK‑1000VA can support multiple monitors, a powerful workstation, a NAS, and a network switch all at once. Its overload protection kicks in automatically to prevent damage from excessive loads.

4. Flexible Monitoring and Control

Optional RS232, USB, or RJ45 communication ports allow integration with UPS management software, enabling automatic shutdown of connected devices during extended outages – preventing data loss and system corruption.

Key Features

1. Small Office Workstations – Protect two desktop PCs, monitors, and shared printers.

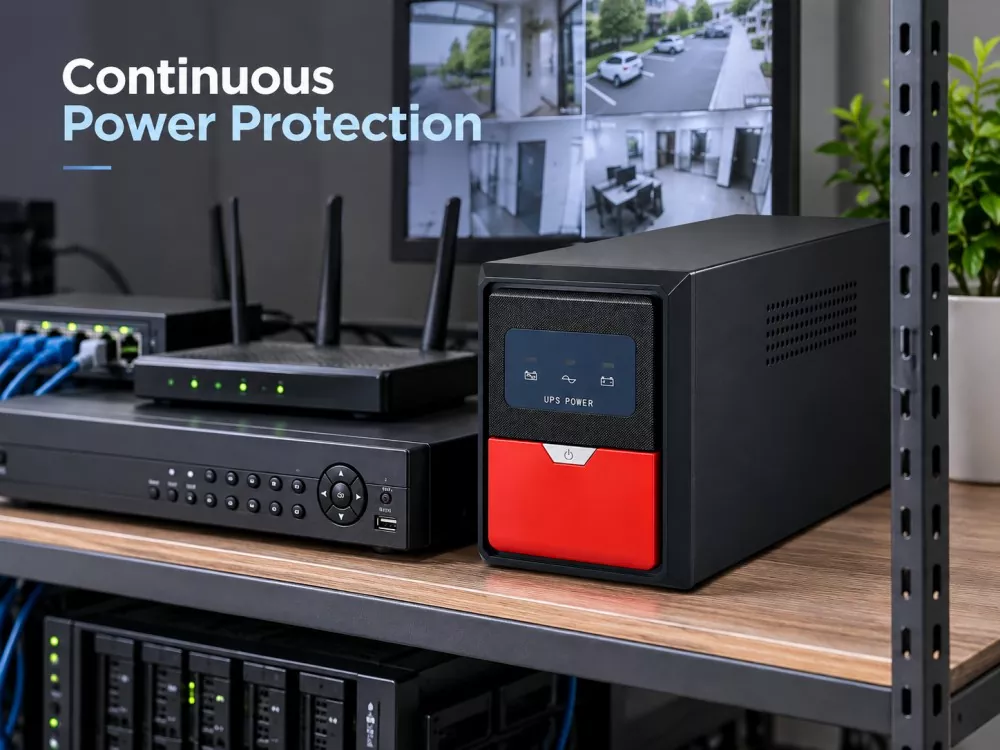

2. Network Hubs – Keep routers, switches, and NAS devices online during brief outages.

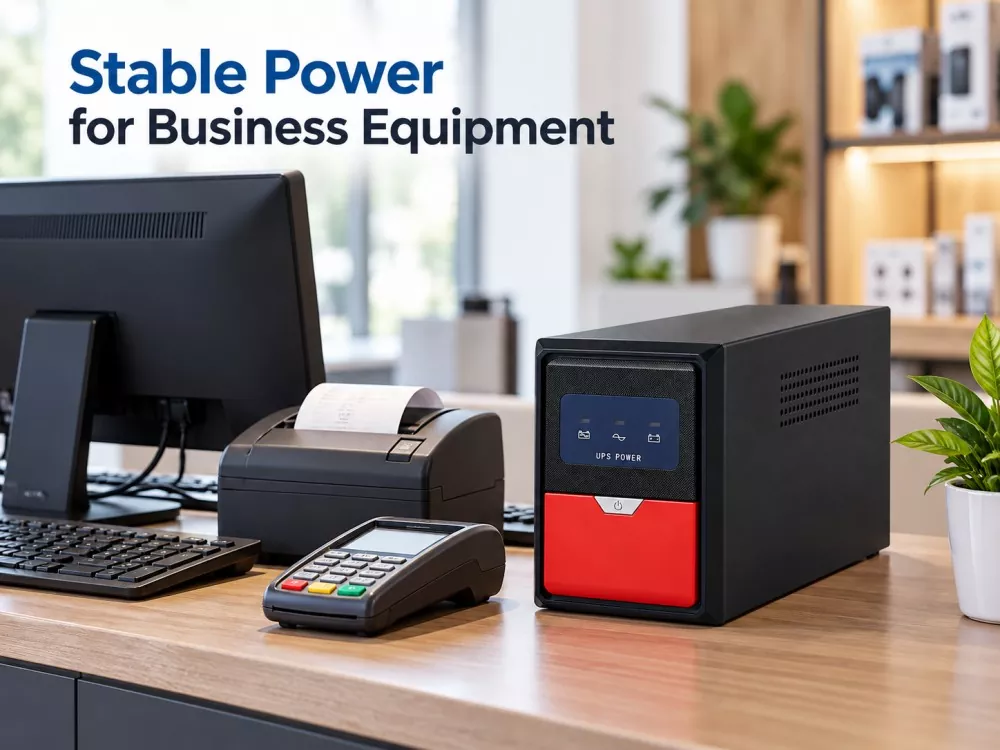

3. Retail Checkout Counters – Ensure POS terminals and barcode scanners remain powered to avoid sales disruption.

4. Security Systems – Maintain CCTV cameras and DVRs recording during power dips.

Product Parameter

Why Choose the AK‑1000VA?

The AK‑1000VA is the first model in the AK series to feature dual batteries, making it the go‑to choice for users who need both higher power and longer runtime. Its balanced performance and moderate footprint make it the most popular model for small to medium‑sized businesses.

Customization Services

KTAC TECHNOLOGY supports OEM/ODM services including logo printing, custom packaging, and optional communication ports (RS232, USB, or RJ45). Contact us to tailor the AK‑500VA to your brand requirements.

Our Commitment

·20+ years of continuous power supply manufacturing (since 2004)

·3 factories, 8,000+ m² production floor

·100+ professional staff including QA and after‑sales engineers

·Exported to 30+ countries worldwide

·Trusted by Tier‑1 distributors in Southeast Asia, Africa, and Europe

FAQ

1. Can the AK‑1000VA support a server with redundant power supplies?

Yes, as long as total power draw stays under 600W. It is suitable for tower servers and small rack‑mount systems.

2. How long does it take to recharge after a full discharge?

Typically 8 hours to reach 90% capacity. The smart charger prevents overcharging and extends battery life.

3. What communication options are available?

Standard models come with no communication port, but optional RS232, USB, or RJ45 with management software can be added – please specify at order.
